AC Power Cord > Power Cord > Europe Power Cords > European CEE7/7 Non-rewirable Moulded 2-pole Plug Schuko Power Cord
European-CEE7/7-Non-rewirable-Moulded-2-pole-Plug-Schuko-Power-Cord
  • European CEE7/7 Non-rewirable Moulded 2-pole Plug Schuko Power Cord

  • Europe CEE7/7 Schuko power cord Plug, with earthing contact, non-rewirable, moulded 2-pole with dual earthing contact system VDE certification Rated up to 16A 250V designed for 3 conductor household applications power supply cables,With IEC C5 With IEC C13 , With IEC C15 With IEC C19describe German plug molded with IEC 60320 connectors Our Europe VDE power cord products are made with high quality and RoHS / REACH compliant.

  • Contact Us
Detailed description
Connector Standard Europe CEE7/7 Schuko Plug
Maximum Current rating 16A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flamability Rating 94V-0
Color Custom color available
Cable length Custom length available
Temperature Rating minus 40C though plus 75C
Approvals Europe VDE,KEMA,OVE,N,S,FI,D,CEBEC
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 2000pcs
Samples Free samples Available


Other Termination Options:


Click Here


Available Cable Styles:


H03VV-F 3X0.75(MAX 2M)

H05VV-F 3×0.75-1.5

H03RT-F 3×0.75-1.5

H05RN-F 3×0.75-1.0

H05RR-F 3×0.75-1.5

H07RN-F 3×1.0-1.5


Available Opposite End Connectors:


Standard                                    Part NO


IEC 60320 C13                         ST3(IEC C13)Europe


IEC 60320  C5                         ST1(IEC C5)Europe


CEE 7/7 receptacle                 Y003-Z(CEE 7/7)Europe


IEC C13(rihgt angle)               ST3W(IEC C13)Europe


IEC 60320 C15                      ST3H(IEC C15)Europe


IEC 60320 C19                       XH008A(IEC C19)Europe


More Information:


JT003 specification                          SCHUKO 3P Plug(riht angle) to IEC C13 drawing(JPG)

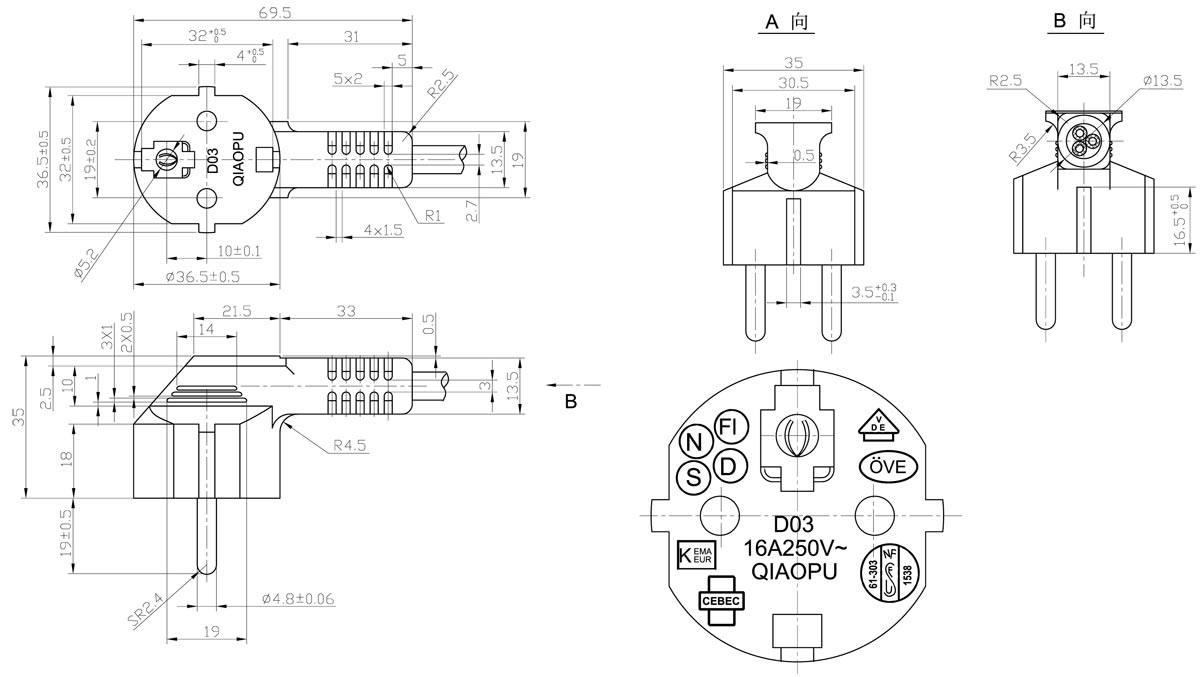

European CEE7/7 Plug Drawing


CEE7/7 Schuko Europe power supply cord Drawing



Europe Power Cord CEE7/7 Images

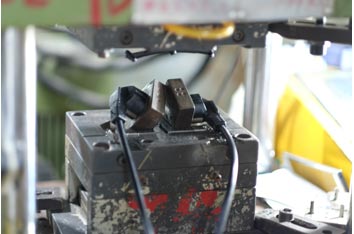

Power Supply Cord European Schuko CEE7-7 German Plug MoldingEuropean Schuko CEE7-7 German Plug

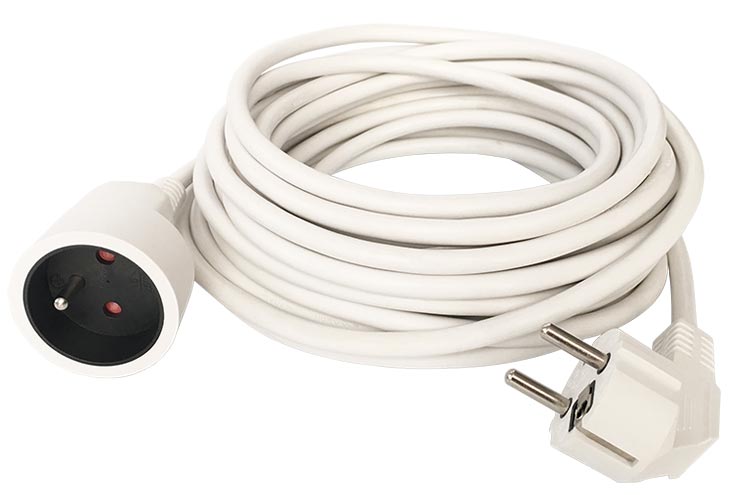

Schuko Plug with French type NF Socket Extension Cord Set


Extension Cord CEE7/7 German Schuko Plug IP20 White

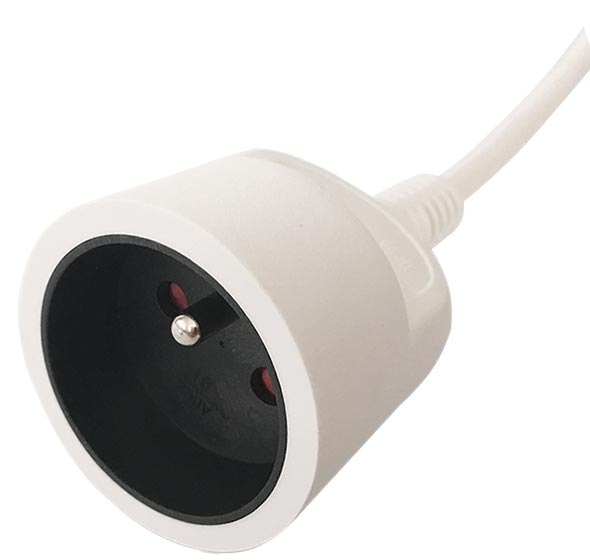

European Extension Cord French Socket White

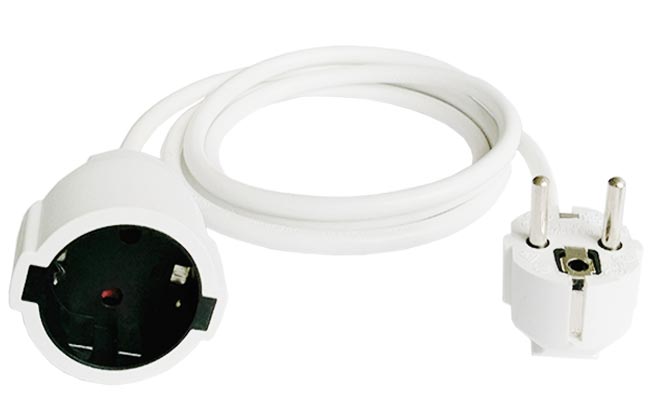

Schuko Plug wiht German Socket Extension Cord Set

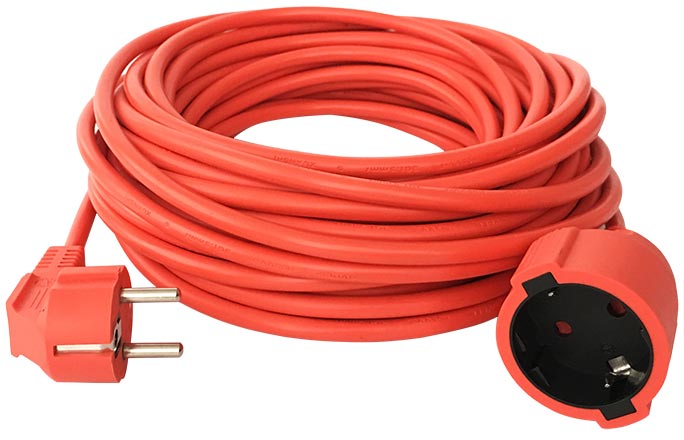

Extension Cord CEE7/7 German Schuko Plug IP20 Orange


Extension Cord CEE7/7 German Schuko Plug IP20 White

Extension Cord European Schuko Plug CEE7-7

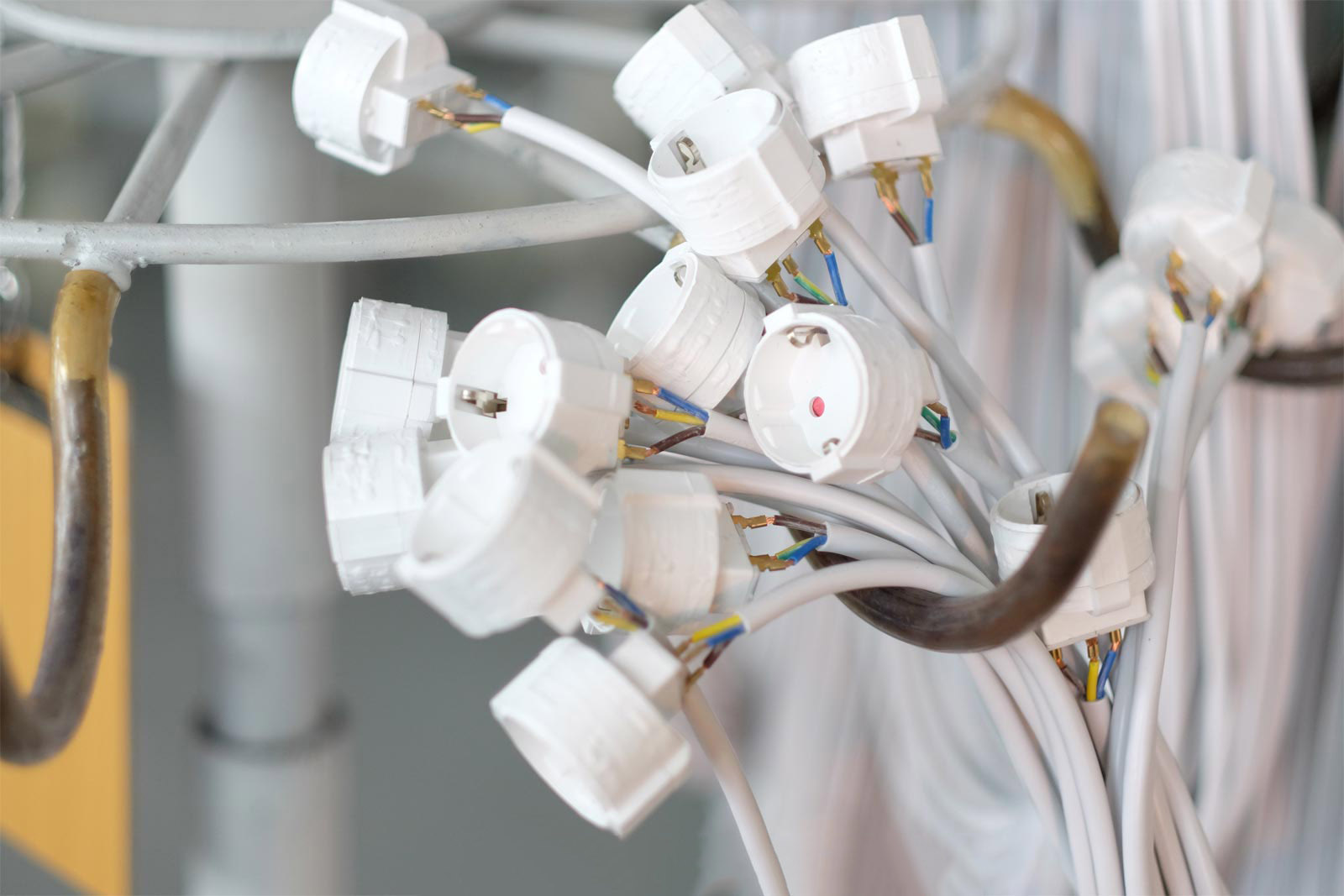

Extension Cord European German Socket

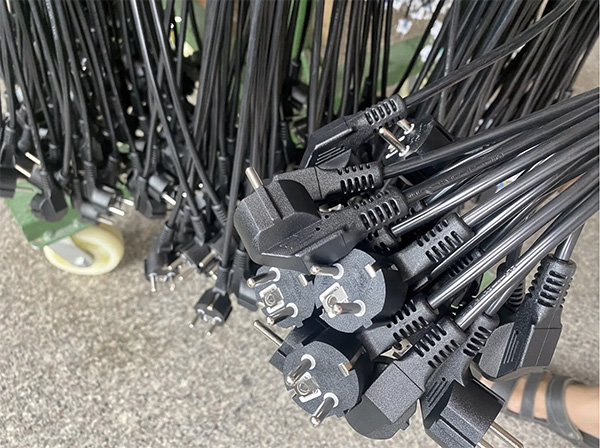

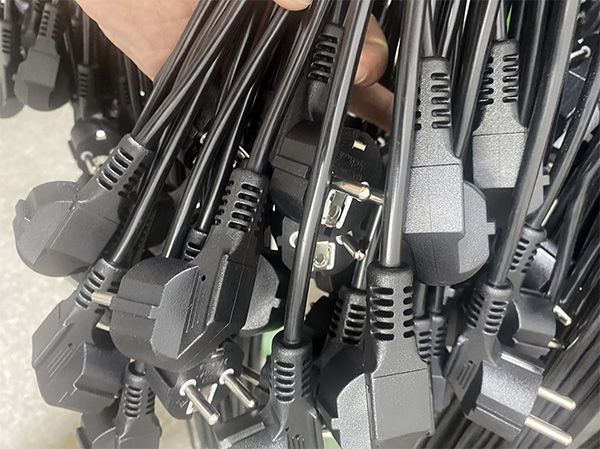

Europe Power Cord 16A 3 Wire CEE 7/7 Schuko Angle Plug EU Germany VDE Certified CE AC Power Cable

Schuko Power Cord Angle Plug AC Power Cable Custom long, Color

Plug type: Schuko angle plug grounding
Standard: CEE7 standard sheet 7-7
Approvals:VDE,CEBEC,DEMKO,
F1,IMQVDE,KEMA,NF,OVE,SEMKO
Electricity:16A,250V
Number of Poles and Wires:2 poles 3 wires earthed
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:ROJ, Termination, IEC 320 C5, C13,C15,C19
Quality System: ISO9001:2008
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number: D03, JT003, FH-03
The EU German type Europlug with electrical rates 16 A, voltage 220V, according to the CEE7/7(Schuko plug) and IEC884-1 standard production, Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5,  C-15, Unterminated, European CE, VDE (European 16 A/ 250 V) and compatible types (Type E, F), connected with a 3-wire grounded angle plug rated at 16 Amp, 250 V defined by CEE 7/7. The Europe AC plugs and Sockets are used in most European countries are the most popular power plugs types.
Europe Schuko power cord angle plug is black and white as the standard color. gray and custom colors are available. Custom length and shielded Europe AC power cord, Europe AC power cables available. Terminated, custom stripping.
European Schuko Plug CE Power Cord

Europe Schuko Plug CE 16A AC Power Cord

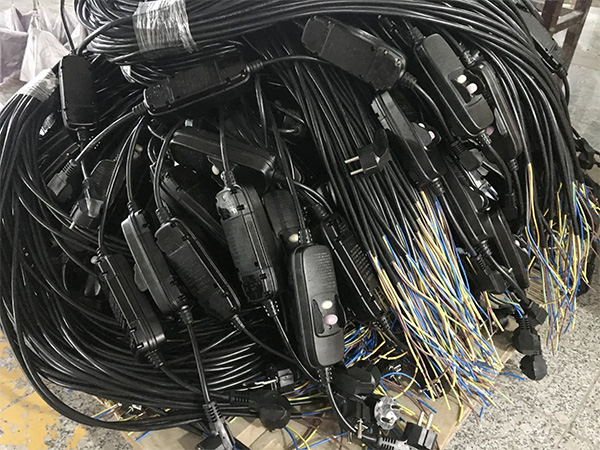

EU Type German Schuko Plug Inline GFCi Custom Length AC Power Cable

EU Type German Schuko Plug Inline GFCi Custom Length AC Power Cable

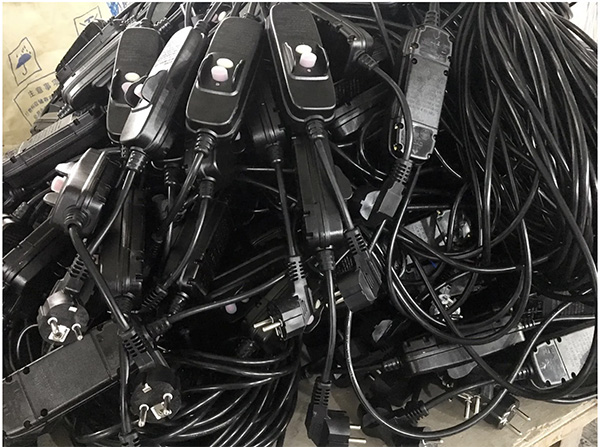

European Power Cord CEE Schuko Plug Inline GFCI AC Power Supply Cords

European Power Cord CEE Schuko Plug Inline GFCI AC Power Supply Cords

The European German standard VDE certified maximum current 16A, voltage 220V, according to the German SCHUKO CEE7/7  and IEC884-1 standard production, suitable for most the electrical appliances in Europe countries international plugs  2 poles 3 wire power cord connecting the household appliances into power, made of high quality with lowest prices.


Approvals:


European Power Cord (Schuko Power Cord) CEE7/7 EU Germany International VDE Certified CE Power Supply Plug accords with Belgium CEBEC, Denmark DEMKO, Finland F1, Italy IMQ, Germany VDE, Holland KEMA, France NF, Austria OVE, Switzerland SEMKO approvals. RoHS and REACH environmental certifications.

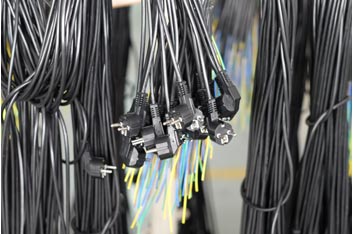

Available Opposite End
Normal Stripped, Splitter and ROJ
We manufacturers and supplies Europe Power Cord 16A AC 2 Pole 3 Wire Grounding Plug custom color, the other end can be stripped, ROJ with custom length.

Available Opposite End


Common Termination

Europe Power Cord 16A AC 2 Pole 3 Wire Grounding Plug one end is molded with CEE7 standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylon insulated.

Common Termination


IEC 60320 Connectors

Europe Schuko power cord angle plug to IEC C13 computer power cable and molded with IEC C19 as PDU power cords are normal versions of Europe ac power cords with IEC connectors.

IEC 60320 C13 Power Cord Straight

IEC 60320 C13 Power Cord Straight

IEC 60320 C13 Power Cord Right Angle

IEC 60320 C13 Power Cord Right Angle

IEC 60320 C13 Power Cord Waterproof

IEC 60320 C13 Power Cord Waterproof

IEC 60320 C13 Power Cord Locking

IEC 60320 C13 Power Cord Locking

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord

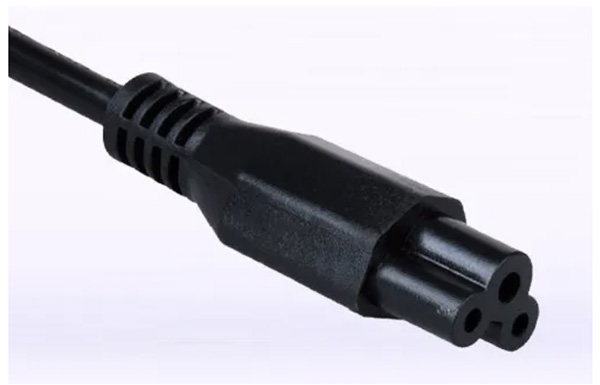

IEC 60320 C5 Power Cord

IEC 60320 C5 Power Cord

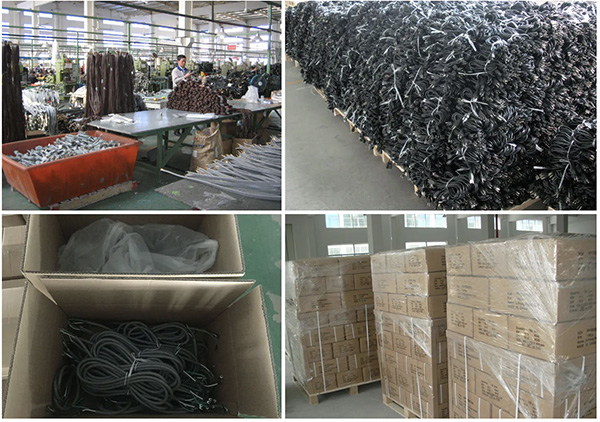

Package


Europe Power Cord angle Schuko Plug bulk packed with export cartons, pallets.
Package
Yunhuan manufacturers and supplies electrical AC power supply cords for use in European and all Countries in the world. Our extensive and complete Europe power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for Europe AC power cords as China leading Europe power cord manufacturer and supplier.all of our Europe power supply cords are made of high quality approved by VDE, CE with Rohs and Reach compliant.
