AC Power Cord > Power Cord > Europe Power Cords > Europe CEE 7/7 Schuko Staight Type Plug AC Power Cord
European VDE CEE 7/7 EN50075 power cord

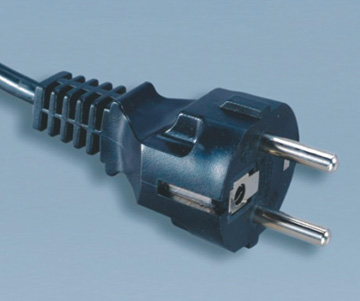

  • Europe CEE 7/7 Schuko Staight Type Plug AC Power Cord

  • CEE7/7 Schuko European straight angle plug power cord with VDE certification Rated up to 16A 250V Built to German Schuko type straight angle and designed for Europe household application power supply cables,Our European power cables are fully molded with high quality ergonomic and RoHS / REACH compliant.

    Right angle 3 Prong Plug power cord:JT003

  • Contact Us
Detailed description
Plug Standard CEE7/7 Straight 3P IP20 Plug
Maximum Current rating 16A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Cable length Custom length available
Temperature Rating minus 60C though plus 90C
Approvals CEBEC,DEMKO,FI,KEMA,NEMKO,NF,OVE,SEMKO,SEMKO,TUV,VDE
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 3000pcs
Samples Free samples Available


Other Termination Options:


Click Here


Available Opposite End Connectors:


Standard                                            Part NO


IEC 60320 C13                                   ST3(IEC C13)Europe


IEC 60320 C5                                     ST1(IEC C5)Europe


IEC 60320 C13(right angle)               ST3W(IEC C13)Europe


CEE7/7(recepatcle)                            Y003-ZFB(CEE7/7)Europe


IEC 60320 C15                                  ST3H(IEC C15)Europe


IEC 60320 C19                                   XH008A(IEC C19)Europe


Available Cable Styles:


H03VV-F 3X0.75(MAX 2M)

H05VV-F 3X0.75-1.5

H03RT-T 3X0.75-1.5

H05RN-F 3X0.75-1.0

H05RR-F 3X1.0-1.5

H07RN-F 3X1.0-1.5


More Information:


Europe SCHUKO 3P Staight Plug to IEC C13 drawing(JPG)


Plug Drawing


CEE7/7 Straight Europe power supply cord drawing

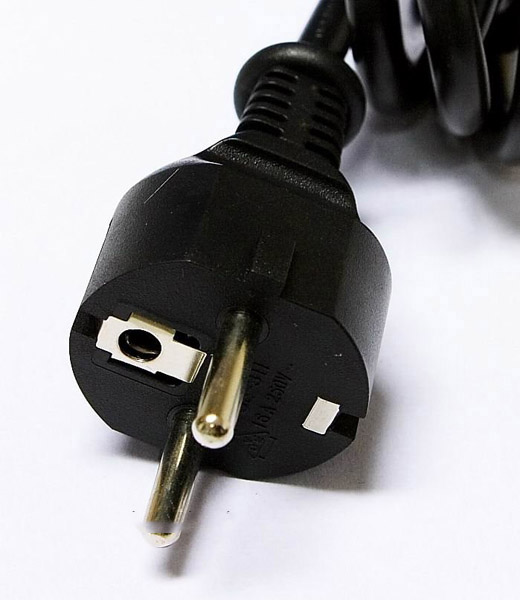

Power Cord Picture


Europe schuko plug,Europe power cord,vde power cord,European power cords,Euopean plugs,VDE plug,AC plug


Europe Power Cord 16 Amp 3 Wire CEE7/7 Schuko Straight Plug EU Germany International VDE Certified CE Power Supply Cord

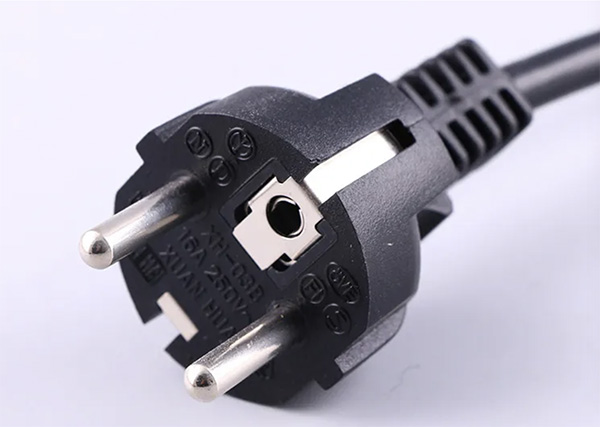

Europe CEE7/7 Schuko Straight Plug Power Supply Cord

Plug type: Euro Schuko plug grounding
Standard: CEE7 standard sheet 7-7
Approvals:VDE,CEBEC,DEMKO,
F1,IMQVDE,KEMA,NF,OVE,SEMKO
Electricity:16A,250V
Number of Poles and Wires:2 poles 3 wires earthed
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:ROJ, Termination, IEC 320 C5, C13,C15,C19
Quality System:ISO9001:2008
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number: D04, JT003-B
The EU German type Europlug with electrical rates 16 A, voltage 220V, according to the CEE7/7(Schuko plug) and IEC884-1 standard production, Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5,  C-15, Unterminated, European CE,VDE (European 16 A/ 250 V) and compatible types (Type E,F), connected with a 3-wire grounded plug rated at 16 Amp , 250 V defined by CEE 7/7. The Europe AC plugs and Sockets are used in most European countries are the most popular power plugs types.
Europe Power Cord 16A 3 Wire CEE7/7 Schuko Straight Plug is black and white as a standard color. gray and custom color are available. Custom length and shielded Europe AC power cord, Europe AC power cables available. Terminated, custom stripping.
Euro Straight Plug Power Supply Cord

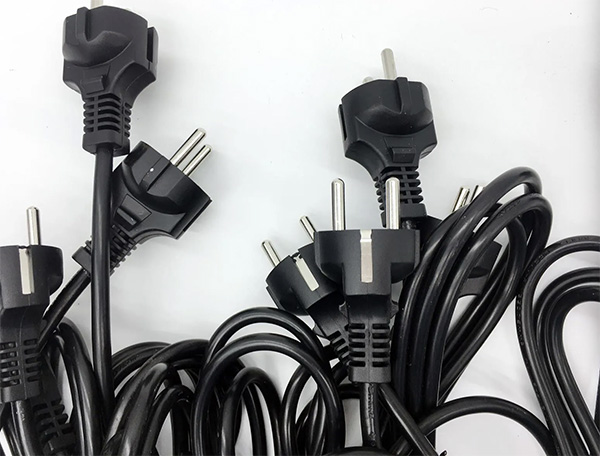

Europe Power Cord 16A 3 Wire CEE7/7 Schuko Straight Plug

Straight Plug 16A CEE7/7 Power Cord

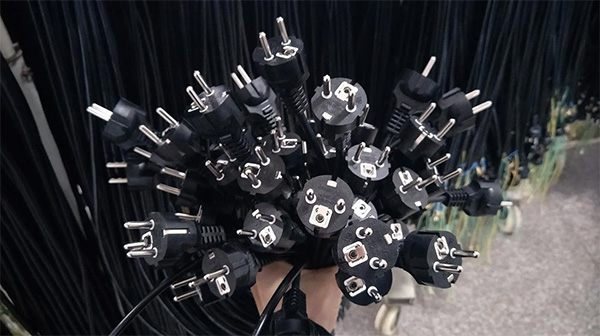

CEE 7/7 Europe Power Cord

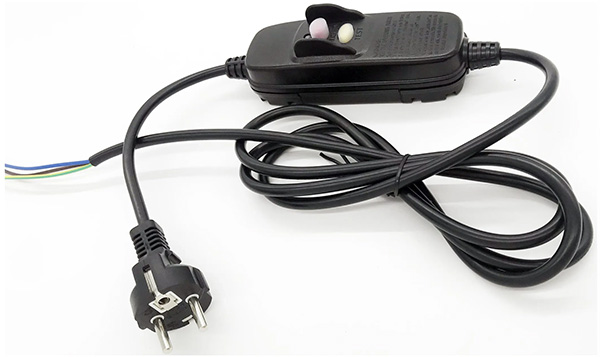

Schuko Plug Power Supply Cord Inline Ground Fault Circuit Interrupter GFCI

Schuko Plug Power Supply Cord Inline Ground Fault Circuit Interrupter GFCI

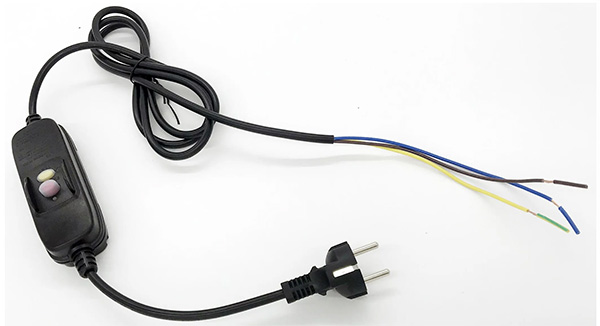

Europe CEE77 Schuko Straight Plug Power Supply Cord GFCI Inline

Europe CEE77 Schuko Straight Plug Power Supply Cord GFCI Inline

The European German standard VDE certified maximum current 16A, voltage 220V, according to the German SCHUKO CEE7/7  and IEC884-1 standard production, suitable for most the electrical appliances in Europe countries international plugs  2 poles 3 wire power cord connecting the household appliances into power, made of high quality with lowest prices.


Approvals:


European Power Cord (Schuko Power Cord) CEE7/7 EU Germany International VDE Certified CE Power Supply Plug accords with Belgium CEBEC, Denmark DEMKO, Finland F1, Italy IMQ, Germany VDE, Holland KEMA, France NF, Austria OVE, Switzerland SEMKO approvals. RoHS and REACH environmental certifications.


Available Opposite End
Normal Stripped, Splitter and ROJ

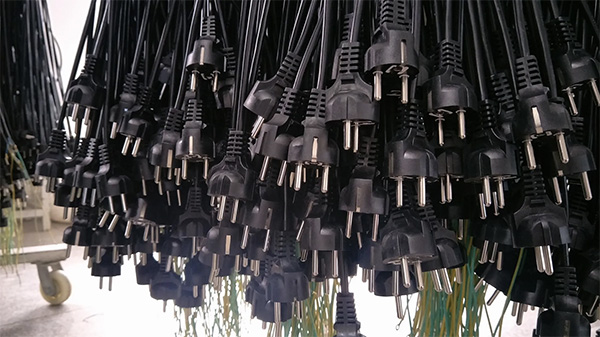

We manufacturers and supplies Europe Power Cord 16A 3 Wire CEE7/7 Schuko Straight Plug custom color, the other end can be stripped, ROJ with custom length.

Europe Power Cord 16A 3 Wire CEE7-7 Schuko Plug Available Opposite End

Available Opposite End


Common Termination

Europe Power Cord 16A 3 Wire CEE7/7 Schuko Straight Plug one end is molded with CEE7 standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylon insulated.

Europe Power Cord 16A 3 Wire CEE7-7 Schuko Plug Common Termination

Common Termination


IEC 60320 Connectors

Europe Power Cord 16A 3 Wire CEE7/7 Schuko Plug to IEC C13 computer power cable and molded with IEC C19 as PDU power cords are normal versions of Europe ac power cords with IEC connectors.

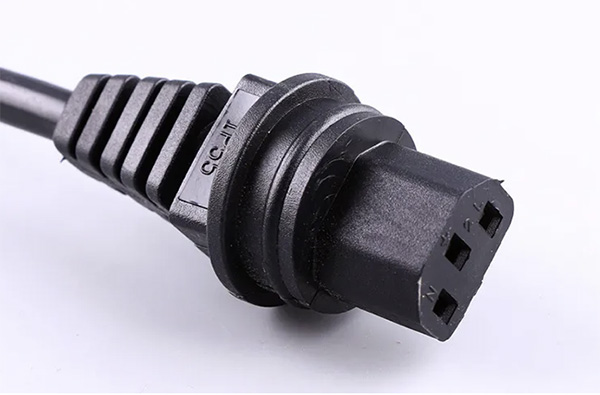

IEC 60320 C13 Power Cord Straight

IEC 60320 C13 Power Cord Straight

IEC 60320 C13 Power Cord Right Angle

IEC 60320 C13 Power Cord Right Angle

IEC 60320 C13 Power Cord Waterproof

IEC 60320 C13 Power Cord Waterproof

IEC 60320 C13 Power Cord Locking

IEC 60320 C13 Power Cord Locking

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord

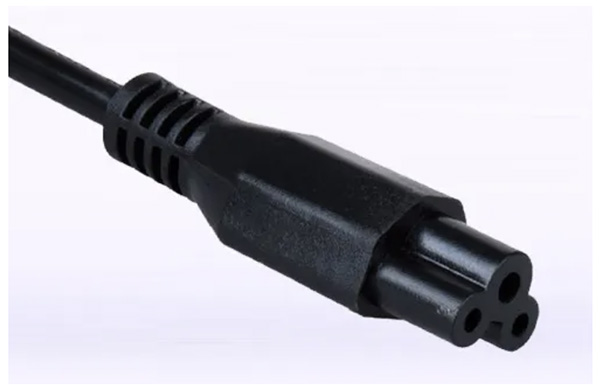

IEC 60320 C5 Power Cord

IEC 60320 C5 Power Cord

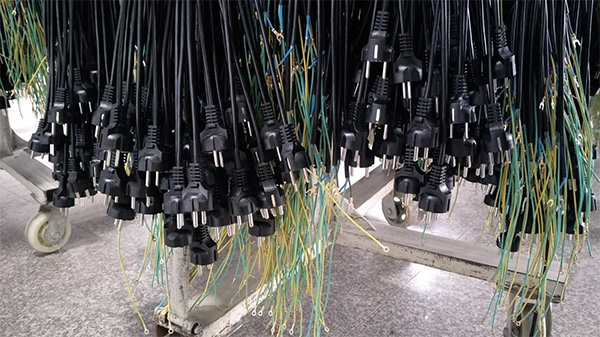

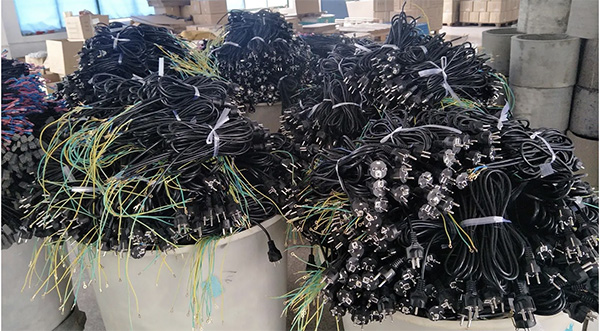

Package


Europe Power Cord 16A 3 Wire CEE7/7 Schuko Plug bulk packed with export cartons, pallets.
Package
Yunhuan manufacturers and supplies electrical AC power supply cords for use in European and all Countries in the world. Our extensive and complete Europe power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for Europe AC power cords as China leading Europe power cord manufacturer and supplier.all of our Europe power supply cords are made of high quality approved by VDE, CE with Rohs and Reach compliant.
