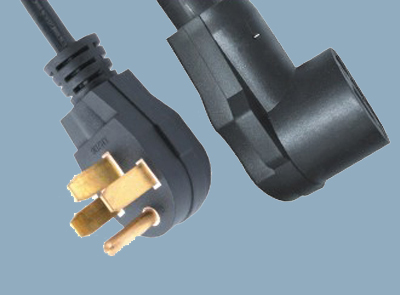

4 Conductor Cord Sets Recreation Vehicles 30A RV
NEMA 6-50P molded heavy duty three prong power cord plug with UL approval. Rated up to 50A 250V. Built to the NEMA 6-50P standard. Our NEMA 6-50P plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
Contact Us

Detailed description

Male Plug	America 3 Prong Plug
Female Receptacle	None
Amperage	Up to 50A
Voltage	Up to 250V AC
Outer Mold Material	50P PVC
Blade Material	Nickel coated Brass
Color	Any color available
Cable Length	Any length available
Certifications	UL CUL
Environmental Certifications	RoHS, REACH
Testing	100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout

Other Termination Options:

Click Here

Available Cable Styles:

AWG 10/3C SPT-3 SJT SJTW ST STW

AWG 12/3C SPT-3 SJT SJTW ST STW

AWG 14/3C SPT-3 SJT SJTW ST STW

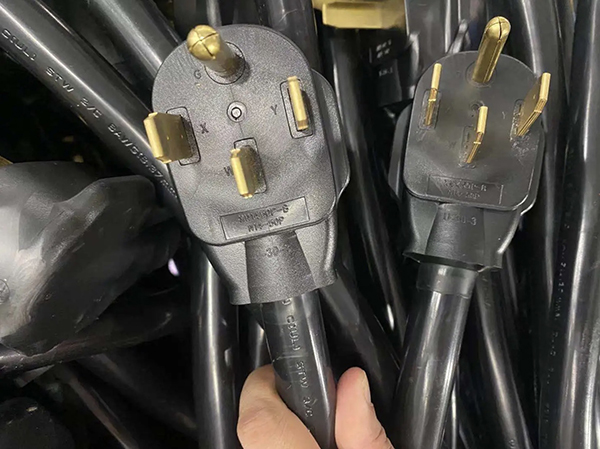

Manufacturer Base 3-pole 4-wire RV Power Suppply Cord 50 Amp NEMA 14-50P AC 125-250 Volt Custom Length Cord, UL Listed
Power Supply Cord RV 50 Amp NEMA 14-50P AC 125-250 Volt Custom Length Cord, UL Listed

Power Supply Cord 50 Amp NEMA 14-50P, 125V/250V, 4-prong plug molded with custom length cable.

Plug type: US 50A blade plug
Standard: NEMA 14-50P
Approvals: UL, cUL
Electricity:50A, 125/250V
Number of Poles and Wires:3 pole 4 wires
Cable length: Custom length
End Options: Strain relief clamp, terminals
Quality System: ISO9001:2008
Color: Black is normal, Custom color available
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel coated brass
Cable Specifications: Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number:LA009C,XH208,XH239,XN1450P-B
Plug Standard America NEMA 14-50 plug Maximum Electric current rating 50A Maximum Voltage 250V Number of Poles and Wires 3 poles, 4 wires Grounded Straight blade Type Plug, available cables：

XH208	14-50P	8/4	DRT,S,SO,SOW,SOO,SOOW, ST, STW, STO, STOW, STOO,STOOW	40/125, 250
		8/2+10/2	DRT (++)	40/125, 250
		6/2+8/2	DRT (++)	55/125, 250
XH239	14-50P	8/2 + 10/2	DRT	40, 125/250
		8/4	DRT	35, 125/250
		6/2 + 8/2	DRT	50, 125/250
		6/4	DRT	45, 125/250
		8/2 + 10/2	ST, STW, STO, STOW, STOO, STOW	35, 125/250
		6/3 + 8/1	ST, STW, STO, STOW, STOO, STOW	45, 125/250
		6/4	ST, STW, STO, STOW, STOO, STOW	45, 125/250
LA009C	14/50	6/4	STW, STOW, STOOW, SOW, SOOW	50/125/250
LA009C	14/50	6/3 + 8/1	STW, STOW, STOOW	50/125/250
LA009C ALTERNATE	14/50	6/3 + 8/1	SOW	50/125/250
XN1450P-B	14-50P	8/2 + 10/2	DRT	40, 125/250
		8/4	DRT	35, 125/250
		6/2 + 8/2	DRT	50, 125/250
		6/4	DRT	45, 125/250
		8/2 + 10/2	ST, STW, STO, STOW, STOO, STOOW	35, 125/250
		6/3 + 8/1	ST, STW, STO, STOW, STOO, STOOW	45, 125/250
		6/4	ST, STW, STO, STOW, STOO, STOOW	45, 125/250
