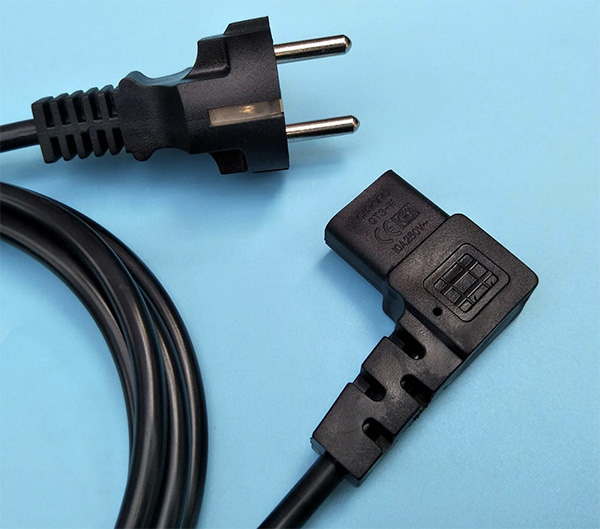

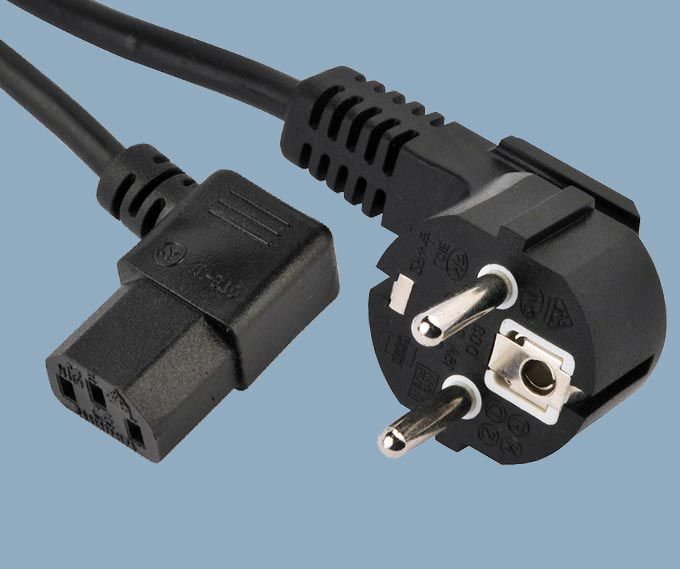

  • European CEE7/7 Schuko Plug to IEC C13 Right (Left) Angle Power Cord

  • CEE7/7 Schuko plug to IEC C13 right (left) angle Power Cord with VDE,RoHS and REACH approved molded with high quality.The IEC 60320-C13 three prong power receptacle is often referred to as the "computer power cable" receptacle. These right angled IEC 60320 C13 are same as Straight Angle and Left Angle versions commonly used in a variety of applications including computers, portable electronics, household applications, chargers , kitchen appliances and game systems. Available three prong male plug or IEC 60320 standard plug versions with international plugs being the far more popular power cord style.
  • Contact Us
Detailed description
Male Plug Europe CEE7/7 Schuko
Female Receptacle IEC60320 C13 right angle Europe
Amperage Up to 10A
Voltage Up to 250V AC
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Cable Length Custom length available
Certifications CEBEC,DEMKO,FI,KEMA,NEMKO,NF,OVE,SEMKO,SEMKO,TUV,VDE
Environmental Certifications RoHS, REACH
Testing 100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Available Wire Styles H05VV-F 3G0H03VV-F 3G 0,5 mm² max.2m
H03VV-F 3G 0,75 mm²
H05VV-F 3G 0,75 mm² max.2m
H05VV-F 3G 1,0 mm² H05VV-F 3G 1,5 mm²
H05RR-F 3G 0,75 mm² max.2m
H05RR-F 3G 1,0 mm² H05RR-F 3G 1,5 mm²
H05RN-F 3G 0,75 mm² max.2m
H05RN-F 3G 1,0 mm²
H07RN-F 3G 1,0 mm² H07RN-F 3G 1,5 mm²
H03RT-H 3G 0,75 mm² max.2m
H03RT-H 3G 1,0 mm²
H05V2V2-F 3G 0,75 mm² max.2m
H05V2V2-F 3G 1,0 mm
MOQ 3000pcs
Delviery lead date 15-20days
Pakcing Export cartons
Samples Free samples can be sent within 3 days
Payment TT 30percent Advance,balance after shipping,L/C
