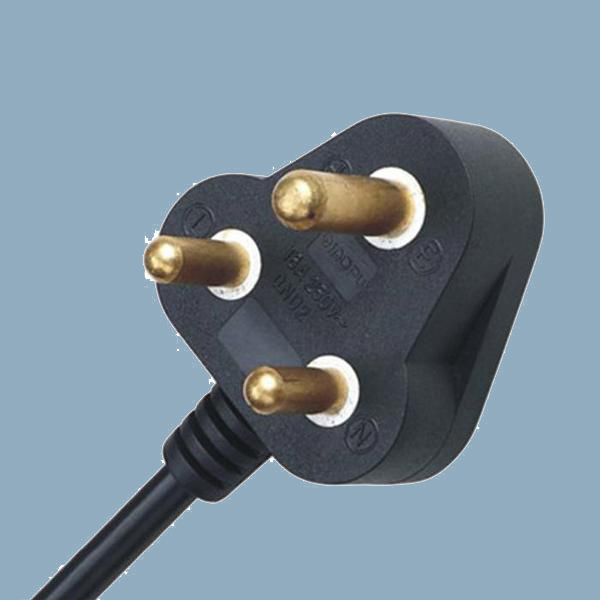

  • South Africa SABS SANS-164 Non-rewirable 16A Plug Power Supply Cord

  • SABS 164-1(aka BS546) South Africa standard power cord plug with SABS certification.  Rated up to 16A 250V.  Fully conforms to the BS546 and SABS 164-1 plug standards. PE364 South African SABS IEC 60884-1:2002 (Third Edition) + A1:2006; SANS 164-0:2007 + SANS 164-3:2007 6A 250V Non-rewirable with SABS approval designed for South African household applications power supply connections,All of Our South African AC plugs , connectors and power cables are fully made with high quality.

    Our South Africa power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

    Link to 6A South Africa Power Cord:XH02A

  • Contact Us
Detailed description

Plug Standard

South Africa 164-3 16A

Maximum Current rating 16A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Cable length Custom length available
Temperature Rating minus 40C though plus 75C
Approvals VDE,SABS,SANS-164
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 1000pcs
Samples Free samples Available


Available Opposite End Connectors:


Standard                                                 Part NO


IEC 60320 C13                                        ST3(IEC C13)South Africa


IEC 60320 C15                                        ST3H(IEC C15)South Africa


IEC 60320 C19                                        XH008A(IEC C19)South Africa


IEC 60320  C7                                         ST2(IEC C7)South Afirca


Other Termination Options:


Click Here


Available Cable Styles:


H05VV-F 2X0.75-1.5mm2

H05VV-F 3X0.75-1.5mm2

H05RN-F 2X0.75-1.0mm2

H05RN-F 3X0.75-1.0mm2

H05RR-F 2X1.0-1.5mm2

H05RR-F 3X1.0-1.5mm2

H07RN-F 2X1.0-1.5mm2

H07RN-F 3X1.0-1.5mm2


More Information:


South Africa 16A Plug to C13 Drawing(PDF)

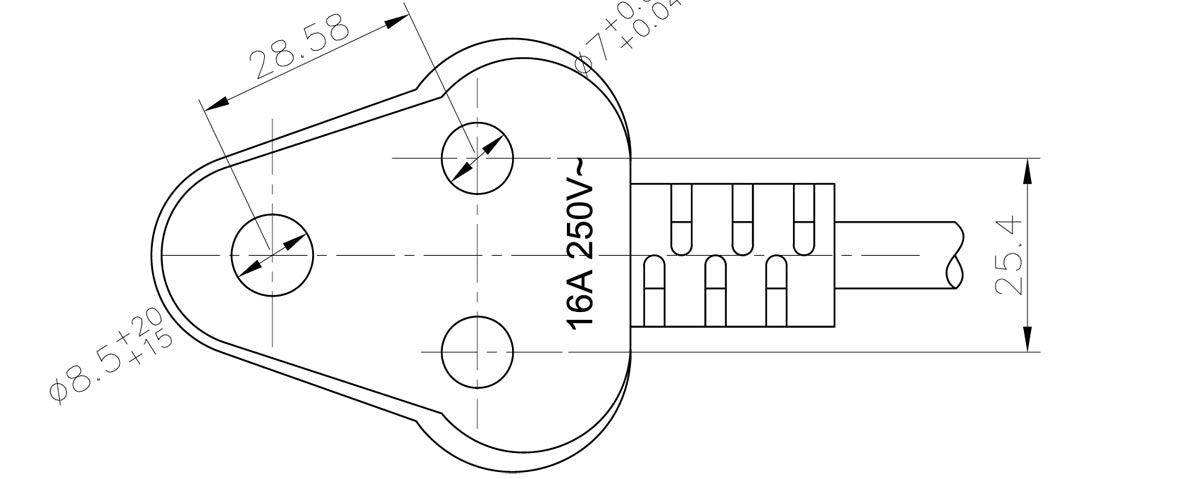

164-3 16A Plug Drawing


South Africa Power Cord Set 16A

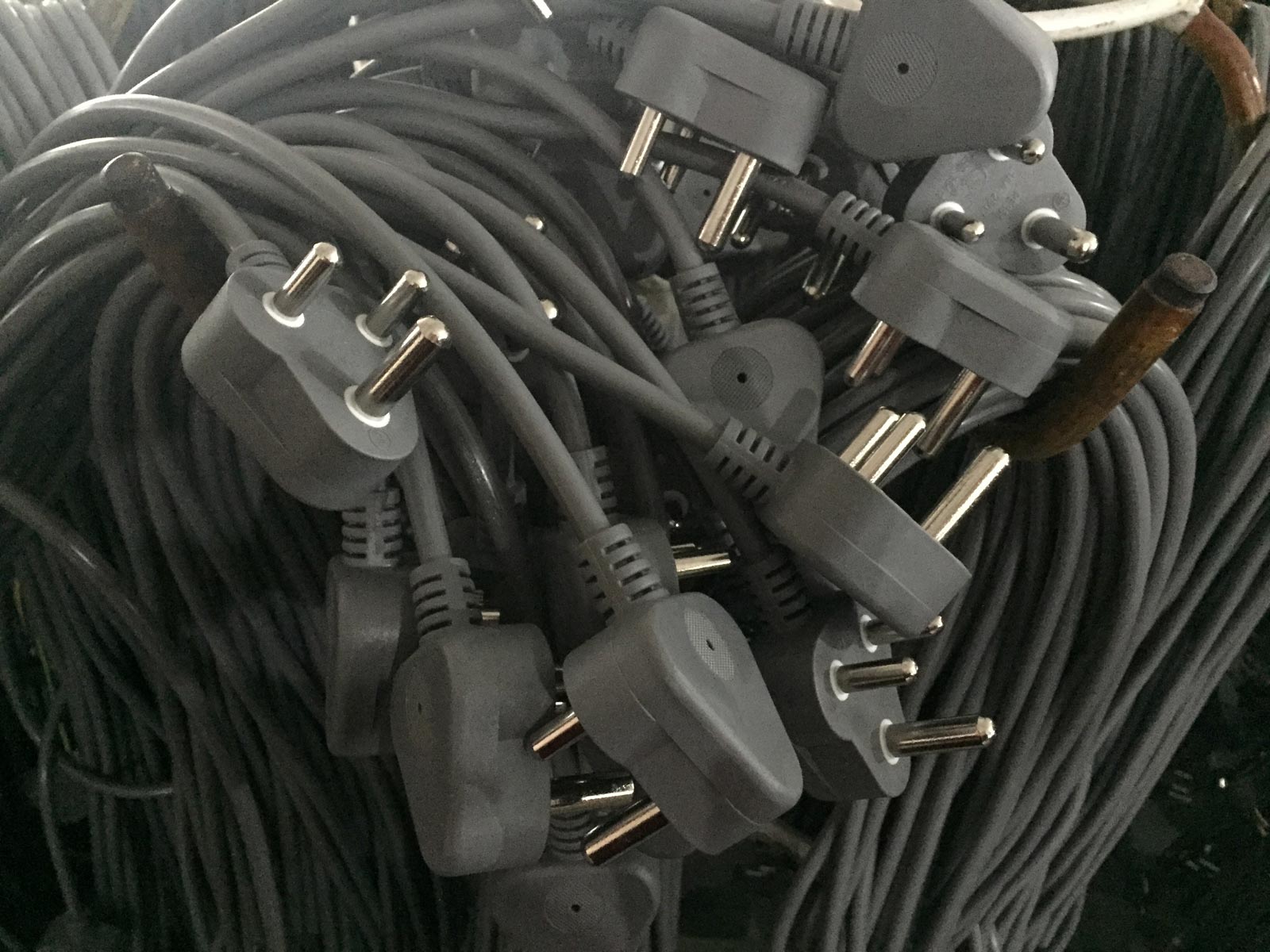

Factory Manufacturing Images


South African SABS SANS-164 Non-rewirable 16A Plug moulded with VDE certified custom length,colour flexible PVC,rubber cables power supply cords.

South African SABS SANS 164 Power Cord PE364


South Africa AC Power Cords , AC Power Supply Cords , South Africa Power Cords SANS 164-1 , 16 Amp Plug

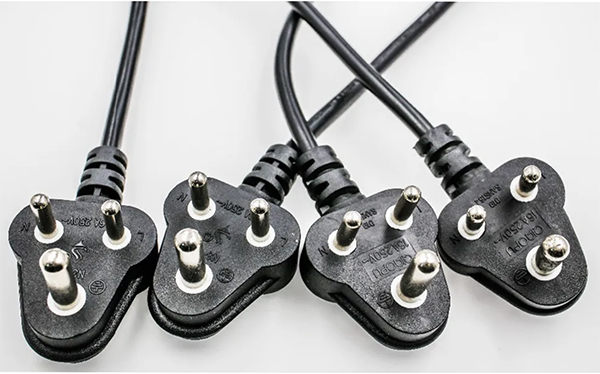

South Africa Power Cord 16 Amp Plug

Plug type: Non-rewireable Type M plug
Standard:SANS 164-1
Approvals:SABS, VDE
Electricity:16A, 250V
Number of Poles and Wires:2 pole 2 wires, 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Termination Options:ROJ,IEC,terminations
Quality System:ISO9001:2008
Color:Custom color,white and black are normal
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model number:D19
Plug standard SANS 164-1, 16 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type M Plug, Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated.
South Africa AC power cords are black and white as standard color. gray and custom colors are  available. Custom length and shielded Sougth Africa cordsets  AC power cables available. Terminated, custom stripping.
South Africa Power Cord 3 Wire 16A Plug


Available Opposite End
Normal Stripped, Splitter, and ROJ

We manufacturers and supply South Africa AC Power Cords 16A Plug, the other end can be stripped, ROJ with custom length.

Available Opposite End


Common Termination

The South Afirca AC Power Cords 16A Plug is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


IEC 60320 Connectors

The South Afica AC Power Cords 16A Plug to IEC 60320 C7,IEC 320 C5 laptop, IEC C13 computer power cable and molded with IEC C19 as PDU power cords is normal versions of Japan ac power cords with IEC connectors.

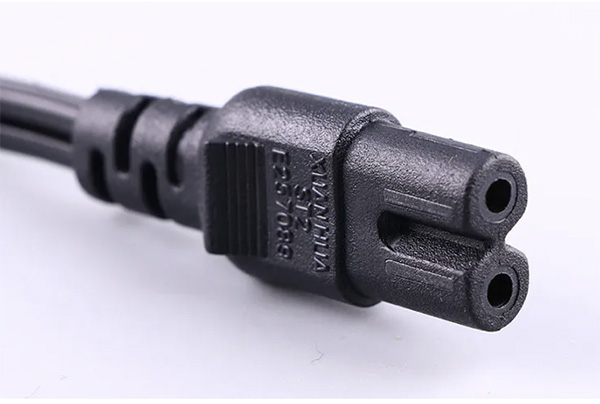

IEC 60320 C7 Power Cord

IEC 60320 C7 Power Cord

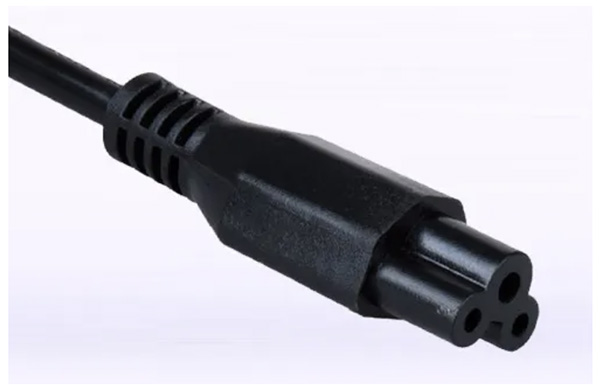

IEC 60320 C5 Power Cord

IEC 60320 C5 Power Cord

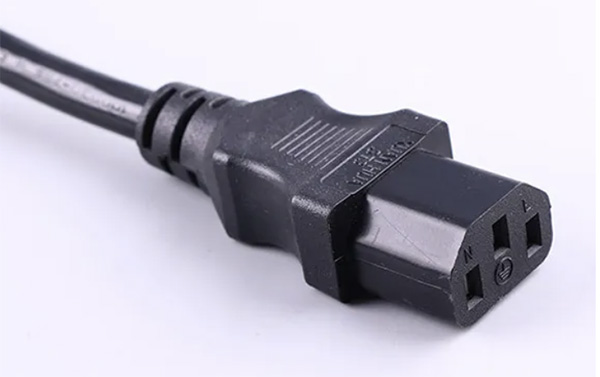

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Straight Power Cord

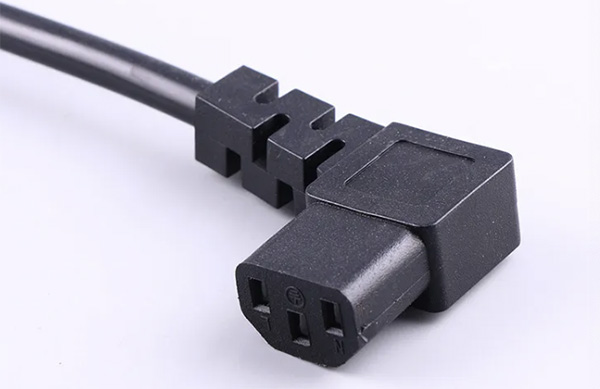

IEC 60320 C13 Right Angle Power CordIEC 60320 C13 Right Angle Power Cord

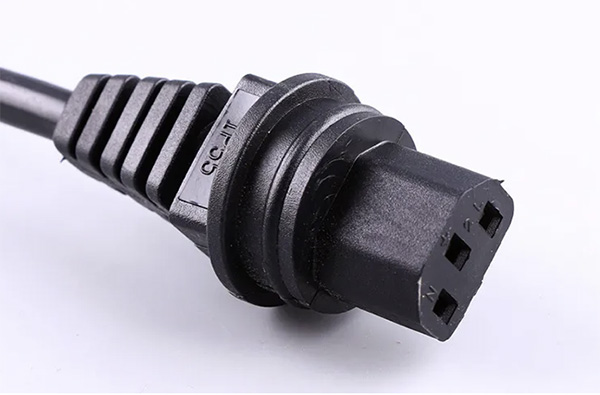

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Waterproof Power Cord

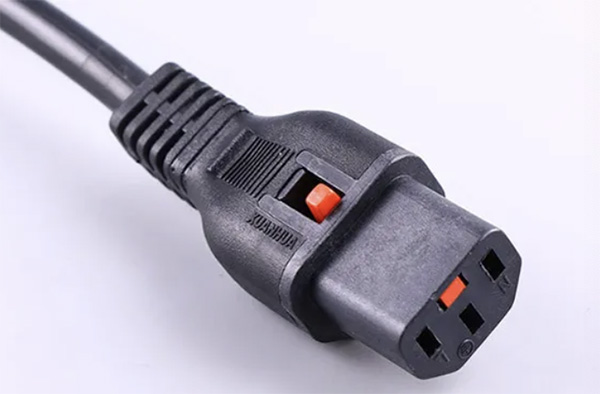

IEC 60320 C13 Locking Power Cord

IEC 60320 C13 Locking Power Cord

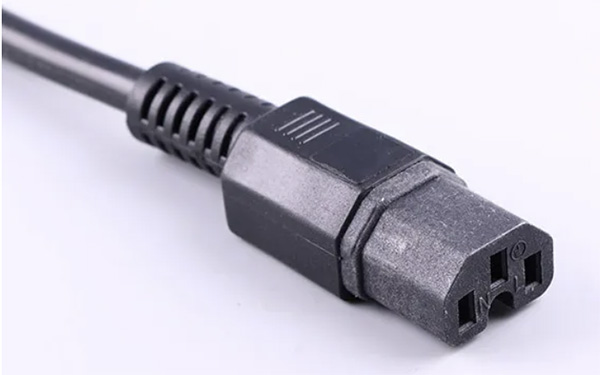

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord

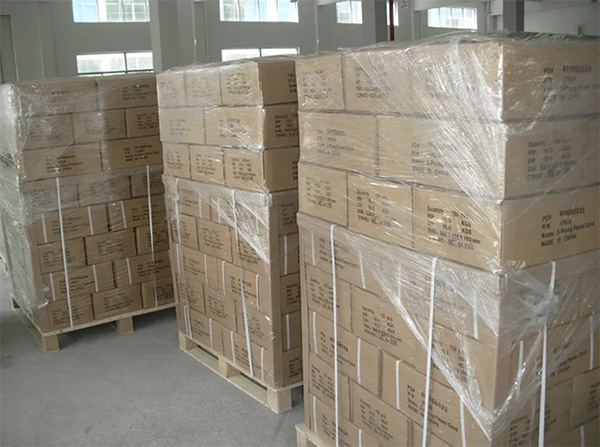

Package

The South Afirca AC Power Cords 16A Plug mostly bulk packed with export cartons, pallets.

Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in South Africa and all Countries in the world. Our extensive and complete South Africa power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for South African AC power cords as leading power cord manufacturer and supplier.all of South Africa power supply cords are approved by SABS with Rohs and Reach compliant.
