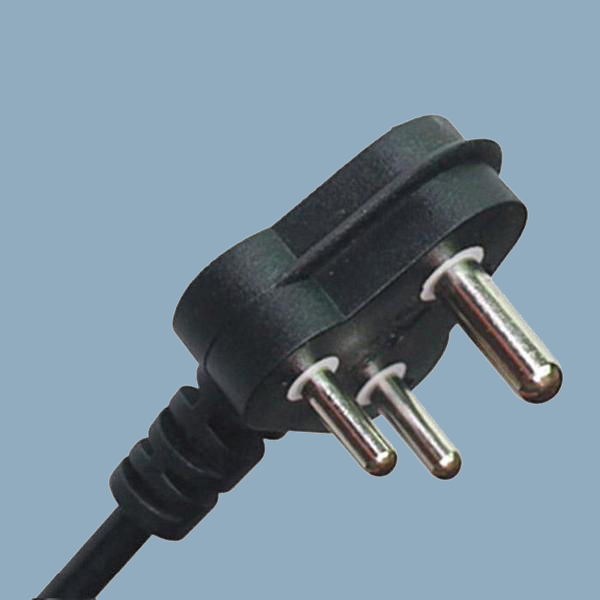

  • South Africa SABS IEC 60884 SANS 164 Non-rewirable 6A Plug Cord Set

  • SABS 164-1(aka BS546) South Africa standard power cord plug with SABS certification.Rated up to 6A 250V.  Fully conforms to the BS546 and SABS 164-1 plug standards. IEC 60884-1:2002 (Third Edition) + A1:2006; SANS 164-0:2007 + SANS 164-3:2007 6A 250V Non-rewirable with SABS approval designed for South African household applications power supply cords,All of Our South African AC plugs , connectors and power cables are fully made with high quality.

    Our South Africa power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

    Click here SABS 164-1 6A to C13:XNF-16/ST3

  • Contact Us
Detailed description

Plug Standard

South Africa SANS 164 Non-rewirable plug

Maximum Current rating 6A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 2 or 3 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Cable length Custom length available
Temperature Rating minus 40C though plus 75C
Approvals VDE,SABS
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 1000pcs
Samples Free samples Available


Available Opposite End Connectors:


Standard                                                       Part NO


IEC 60320 C13                                              ST3(IEC C13)South Africa


IEC 60320 C5                                                ST1(IEC C5)South Africa


IEC 60320 C7                                                ST2(IEC C7)South Afirca


Other Termination Options:


Click Here


Available Cable Styles:


H05VV-F 2X0.75-1.5mm2

H05VV-F 3X0.75-1.5mm2

H05RN-F 2X0.75-1.0mm2

H05RN-F 3X0.75-1.0mm2


More Information:

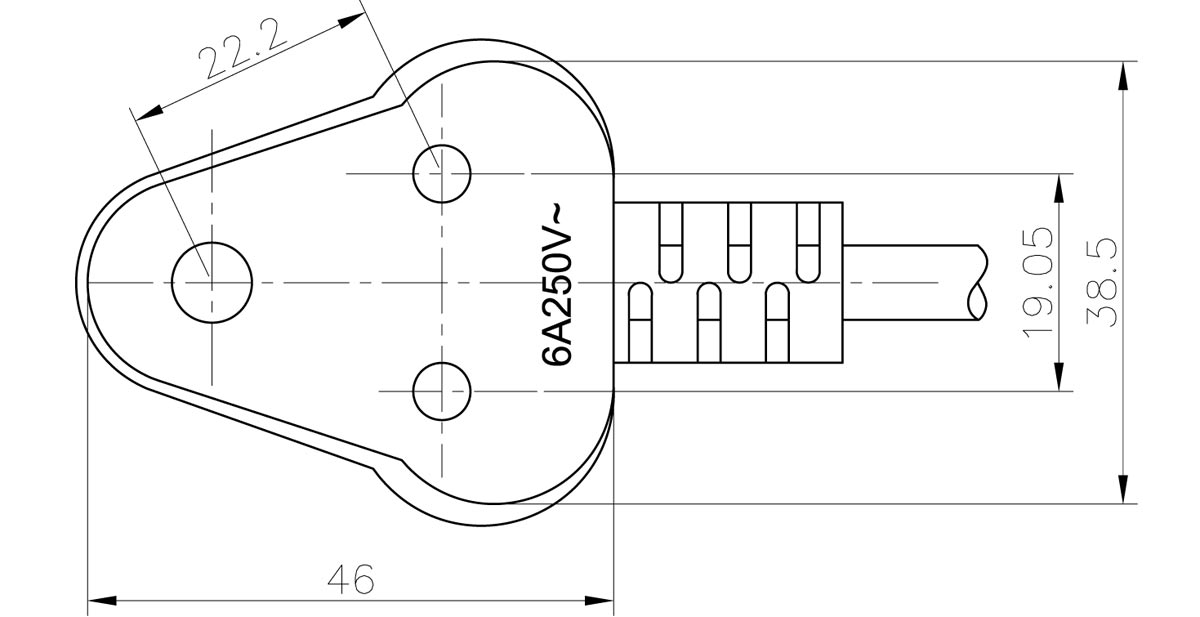

XH042A 6A South Africa Plug Drawing(PDF)

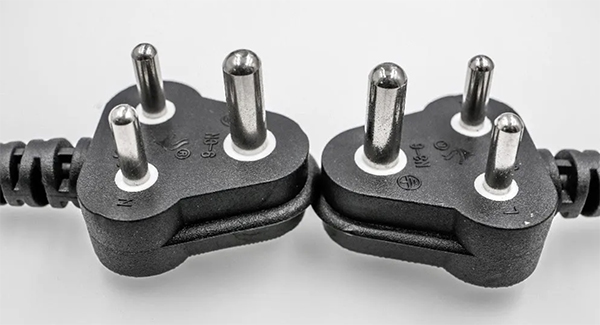

South Africa 6A Plug


South Africa Power Cords , 2 Wire , 3 Wire 6A Plug , SANS 164-1 Standard AC Power Supply Cords , Custom Length , SABS Approved
South Africa Power Cord 6A Plug, Custom Long Cable

Plug type: Non-rewireable Type M plug
Standard: SANS 164-1
Approvals: SABS, VDE
Electricity:6A/250V
Number of Poles and Wires:2 poles 2 wires, 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Termination Options:ROJ,IEC C13,C7,C5,C15,C19,terminations
Quality System:ISO9001:2008
Color: Custom color, white and black are normal
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model number: D18, N3-6
Plug standard SANS 164-1, 6 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type M Plug, Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-5, C-7, C-15, Unterminated.
South Africa Power Cords 6A Plug is black and white as the standard color. gray and custom colors are available. Custom length and shielded South Africa cord set AC power cables available. Terminated, custom stripping.
South Africa 3 Wire 6A Power Cord


Available Opposite End
Normal Stripped, Splitter, and ROJ

We manufacturers and supply South Africa Power Cords 6A Plug, the other end can be stripped, ROJ with custom length.

Available Opposite End


Common Termination

The South Afirca Power Cords 6A Plug is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


IEC 60320 Connectors

The South Afica Power Cords 6A Plug to IEC 60320 C7,IEC 320 C5 laptop, IEC C13 computer power cable and molded with IEC C19 as PDU power cords is normal versions of Japan ac power cords with IEC connectors.

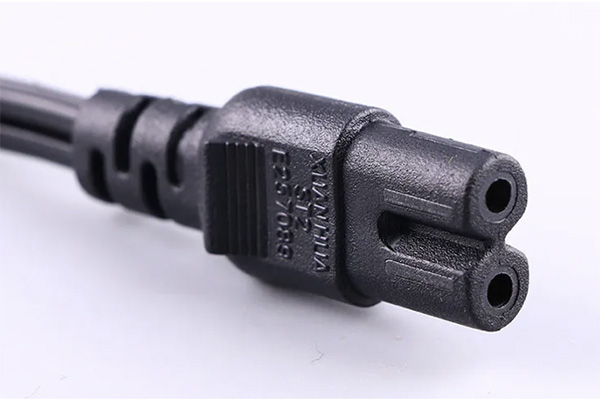

IEC 60320 C7 Power Cord

IEC 60320 C7 Power Cord

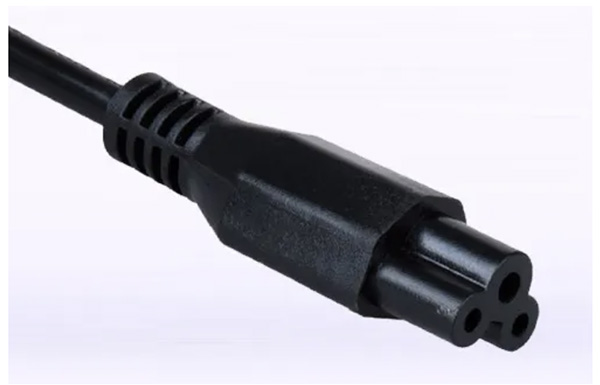

IEC 60320 C5 Power Cord

IEC 60320 C5 Power Cord

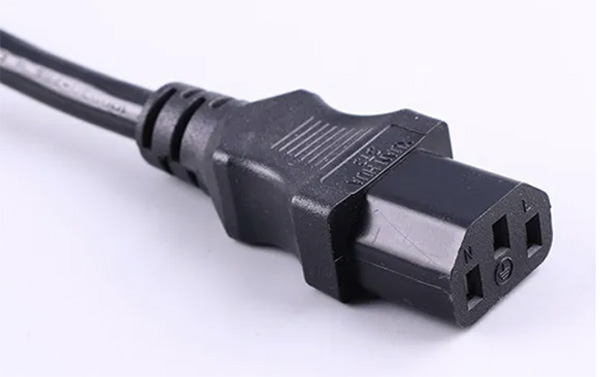

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Straight Power Cord

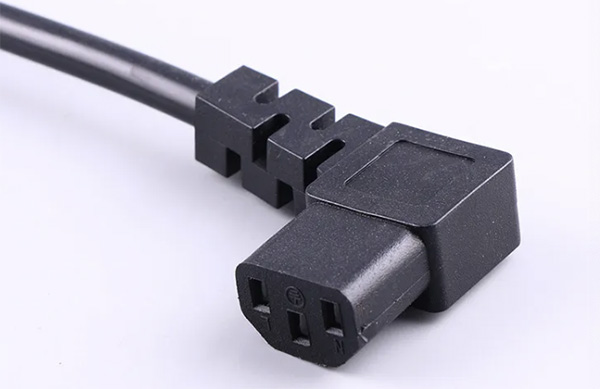

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Waterproof Power Cord

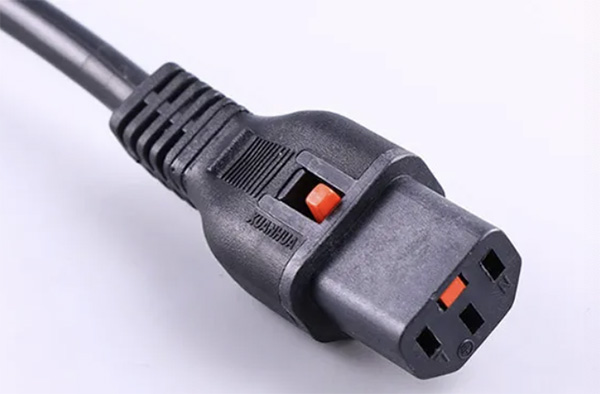

IEC 60320 C13 Locking Power Cord

IEC 60320 C13 Locking Power Cord

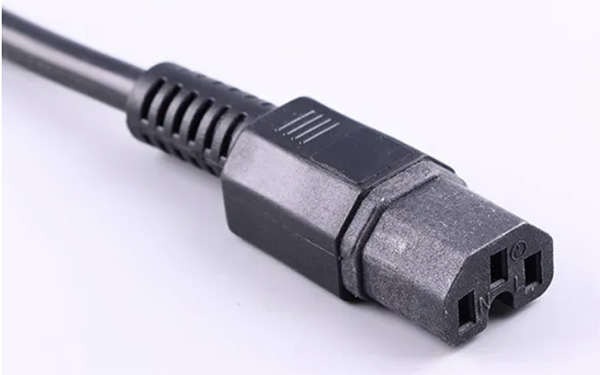

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

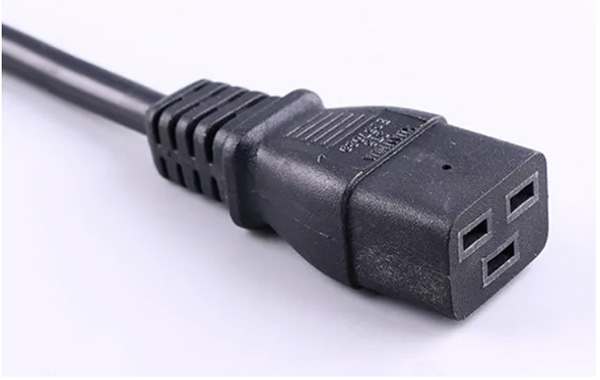

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord


Package

The South Afirca Power Cords 6A Plug mostly bulk packed with export cartons, pallets.

Package


Yunhuan manufacturers and supplies electrical AC power supply cords for use in South Africa and all Countries in the world. Our extensive and complete South Africa power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for South African AC power cords as leading power cord manufacturer and supplier.all of South Africa power supply cords are approved by SABS with Rohs and Reach compliant.
