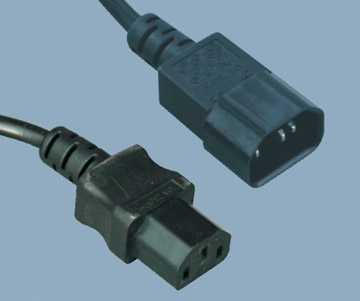

IEC C13 to IEC C14 China Power Supply Cord
IEC C13 to IEC C14 Power Cord China IEC 60320 standard IEC C14 plug China to IEC 60320 C13 China receptacle cordset with China CCC (3C) safety marks and RoHS / REACH Environment approved, molded with low profile ergonomic design.
Contact Us

Detailed description

Male Plug Standard	IEC 60320 C14 China
Female Receptacle Standard	IEC 60320 C13 China
Amperage	Up to 10A
Voltage	Up to 250V AC
Outer Mold Material	50P PVC
Blade Material	Nickel coated Brass
Color	Custom color available
Cable Length	Custom length available
Safety Certification	CCC / 3C
Environmental Certifications	RoHS, REACH
Testing	100percent are individually tested
Available Wire Styles	53 RVV 3X0.5-0.75 53 RVV 3X1.0-1.5 YZ 3X0.75-1.0 YZW 3X0.75-1.5 YCW 3X0.75-1.0
MOQ	3000 pcs
Delivery lead date	15-20 days
Packing	Export cartons
Samples	Free samples can be sent within 3 days
Payment	TT 30percent Advance,balance after shipping,L/C

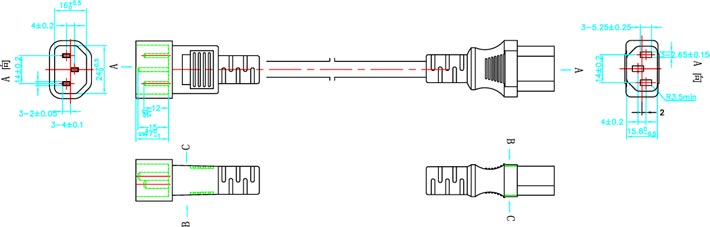

Power Cable Drawing

This international power cable cable are mostly used in household appliance rated up to 10A 250V ,below drawing shows inside dimensions ,custom cable length and specifications are available.

Computer Power Extension Cord IEC-60320-C14 to IEC-320-C13 Power Extension Cable in Custom Long , Color
IEC-320-C14 to IEC-320-C13 Power Extension Cable

Plug type: IEC C14
Standard:IEC 60320
Approvals:VDE,SAA,CCC,UL,KC,PSE
Electricity:10A,13A,15A heavy duty,125V,250V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Oppsite End Options:IEC 302 C13
Quality System:ISO9001:2008
Color:Custom color,white and black are normal
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:JT-SZ3/JT-ST3,XH007A/XH006A ,SZ3/ST3
Plug Standard IEC 60320 C14 , 2 Pole 3 Wire Grounding,Connector Standard IEC 60320 (320) C13 Straight 10A 250V.
