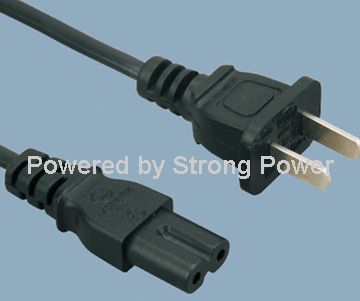

China to C7 Power Cord China GB2099 stanadard 2 pin plug to IEC 60320 C7 cord with China 3C certification,mostely moulded with 2X0.75mm2 flat cable widly using in China small applications.
View the technical drawing:China GB1002 to C7 power cord drawing(PDF)
|China 2P plug
|IEC 60320 C7 China
|Up to 2.5A
|Up to 125V AC
|Outer Mold Material
|Nickel coated Brass
|Custom color available
|Custom length available
|100percent are individually tested
|Available Wire Styles
IEC 52 RVVB 2x0.5-0.75mm2
IEC 522 RVV 2x0.5-0.75mm2
|Delivery lead date
|Free samples can be sent within 3 days
|TT 30percent Advance,balance after shipping,L/C
Other Termination Options:
China 2 Wire Non-Grounding 2099GB Plug IEC 60320 C7 Power Cord ,Mains Lead Custom Length / Color , CCC Approved
China Plug IEC 320 C7 Power Cord Custom Long
Plug type: 2 wire China Plug
Number of Poles and Wires:2 pole 2 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Oppsite End:IEC 320 C7 Straight
Color:Custom color,white and black are normal
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Plug Standard GB 2099.1-1996, GB 1002-1996, 6A 2 pole 2 wires,non-polarized, non-grounding Type A Plug Connector IEC 60320 (320) C-7, C-17, Unterminated. China GB2009 (Chinese 6 A/250 V) and compatible types (Type A), connected with a two-wire ungrounded plug rated at 6 A , 250 V defined by CCC. The China AC plugs and Sockets are similar in appearance to the Australlian and Argentine plugs.
China Power Cord IEC C-7 are black and white as standard color. gray and custome color are available. Custom length and shielded China cordsets light duty China AC power cables available. Terminated, custom stripping.
China Power Cord to IEC 60320 C7 figure 8 connector Bulk packed with export cartons, pallets.
Yunhuan manufacturers and supplies electrical AC power supply cords for use in China and all Countries in the world. Our extensive and complete China power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for China AC power cords as China leading China power cord manufacturer and supplier. all of China’s AC power cables are approved by CCC or 3C and Rohs / Reach compliant.
