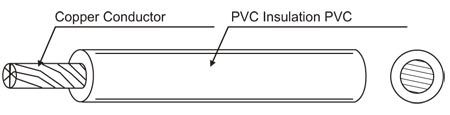

H05V-K-H05V2-K-H07V-K-H07V2-K-PVC-Cable

  • H05V-K,H05V2-K,H07V-K,H07V2-K PVC Cable

  • H05V-K,H05V2-K,H07V-K,H07V2-K PVC insulated single cords cords,70C 90C,Standard: JIS C3301 DIN VDE 0281-7HD21.7 Europe VDE Certified molded with high quality with Rohs and Reach environment.
  • Contact Us
Detailed description

H05V-K,H05V2-K


PVC insulated single cords cords,

Rating:300/500V 70C 90C,
Standard: JIS C3301 DIN VDE 0281-7HD21.7
Normal area
 (mm2) 		Conductor
Construction (No./mm) 		Insulation
thickness (mm) 		Overall diameter
 (mm) 		Max Conductor resistance
at 20°C (Ω/km)
Bare Tinned
0.50 0.6 16/0.20 2.20±0.1 39.00 40.1
0.75 0.6 24/0.20 2.40±0.1 26.00 26.7
1.00 0.6 32/0.20 2.55±0.1 19.50 20.0

H07V-K,H07V2-K


PVC Insulated Single Cords

Rating:450/750V 70C
Standard:DIN VDE 0281-3 HD21.3
Normal area
(mm²) 		Conductor Construction
(No./mm) 		Insulation thickness
(mm) 		Overall diameter
(mm) 		Max conductor resistance
at 20°c Ω/km
Bare Tinned
1.50 30/0.25 0.7 3.15 13.30 13.7
2.50 49/0.25 0.8 3.70 7.98 8.21
4.00 56/0.30 0.8 4.50 4.95 5.09
6.00 84/0.30 0.8 5.40 3.30 3.39
