AC Power Cord > Power Cord > Europe Power Cords > IEC 60320 C14 Plug To IEC 60320 C13 Ineternaitional Power Cord

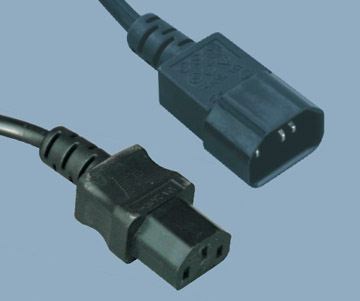

IEC 60320 C14 Plug To IEC 60320 C13 Ineternaitional Power Cord
IEC 60320 C14 Plug To IEC 60320 C13 Ineternaitional Computer monitor type power cord plug / receptacle with VDE certification,Built to the IEC 60320 C14 plug and IEC C13 European connector for using in most countries appliance cord sets. Rated up to 13A 240V.The IEC 60320-C13 three prong power cord receptacle is often referred to as the "computer power cable" receptacle. These IEC C13 power cords are commonly used in a variety of applications including computers, portable electronics, household applications, chargers , kitchen appliances and game systems such as PlayStation II and Wii. Available thre prong male plug or IEC 60320 standard plug versions with international plugs being the far more popular power cord style.
Contact Us

Detailed description

Male Plug Standard	IEC 60320 C14 Europe
Female Receptacle Standard	IEC 60320 C13 Europe
Amperage	Up to 13A
Voltage	Up to 250V AC
Outer Mold Material	50P PVC
Blade Material	Nickel coated Brass
Color	Custom color available
Cable Length	OEM length available
Safety approvals	VDE
Environmental Certifications	RoHS, REACH
Testing	100percent are individually tested
Available Wire Styles	H03VV-F 3G 0,5 mm² max.2m H03VV-F 3G 0,75 mm² H05VV-F 3G 0,75 mm² max.2m H05VV-F 3G 1,0 mm² H05VV-F 3G 1,5 mm² H05RR-F 3G 0,75 mm² max.2m H05RR-F 3G 1,0 mm² H05RR-F 3G 1,5 mm² H05RN-F 3G 0,75 mm² max.2m H05RN-F 3G 1,0 mm² H07RN-F 3G 1,0 mm² H07RN-F 3G 1,5 mm² H03RT-H 3G 0,75 mm² max.2m H03RT-H 3G 1,0 mm² H05V2V2-F 3G 0,75 mm² max.2m H05V2V2-F 3G 1,0 mm
MOQ	3000pcs
Delivery lead date	15-20 days

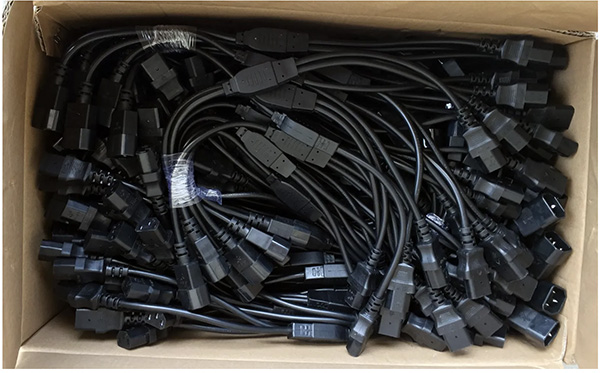

Packing	Export cartons
Samples	Free samples can be sent within 3 days
Payment	TT 30percent Advance,balance after shipping,L/C

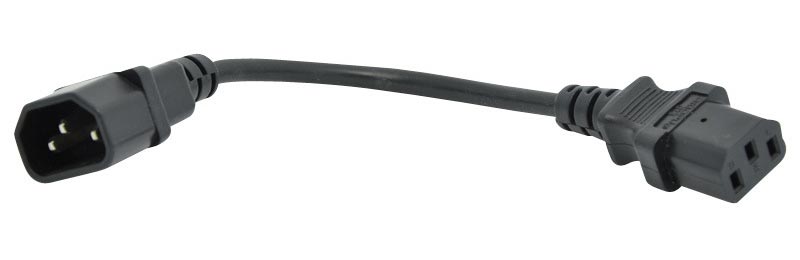

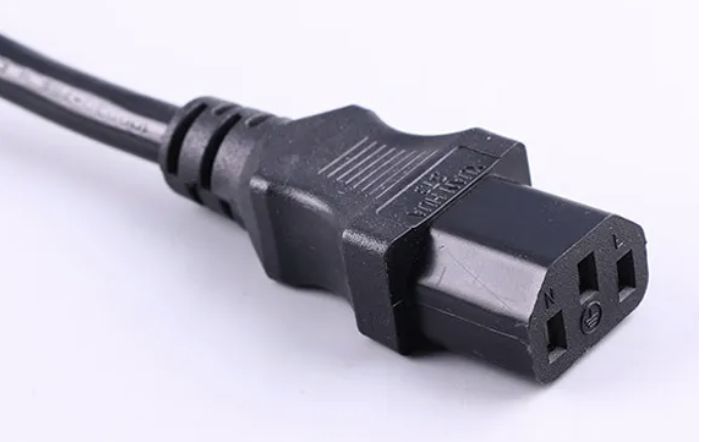

Cord Set Photo

This appliance cord most molded with 3x0.75mm2 or 3x1.00m2 PVC cable length from 0.5 meter to several meters.

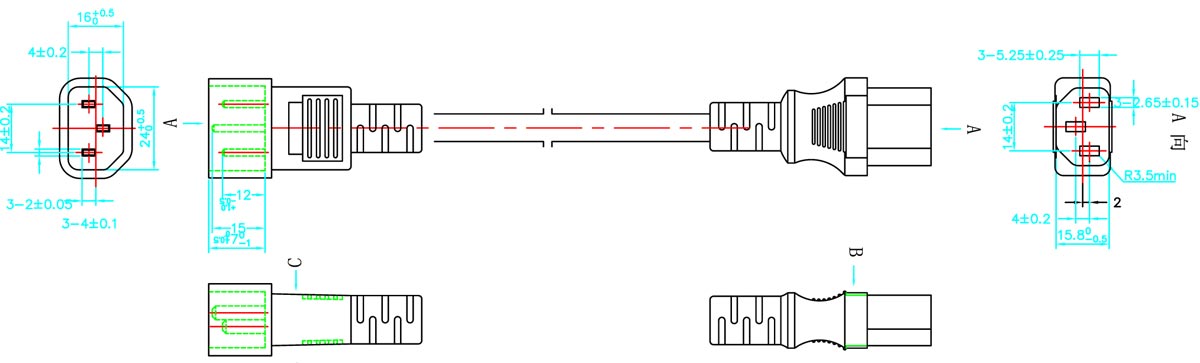

Power Cord Drawing

This drawings just show the plug and receptacle dimension,the cable's length and color could be custom made.

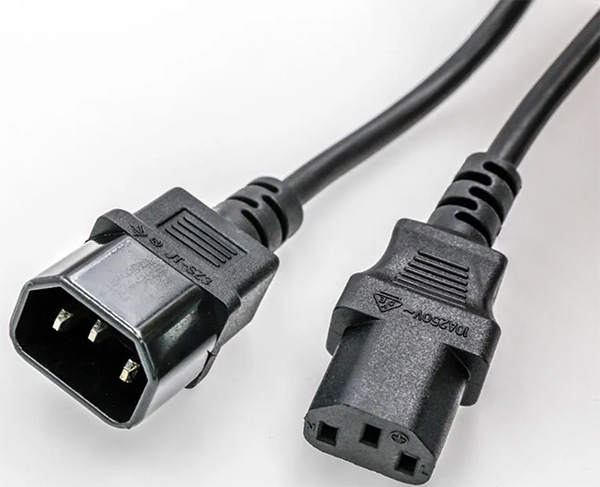

Computer Power Extension Cord IEC-60320-C14 to IEC-320-C13 Power Extension Cable in Custom Long , Color

IEC-320-C14 to IEC-320-C13 Power Extension Cable

Plug type: IEC C14
Standard:IEC 60320
Approvals:VDE,SAA,CCC,UL,KC,PSE
Electricity:10A,13A,15A heavy duty,125V,250V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Oppsite End Options:IEC 302 C13
Quality System:ISO9001:2008
Color:Custom color,white and black are normal
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:JT-SZ3/JT-ST3,XH007A/XH006A ,SZ3/ST3
Plug Standard IEC 60320 C14 , 2 Pole 3 Wire Grounding,Connector Standard IEC 60320 (320) C13 Straight 10A 250V.
