European CEE7/17 Non-rewirable Moulded 16A Plug Power Cord

Other Termination Options:

Click Here

Available Cable Styles:

H03VVH2-F 2x 0,5 mm² H03VVH2-F 2x 0,75 mm²
H05VVH2-F 2x 0,75 mm² H05VVH2-F 2x 1,0 mm²
H03VV-F 2x 0,5 mm² H03VV-F 2x 0,75 mm² H05VV-F 2x 0,75 mm² H05VV-F 2x 1,0 mm² H05VV-F 2x 1,5 mm²
H05RR-F 2x 0,75 mm² H05RR-F 2x 1,0 mm² H05RR-F 2x 1,5 mm² H05RN-F 2x 0,75 mm² H05RN-F 2x 1,0 mm²
H07RN-F 2x 1,0 mm² H07RN-F 2x 1,5 mm²
H03RT-H 2x 0,75 mm² H03RT-H 2x 1,0 mm²
H05V2V2-F 2x 0,75 mm² H05V2V2-F 2x 1,0 mm² H05V2V2-F 2x 1,5 mm²
H05V2V2H2-F 2x0,75 mm²

More Information:

5 Items PVC ROHS

Plug Drawing

Product Images

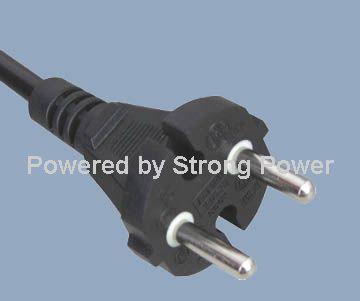

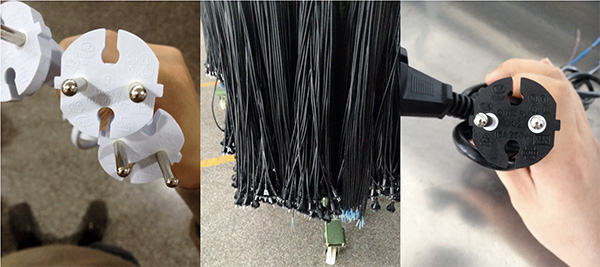

European Power Cord CEE7/17 EU Germany International VDE Certified CE Power Supply 16 Amp 2 Wire Plug

European Power Cord  CEE7/17

Plug type: Euro plug 2 wire
Standard: CEE7 standard sheet 7-17
Approvals:VDE,CEBEC,DEMKO,
F1,IMQVDE,KEMA,NF,OVE,SEMKO
Electricity:16A,250V
Number of Poles and Wires:2 poles 2 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options: ROJ, Termination, IEC 320 C7, C17
Quality System:ISO9001:2008
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number:D02, JT002B，FH-02

The EU German type Europlug with electrical rates 16 A, voltage 220V, according to the CEE7/17 (European plug) and IEC884-1 standard production made most molded with white, black color flat cables, Connector Standards IEC 60320 (320) C17, Unterminated, European CE VDE (European 16 A/ 250 V) and compatible types (Type C), connected with a two-wire ungrounded plug rated at 16 Amp, 250 V defined by CEE 7/17. The Europe AC plugs and Sockets are used in most European countries are the most popular power plugs types.

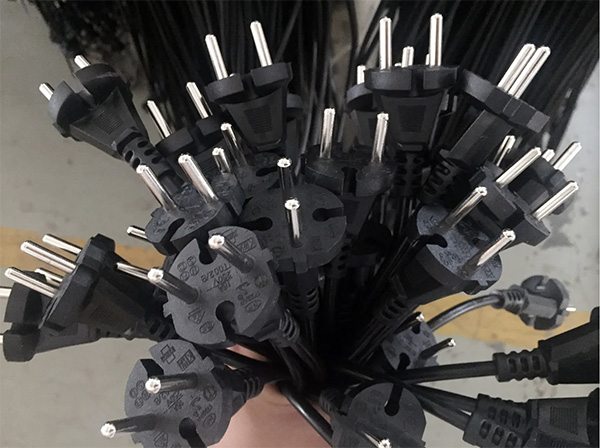

Euro plug CEE7/17 power cords are black and white as a standard color. gray and custom color are available. Custom length and shielded Europe AC power cord, Europe AC power cables available. Terminated, custom stripping.

The European German standard VDE certified the maximum current 16A, voltage 220V, according to the German SCHUKO CEE7/17  and IEC884-1 standard production, suitable for most the small electrical appliances using the two phases European power line, the European type plug connecting the European plug connection with the household appliances.

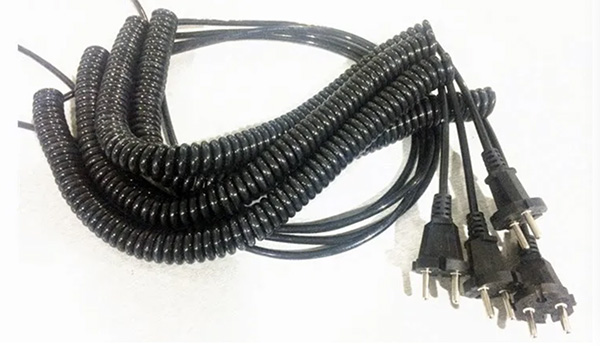

Spiral Powe Cords

Spiral cable PU / PUR / TPU / TPE / PE / PVC coiled cord jacket variety of colors as red, orange, black, white for Vehicle Equipment, generator, Hospital medical machine and other electric spiral cable applications, we have many years experienced in manufacturing spiral cables providing high quality and competitive price of retractable cable, spiral coiled cable, spiral cord, spring cable, spring wire and other custom flexible cable volume, coiled flexible cable, Long term supply coiled power cables,new listing high flexible PU / TPUR / PUR spiral power cords extension cable products.

Approvals:
European Power Cord (Schuko Power Cord) CEE7/17 EU Germany International VDE Certified CE Power Supply Plug accords with Belgium CEBEC, Denmark DEMKO, Finland F1, Italy IMQ, Germany VDE, Holland KEMA, France NF, Austria OVE, Switzerland SEMKO approvals. RoHS and REACH environmental certifications.

Available Opposite End
Normal Stripped, Splitter and ROJ
We manufacturers and supplies CEE 7/17 Europe power cord 2 wire 16A plug AC 2 Pole 2 Wire Non-Grounding Plug custom color, the other end can be stripped, ROJ with custom length.

Common Termination

Europe plug CEE7/17 2 wire 16A plug power cords one end is molded with CEE7 standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylon insulated.

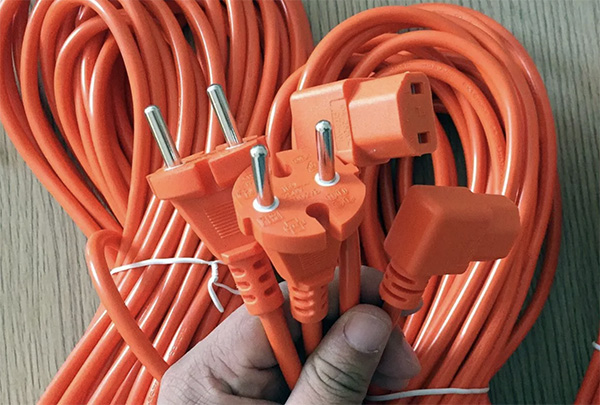

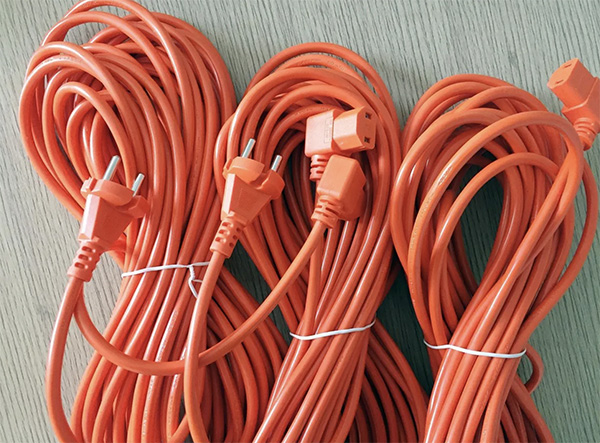

IEC 60320 Connectors

Europe power cord 2 wire 16A plug to IEC C17 power supply cords are normal versions of European power Cord, EU AC power cords with IEC 320 connectors.

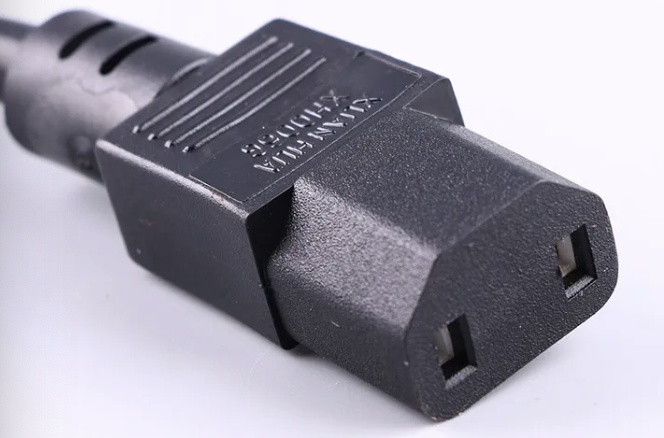

IEC 60320 C17 Connector power cord

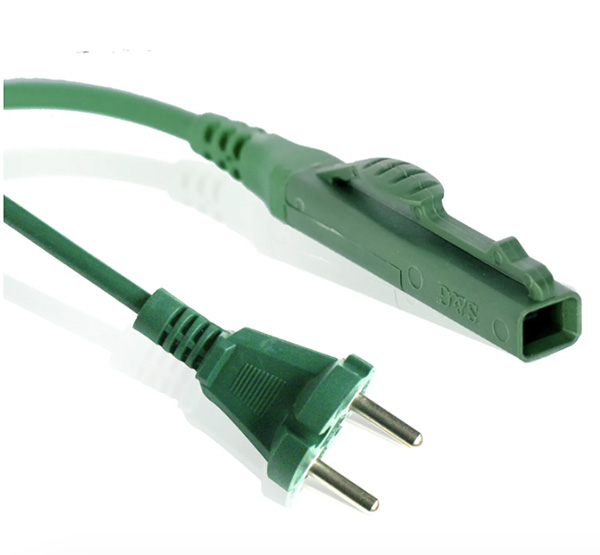

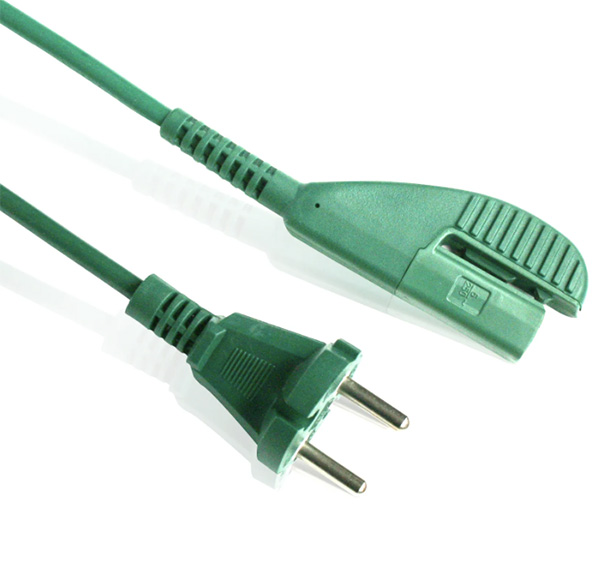

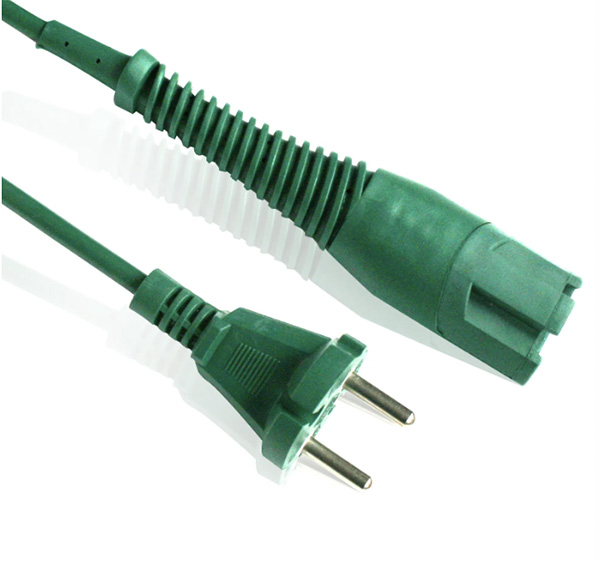

Vorwerk Kobold Vaccum Cleaner Connector

Europe power cord 2 wire 16A plug to Vorwerk Kobold VK130/131, 135/136, VK140/141 connector
