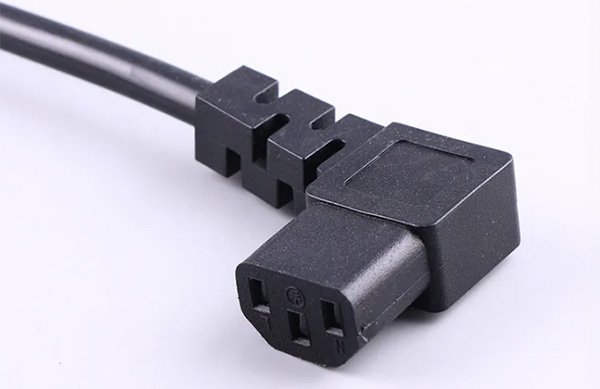

European CEE7/7 Schuko plug to IEC 60320 C13 Power Cord
Europe to C13 computer power cord:Europe plug to C13 Power Cord CEE7/7 Schuko standard 3 porng plug to IEC 60320 C13 cord with European VDE certification;RoHS and REACH approved and molded with low profile ergonomic design mold with IEC 60320 C13 International Connector Approved by VDE , KEMA , OVE ,N , S ,FI , D ,CEBEC safety certifications commonly using in household appliances,All of our Plugs and Socket Europe are fully made with ergonomic design and RoHS / REACH environmental compliant as we are China premier AC power cord manufacturer.

View the technical drawing:CEE7/7 to C13 power cord(PDF)
Contact Us

Detailed description

Male Plug	Europe CEE7/7 Schuko
Female Receptacle	IEC60320 C13 Europe
Amperage	Up to 10A
Voltage	Up to 250V AC
Outer Mold Material	50P PVC
Blade Material	Nickel coated Brass
Color	Custom color available
Cable Length	Custom length available
Certifications	CEBEC,DEMKO,FI,KEMA,NEMKO,NF,OVE,SEMKO,SEMKO,TUV,VDE,CE
Environmental Certifications	RoHS, REACH
Testing	100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Available Wire Styles	H03VV-F 3G 0,5 mm² max.2m H03VV-F 3G 0,75 mm² H05VV-F 3G 0,75 mm² max.2m H05VV-F 3G 1,0 mm² H05VV-F 3G 1,5 mm² H05RR-F 3G 0,75 mm² max.2m H05RR-F 3G 1,0 mm² H05RR-F 3G 1,5 mm² H05RN-F 3G 0,75 mm² max.2m H05RN-F 3G 1,0 mm² H07RN-F 3G 1,0 mm² H07RN-F 3G 1,5 mm² H03RT-H 3G 0,75 mm² max.2m H03RT-H 3G 1,0 mm² H05V2V2-F 3G 0,75 mm² max.2m H05V2V2-F 3G 1,0 mm
MOQ	3000 pcs
Delivery lead date	15-20 days
Packing	Export cartons
Samples	Free samples can be sent within 3 days
Payment	TT 30percent Advance,balance after shipping,L/C

Other Termination Options:

Click Here

More Information:

VDE Certication(PDF)

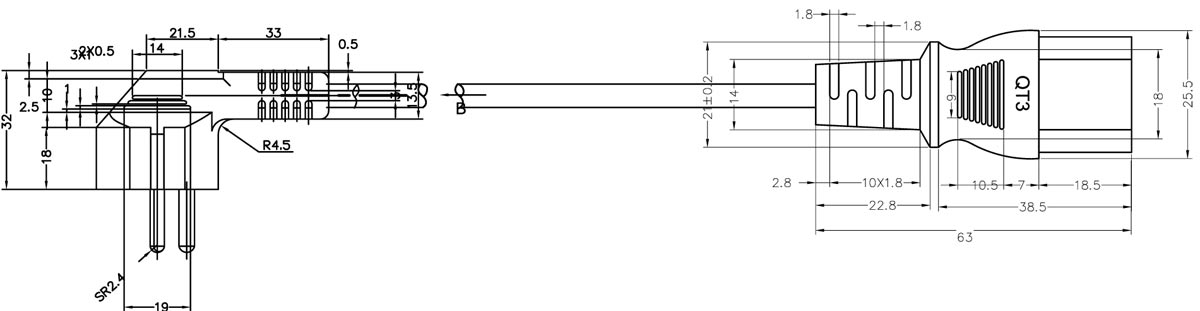

CEE 7/7 Schuko Plug to IEC C13 Drawing

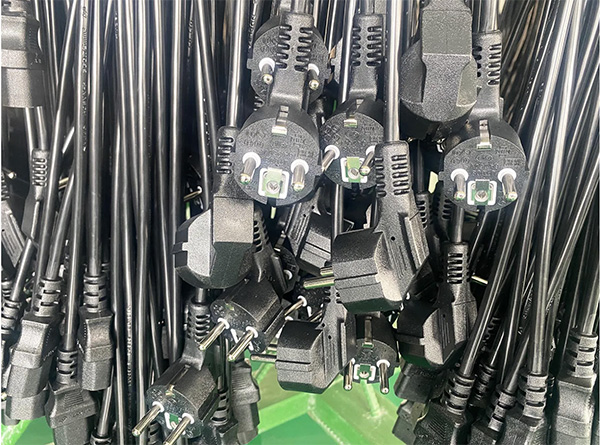

European Plug CEE7/7 plug German Schuko Type which has both the side grounding clips of German CEE7/4 receptacle and a female contact to accept the grounding pin of the French CEE7/5 receptacle

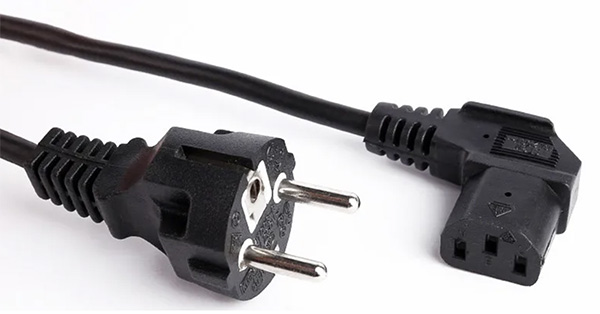

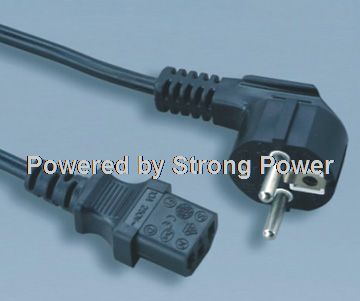

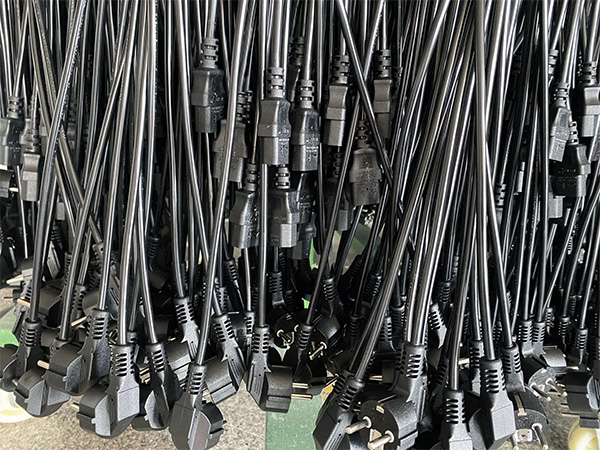

CEE 7/7 Schuko Plug to IEC C13 Europe Power Cord
