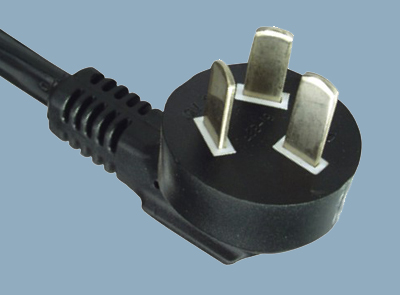

  • 16A Heavy Duty Plug China Power Cord

  • China CCC certified three prong heavy duty GB2099 power cord plug.GB2099 China three prong 16A plug with CCC/3C certification,Built to GB2099 standard and designed for China 16A heavy duty power supply cord applications,,Our Chinese 3C AC power cords are fully made with ergonomic design and RoHS / REACH compliant as we are China leading power cable manufacturer.

    GB2099 16A drawing:PSB-16(JPG)

  • Contact Us
Detailed description
Plug standard China 3P heavy duty plug
Maximum Current rating 16A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Any color available
Temperature Rating minus 40C though plus 75C
Approvals CCC/3C
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 3000pcs
Delivery lead date 15-20days
Samples Free samples can be sent within 3 days


Available Opposite End Connectors:


Standard                                          Part NO


IEC C19                                           XH008A(IEC C19)China


Other Termination Options:


Click Here


Available Cable Styles:


227IEC53(RVV)  1.0-1.5-2.5mm2 X3

245IEC53(YZ)   1.0-1.5-2.5mm2 X3

245IEC57(YZW)  1.5-2.5mm2 X3

245IEC66(YCW)  1.0-1.5-2.5mm2 X3


More Information:


GB2099 16A to C19 drawing(PDF)

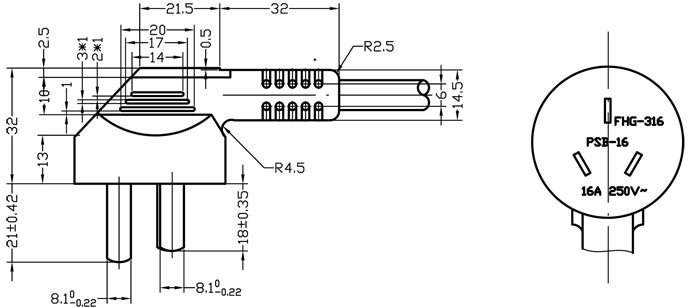

GB2099 Power Cord Plug Drawing


GB2099 Power Cord Plug

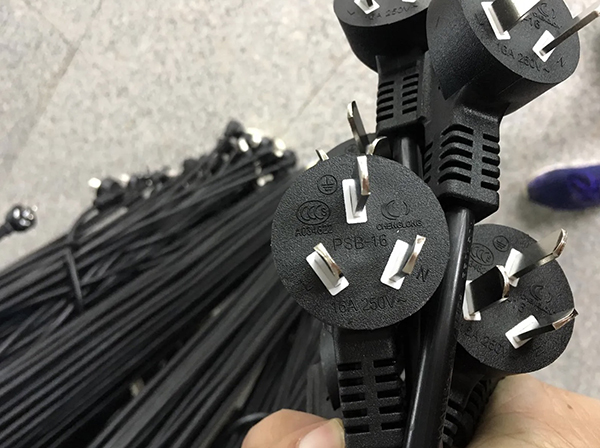

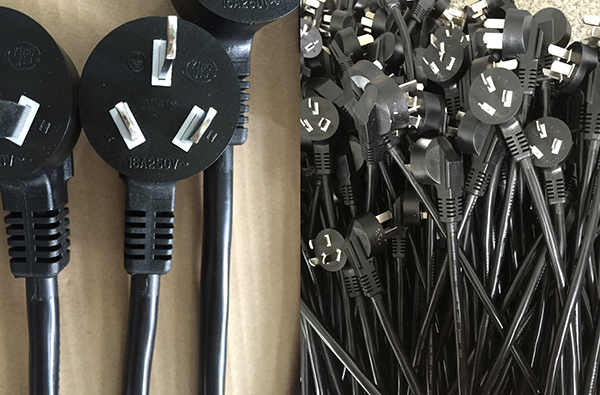

China 16A Plug Power Cord


China AC Power Cords, Power Supply Cords CCC 3C Approved 16 Amp Heavy Duty 250 Volt AC, 2 Pole 3 Wire Grounding, Type I Plug
China AC Power Cords, 16 Amp Heavy Duty Plug

Plug type:GB 2009 Type I China plug
Standard:2099.1,GB 1002
Approvals:CCC,3C
Electricity:16A,250V
Number of Poles and Wires:3 poles 3 wires
Cable length:3-foot,6-foot, Custom long
Cable Color: White, Black, Custom color
Termination Options:ROJ,IEC,terminations
Quality System:ISO9001:2008
Color: Custom color, white and black are normal
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model number: PSB-16
China AC Power Cords Plug Standard GB 2099.1-1996, GB 1002-1996, Type I Plug GB 2099.1-1996, GB 1002-1996, Type I Plug China Power Cords and AC Cables Connector Standards IEC 60320 (320) C-19, C-19 Locking, Unterminated.China GB2009 (Chinese 16 Amp/250 Voltage) and compatible types (Type A), connected with a three-wire grounding plug heavy duty rated at 16 A, 250 V defined by CCC. The China AC plugs and Sockets are similar in appearance to the Australian and Argentine plugs.

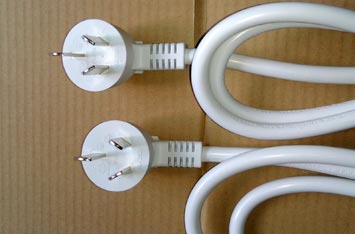

China 16A heavy duty power cord white as the standard color. gray and custom colors are available. Custom length and shielded China cord sets light duty China AC power cables available. Terminated, custom stripping.
China 16A Power Cord

China CCC Heavy Duty Type I Plug


Available Opposite End
Normal Stripped, Splitter, and ROJ

We manufacturers and supply China 16A Heavy Duty Power Cord , GB2099 3 wire,grounding AC Power Cords, the other end can be stripped, ROJ with custom length.

Available Opposite End


Common Termination

The China 16A Heavy Duty Power Cord 250 Volt AC, 2 Pole 3 Wire Grounding GB2099 Standard CCC/3C approved CCC Power Cord is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


IEC 60320 Connectors

The China 16A Heavy Duty Power Cord 250 Volt AC, 2 Pole 3 Wire Grounding GB2099 Standard CCC/3C approved CCC Power Cord to IEC 60320 C19 PDU Power Cords is normal versions of China ac power cords with IEC connectors.

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord


Package

China 16A Heavy Duty Power Cord 250 Volt AC, 2 Pole 3 Wire Grounding GB2099 Standard CCC/3C approved CCC Power Cord Bulk packed with export cartons, pallets.
Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in China and all Countries in the world. Our extensive and complete China power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for China AC  power cords as China leading China power cord manufacturer and supplier. all of Chinas AC power cables are approved by CCC or 3C and Rohs  /  Reach compliant.
