AC Power Cord > Power Cord > China Power Cords > 2 Prong Plug China Power Cord
2-Prong-Plug-China-Power-Cord
  • 2 Prong Plug China Power Cord

  • GB 1002 GB2099 2 prong plug power cord with CCC certification Rated up to 6A 250V Built to China 3C standard and designed for China 2 conductor power supply cord applications,GB2099 to C7describe China plug molded with IEC 60320 C7 connector.All of our China CCC AC power cords are fully made with ergonomic design and RoHS / REACH compliant as we are China leading power cable manufacturer.

    link here:China GB1002 prong plug(10A)

    Link here China GB1002 to C7 cord:PBB-6/ST2

  • Contact Us
Detailed description

Plug standard China 2p plug
Maximum Current rating 6A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 2 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Any color available
Temperature Rating minus 40C though plus 75C
Approvals CCC
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 3000pcs
Delivery lead date 15-20days
Samples Free samples can be sent within 3 days


Available Opposite End Connectors:


Standard                                                 Part NO


IEC C7                                                    ST2(IEC C7)China


Other Termination Options:


Click Here


Available Cable Styles:


60227IEC52(RVV)    0.5-0.75mm2 X2(round/flat)

60227IEC53(RVV)    0.75mm2 X2(flat)

60245IEC51(RX)     2*0.75mm2 X2


More Information:


PBB-6 drawing(PDF)

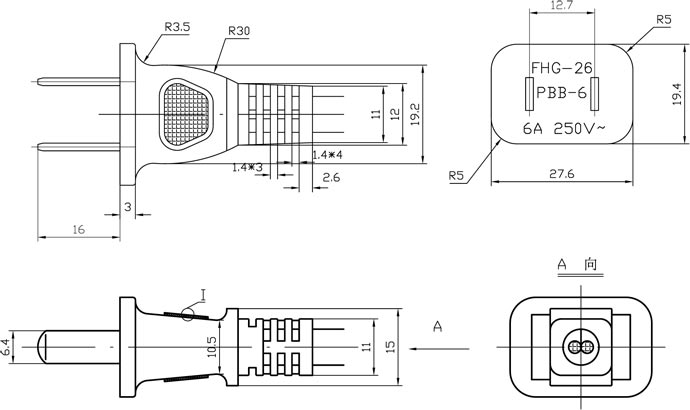

China GB2099 PLug Drawing


China GB2099 Plug


China Power Cord 6 Amp 250 Volt 2 Wire Non-Grounding 2099 GB Standard CCC 3C Approved Type A Plug AC Power Supply Cords
China 6 Amp 2 Wire  AC Power Supply Cords

Plug type: 2 wire plug
Standard: GB 2099
Approvals:CCC, 3C
Electricity:6A,250V
Number of Poles and Wires:2 poles 2 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options: ROJ, Termination, IEC 320 C7, C17
Quality System:ISO9001:2008
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number: PBB-6
Plug Standard GB 2099.1-1996, GB 1002-1996, 6A 2 pole 2 wires,non-polarized, non-grounding Type A Plug  Connector IEC 60320 (320) C-7, C-17, Unterminated. China GB2009 (Chinese 6 A/250 V) and compatible types (Type A), connected with a two-wire ungrounded plug rated at 6 A, 250 V defined by CCC. The China AC plugs and Sockets are similar in appearance to the Australian and Argentine plugs.
China power cords are black and white as the standard color. gray and custom color are available. Custom length and shielded China cord sets light duty China AC power cables available. Terminated, custom stripping.

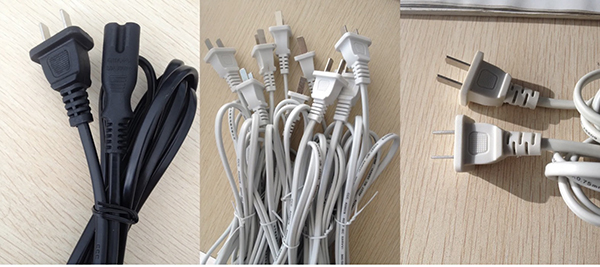

China Power Cord

China 2 Pin 6A Plug

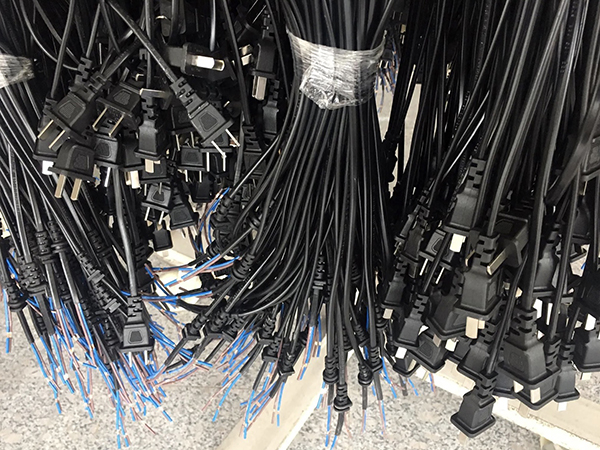

Available Opposite End

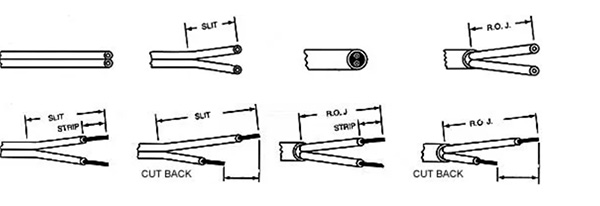

Normal Stripped, Splitter, and ROJ

We manufacturers and supply China Power Cord , GB2099 2 wire,non-grounding AC Power Cords, the other end can be stripped, ROJ with custom length.

Available Opposite End

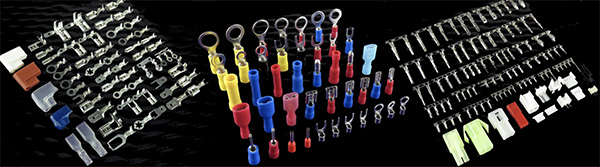

Common Termination

The China Power Cord 6Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding GB2099 Standard CCC/3C approved Type A Plug is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


IEC 60320 Connectors

The China Power Cord 6Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding GB2099 Standard CCC/3C approved Type A Plug to IEC 60320 C7 is normal versions of China ac power cords with IEC connectors.

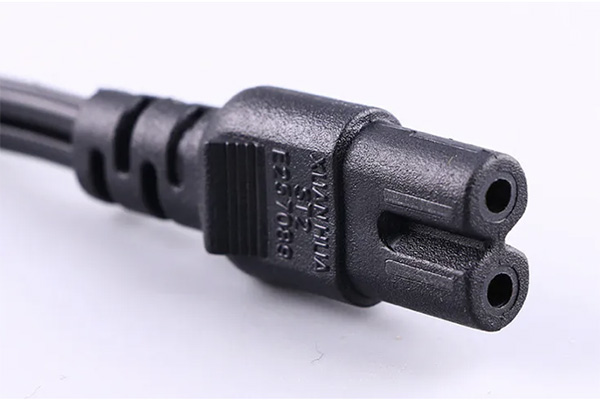

IEC 60320 C7 Power Cord

IEC 60320 C7 Power Cord


Power Cord Available Switches

China Power Cord 6Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding GB2099 Standard CCC/3C approved Type A Plug is used to molded with online switches for salt lamp power supply cords.

Swich Series

The color of online swtiches mostly white, black and transparent

Power cord with Swich

Power Supply Cord with Swich

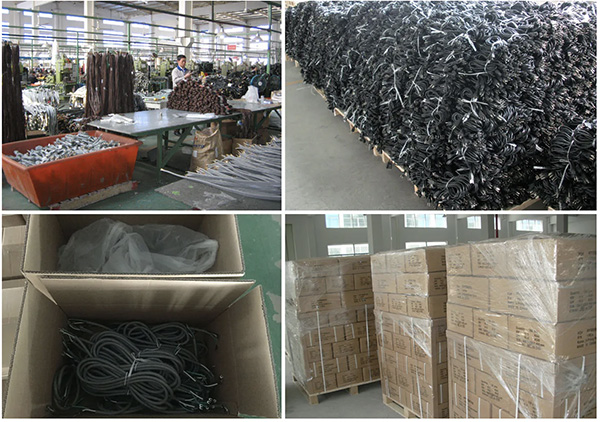

Package

China Power Cord 6Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding GB2099 Standard CCC/3C approved Type A Plug Bulk packed with export cartons, pallets.

Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in China and all Countries in the world. Our extensive and complete China power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for China AC  power cords as China leading China power cord manufacturer and supplier. all of Chinas AC power cables are approved by CCC or 3C and Rohs  /  Reach compliant.
