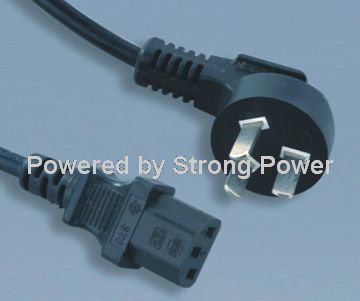

China Plug to IEC C13 Computer Power Cable
China to C13 power cord:Chinese GB2099 standard 3 conductor plug to IEC 60320 C13 connector with China CCC (3C) Safety Approvals designed for China using computer and household appliances, All of our Plugs and Sockets China are fully made with low profile ergonomic design and RoHS / REACH compliant as We are Famous Trade AC power cord manufacturer.

View the technical drawing:China GB2099 to C13 power cord drawing(PDF)
Contact Us

Detailed description

Male Plug	China GB2099 3P plug
Female Receptacle	IEC 60320 C13 China
Amperage	Up to 10A
Voltage	Up to 250V AC
Outer Mold Material	50P PVC
Blade Material	Nickel coated Brass
Color	Any color available
Cable Length	Any length available
Certifications	CCC/3C
Environmental Certifications	RoHS, REACH
Testing	100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Available Wire Styles	H03VV-F 3G0.5-0.75 H05VV-F 3G0.75-2.5 H03RT-F 3G0.75-1.0 H05RR-F 3G0.75-1.5 H05RN-F 3G0.75-1.0
MOQ	3000pcs
Delivery lead date	15-20 days
Packing	Export cartons
Samples	Free samples can be sent within 3 days
Payment	TT 30percent Advance,balance after shipping,L/C

Other Termination Options:

Click Here

More Information:

5 Items PVC ROHS

China GB2099 to IEC 60320 C13 Drawing

The Chinese GB 2099.1-1996 is physically the same as the Argentinean IRAM 2073. The GB 2099.1-1996 designation is merely a separate approval by this country's standards organization mold with IEC 60320 Connector.

China Plug IEC 60320 C13 Monitor Power Cord (PC Power Cord/Computer Power Cord/AC Power Cable) in Custom Long,Color
China Power Cord IEC 60320 C13 Computer Power Cable

Plug type: 3 wire China plug
Standard: GB 2099
Approvals:CCC ,3C
Electricity:10A,250V
Number of Poles and Wires:2 poles 2 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Opposite End: IEC 320 C13 Straight
Quality System:ISO9001:2008
Color: Custom color, white and black are normal
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number: PSB-10A/ST3
China AC Power Cords Plug Standard GB 2099.1-1996, GB 1002-1996, Type I Plug GB 2099.1-1996, GB 1002-1996, Type I Plug China Power Cords and AC Cables Connector Standards GB 17465.1-1998, IEC 60320 (320) C-13, C-13 Locking, C13 right angle, C13 left angle, IEC C13 custom made waterproof. China GB2009 (Chinese 10 A/250 V) and compatible types (Type A), connected with a three-wire grounded plug rated at 10 A, 250 V defined by CCC. The China AC plugs and Sockets are similar in appearance to the Australian and Argentine plugs.
China Power Cord IEC C-13 are black and white as a standard color. gray and custom color are available. Custom length and shielded China cord sets light duty China AC power cables available. Terminated, custom stripping.
China Power Cord to IEC 60320 C13

China Spring Cable to IEC C13

China Power Cords to C13 Connector

China 3 Wire AC Power Cord to IEC 60320 C13

GB2099 China 3 Prong Plug to C13

China Power Supply Cord to IEC C13 Connector

Available IEC 60320 C13 Types

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Locking Power Cord

Package

China Power Cord to IEC 60320 C13 connector Bulk packed with export cartons, pallets.
Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in China and all Countries in the world. Our extensive and complete China power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for China AC power cords as China leading China power cord manufacturer and supplier. all of China’s AC power cables are approved by CCC or 3C and Rohs / Reach compliant.
