AS/NZS 3112 Australia 3 prong round grounded pin AC power cord plug with SAA certification Rated up to 10A 250V Built to SAA standard and designed for custom 3 prong Australia power supply cord applications,with IEC C13,with IEC C5,with IEC C15,with IEC C19,All of our Australia AC mains leads are fully made with ergonomic design and RoHS / REACH compliant as we are China leading power cord manufacturer.
|Connector Standard||Australia 3-conductor Non-rewirable round pin plug|
|Maximum Current rating||10A|
|Number of Poles and Wires||2 poles, 3 wires|
|Outer Mold Material||50P PVC|
|Blade Material||Nickel coated Brass|
|Color||Custom color available|
|Cable length||Custom length available|
|Temperature Rating||minus 60C though plus 105C|
|Environmental Certifications||RoHS, REACH|
|Testing||Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity|
|Samples||Free and could be sent within three days|
|Cord Type||Electrical Rating (Amps/Volts)|
3x1.0 H05VV-F V-75 0.6/1KV (Q031043)
3X1.5 H05VV-F V-75 0.6/1KV (Q031043)
Australia Power Cord 10A Round Grounding Pin Plug AS NZS 3112 AC 2 Pole 3 Wire Power Supply Cord，SAA Certifed
Australia Round Grounding Pin Plug Power Supply Cord

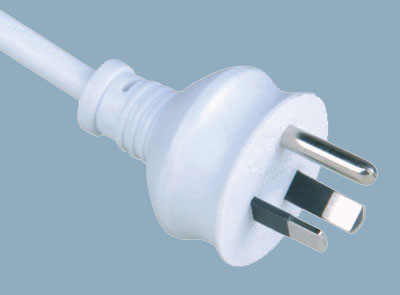

Australia Power Cord 10A Round Grounding Pin Plug, 3 pin plug with round earth pin mains power cables.

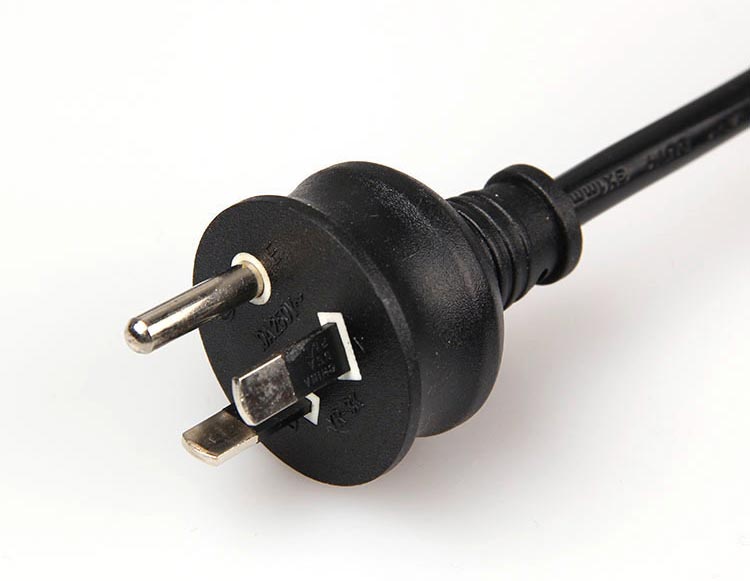

Plug type: 3 pin plug with round earth pin
Standard: AS NZS 3112
Number of Poles and Wires:2 poles 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options: ROJ, Termination, IEC connectors
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS

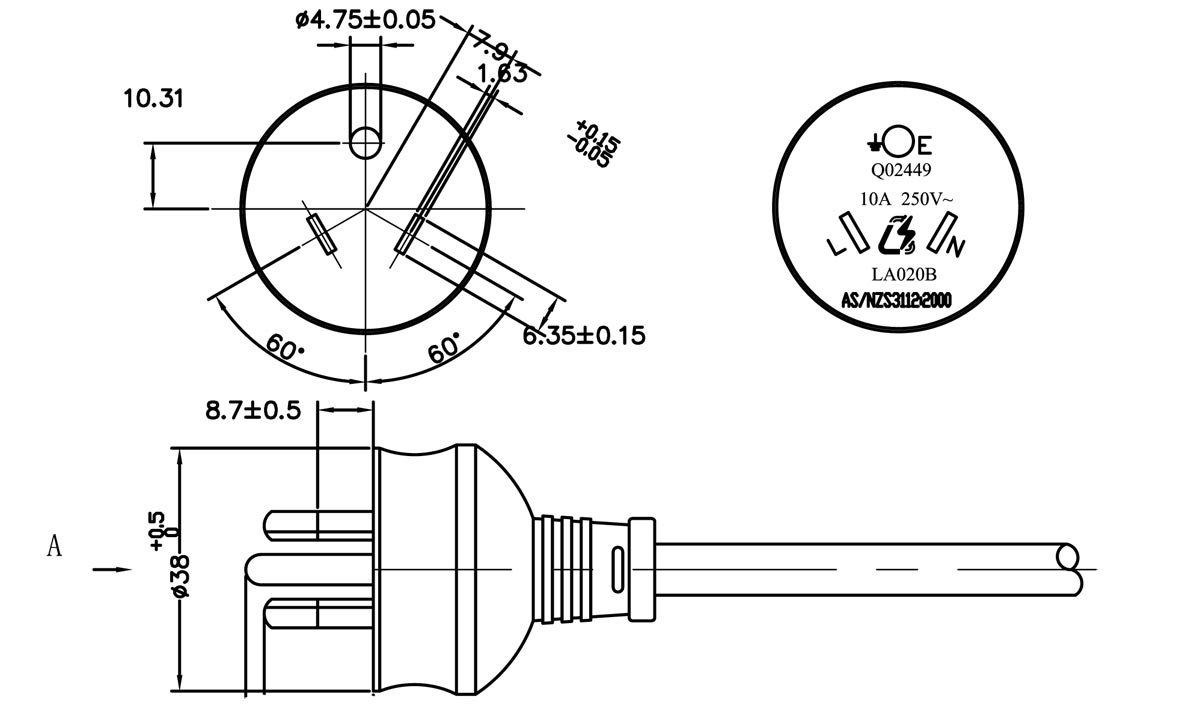

Model Number: LA020B

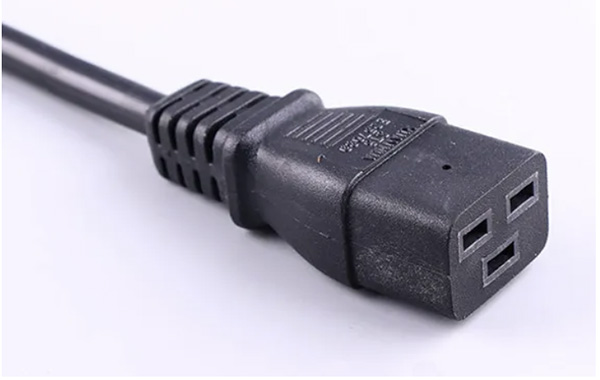

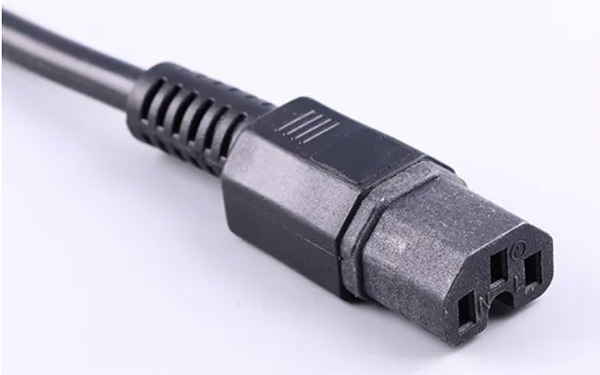

Australia AC Power Cords AS NZS 3112, 10 Amp 250 Volt AC, 2 Pole 3 Wire Round Grounding Type Plug, Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated. Australia AS NZS 3112 (Australian 10A / 250 V) connected with a Three-wire earthed plug rated at 10 A , 250 V defined by SAA. The Australia AC plugs and Sockets are similar in appearance to the Argentine and Chinese plugs.
Australia Power Cord 10A Round earth pin plug is black and white as the standard color. gray and custom color are available. Custom length and shielded Australia power cord medium duty, Australia AC power cables available. Terminated, custom stripping.
3 pin plug with round earth pin molded to H03VV-F 3G0.75mm2, HO5VV-F 3G0.75/1.0/1.5mm2, H07VV-F 3G0.75/1.0/1.5mm2 ESV170111(ESV120165), H05RN-F 3G0.75/1.0mm2, HO5RR-F 3G0.75/1.0/l.5mm2, H07RN-F 3G 1.0/1.5mm2 ESV 70112(ESV 120080).
Australia Power Cord,10A AS NZS 4417, AS NZS 3112, power supply cords, New Zealand mains power cable SAA 10 Amp.In Australia, the electricity supplied by the normal wall inlet is called the “mains power system” and therefore Australian power cords are often referred to as Australia mains leads, Australia mains cords, Australia mains cables, Australia line cords, and mains power leads.
Available Opposite End

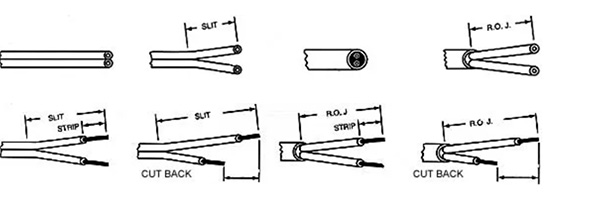

Normal Stripped, Splitter and ROJ
We manufacturers and supplies Australia Power Cord, AS NZS 3112 AC 3 Pole 3 Wire Non-Grounding Plug, custom color, the other end can be stipped, ROJ with custom length.

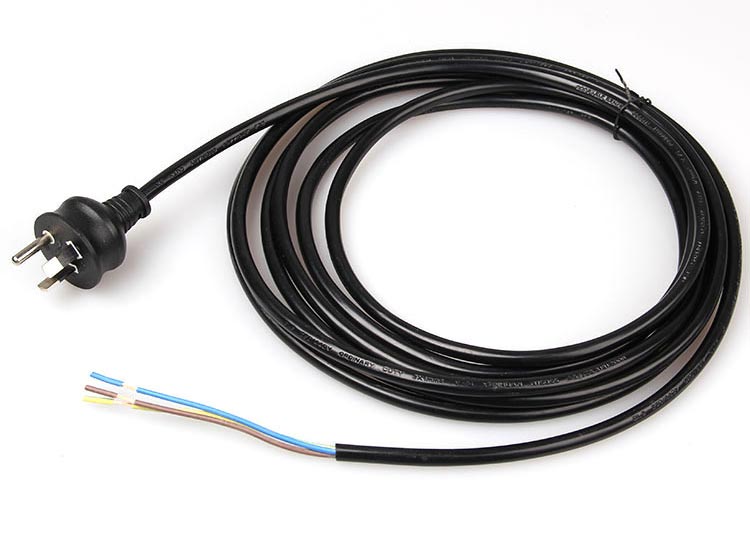

Australia power cords, one end is molded with AS standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.
