AC Power Cord > Power Cord > Australia Power Cords > Australia AS/NZS 3112 Piggyback/Pigtail Plug Power Cord
Australia-AS-NZS-3112-Piggyback-Pigtail-Plug-Power-Cord

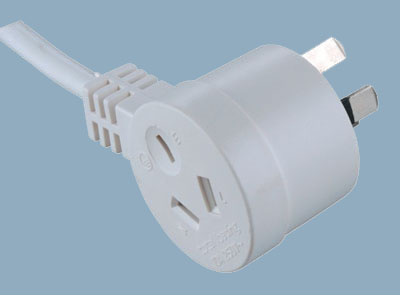

  • Australia AS/NZS 3112 Piggyback/Pigtail Plug Power Cord

  • Australia 3 prong pigtail plug AC power cord outlet adapter with SAA certification Rated up to 10A 250V Built to AS/NZS 3112 standard and designed for 3 prong Australia power supply cord applications.With IEC C13 describe AS piggyback plug molded with IEC 60320 C13 connector.
  • Contact Us
Detailed description

Plug Standard AS/NZS 3112, Non-rewirable pigtail Plug
Maximum Current rating 10A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flamability Rating UL 94V-0
Color Custom color available
Cable length Custom length available
Temperature Rating minus 60C though plus 105C
Approvals Australia SAA
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 2000pcs
Samples Free and could be sent within three days

Available Wire Styles


Cord Type Electrical Rating (Amps/Volts)
H05VV-F 3x0.75-1.5mm2
H07VV-F 3x1.0-1.5mm2
10/250

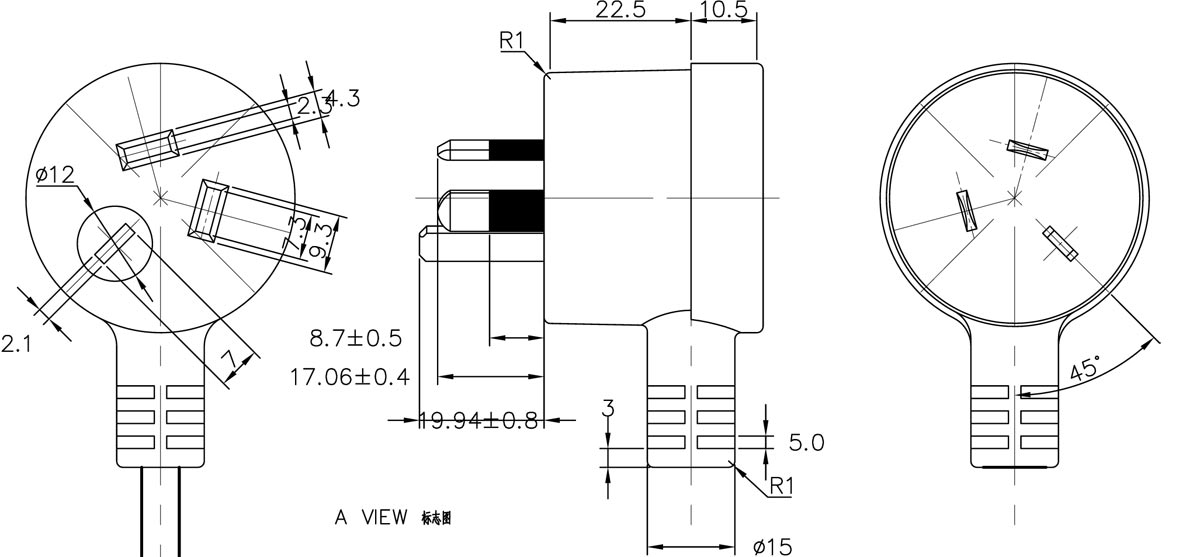

Australia Piggyback Plug Drawing


Australia Piggyback Plug


Australian Standard Piggyback Extension Cord 10A


Australia Power Cord Piggy Back,Pigtail 10A AS NZS 4417,3112 AC 2 Pole 3 Wire Grounding Plug Power Supply Cord

Australia Piggy Back,Pigtail Plug Power Supply Cord

Plug type: Australia Plug with Piggy back socket
Standard:AS NZS 3112
Approvals:SAA
Electricity:10A,250V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:ROJ, Termination, IEC 320 C5, C13,C15,C19
Quality System:ISO9001:2008
Color:White and black are normal,Custom color
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:XH025A
Australia AC Power Cords AS NZS 3112, 10 Amp 250 Volt AC, 2 Pole 3 Wire Grounding Type I  Piggy Back,Pigtail Plug ,Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated. Australia AS NZS 3112 (Australian 10A / 250 V) and compatible types (Type I), connected with a Three-wire ungrounded plug rated at 10 A , 250 V defined by SAA.The Australia AC plugs and Sockets are similar in appearance to the Argentine and Chinese plugs.
Australia power cords are black and white as standard color. gray and custome color are  available. Custom length and shielded Australia power cord heavy duty,Australia AC power cables available. Terminated, custom stripping.
Australia Power Cord Piggy Back

Pigtail 10A AS NZS 4417 3112 AC 2 Pole 3 Wire Grounding Plug Power Supply Cord

Australia Piggy Back Pigtail Plug

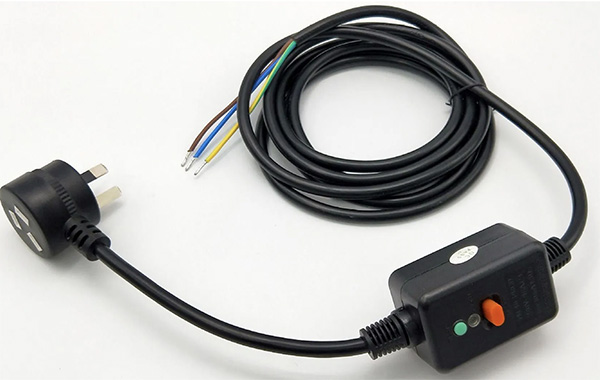

Australia Piggyback Mains Cable with GFCI

Australia Piggyback Mains Cable with GFCI

Australia Power Cord,10A AS NZS 4417, AS NZS 3112, power supply cords, New Zealand mains power cable SAA 10 Amp. In Australia, the electricity supplied by the normal wall inlet is called the “mains power system” and therefore Australian power cords are often referred to as Australia mains leads, Australia mains cords, Australia mains cables, Australia line cords, and mains power leads.


Available Opposite End
Normal Stripped, Splitter and ROJ

We manufacturers and supplies Australia Power Cord, AS NZS 3112 AC 2 Pole 3 Wire Non-Grounding Plug, custom color, the other end can be stripped, ROJ with custom length.

Available Opposite End

Australia Piggy Back AC Power Cord


Common Termination

Australia power cord Piggy Back,Pigtail one end is molded with AS standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or  nylon insulated.

Common Termination

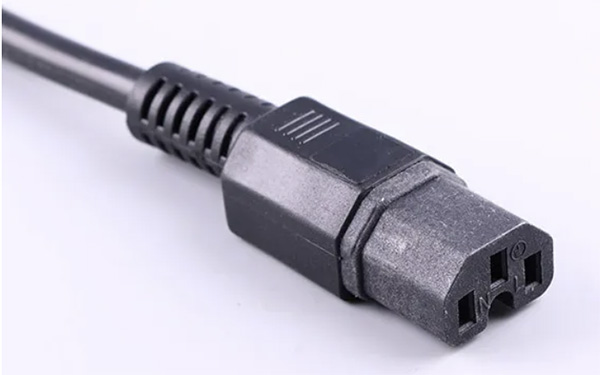

IEC 60320 Connectors

Australia Power Cord Piggy Back,Pigtail to IEC 320 C5 laptop, Australia plug to IEC C13 computer power cable and molded with IEC C19 as PDU power cords are normal versions of Australia ac power cords with IEC connectors.

IEC 60320 C13 Power Cord Straight

IEC 60320 C13 Power Cord Straight

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Power Cord Locking

IEC 60320 C13 Power Cord Locking

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord

Australia Power Cord Piggy Back to IEC 60320 C13

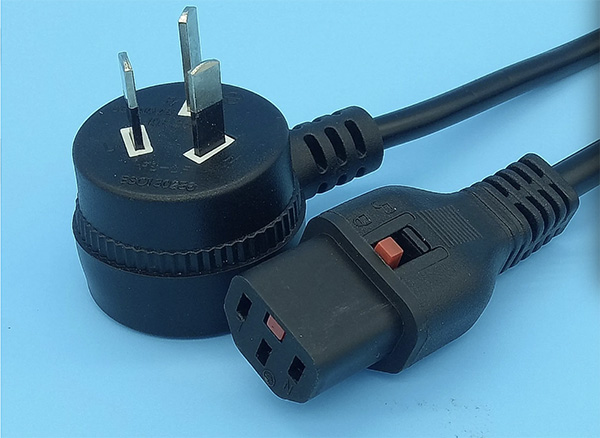

Australia Power Supply Cord Pigtail to IEC 60320 C13 Locking

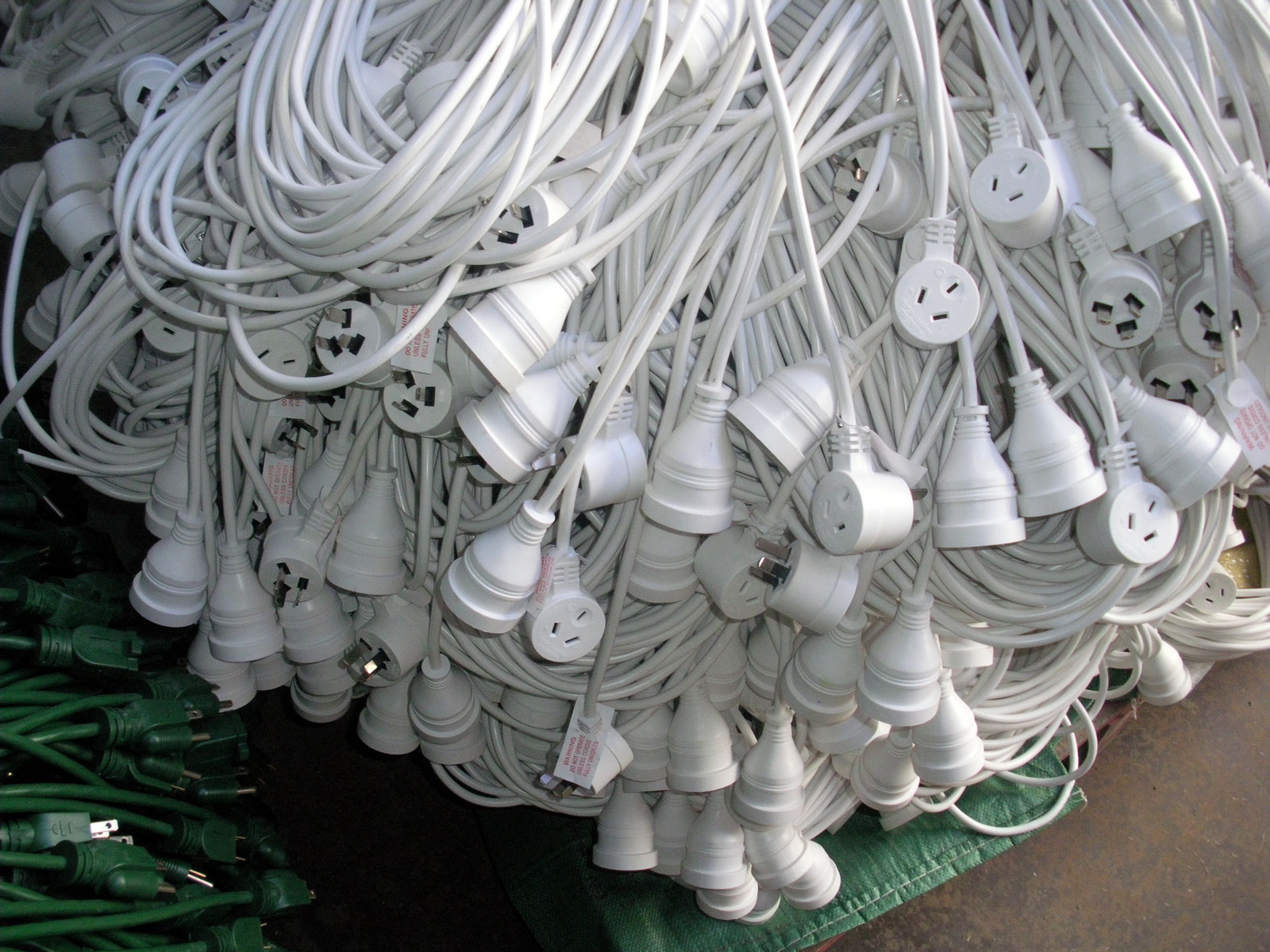

Package

Australia power cord,10A AS NZS 4417, AS NZS 3112 Bulk packed with export cartons, pallets.

Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in Australia, New Zealand  and all Countries in the world. Our extensive and complete Australia power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Australia power cords as China leading Australia power cord manufacturer and supplier.all of Australia power cords are approved by SAA with Rohs and Reach compliant.
