AC Power Cord > Power Cord > America Power Cords > NEMA 5-15P Plug To IEC 60320 C5 Laptop Power Cord
NEMA-5-15P-Plug-To-IEC-60320-C5-Laptop-Power-Cord

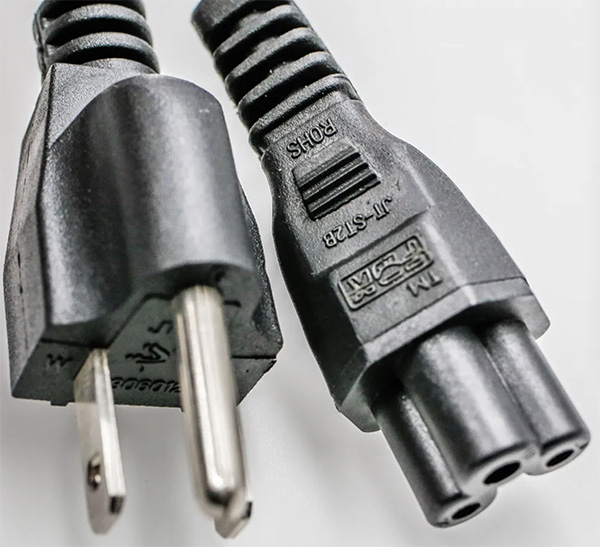

  • NEMA 5-15P Plug To IEC 60320 C5 Laptop Power Cord

  • Laptop Power Cord:NEMA 5-15P standard USA 3 pin plug to IEC C5 with North America approvals.

    NEMA 5-15P To IEC 320 C5 laptop power cord plug with USA certification,Built to the American NEMA 5-15P and IEC 60320 standard commonly using in Laptop / Notebook / Notepad Power Adapter applications. Rated up to 5A 120V. 100percent of our American power cords are mold with low profile ergonomic design ; high quality and RoHS / REACH environmental compliant.

    Link to:5-15P to C5 power cord drawing(PDF).

  • Contact Us
Detailed description

Male Plug American NEMA 5-15P
Female Receptacle America IEC60320 C5
Conductors 3 Wire
copper wire stranding 41 strands of 0.16mm
Jacket Material PVC
Temperature Rating Up to 105°C
Conductor Color Code Black, White and Green / NACC (North American color code)
Voltage Up to 125 Volts AC
Amperage Up to 10 Amps
Testing 100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Certifications USA UL CUL
Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008


Available Cable Styles:


SVT AWG 18X3C

SPT-1 AWG 18X3C

SPT-2 AWG 18X3C

SJT AWG 18X3C

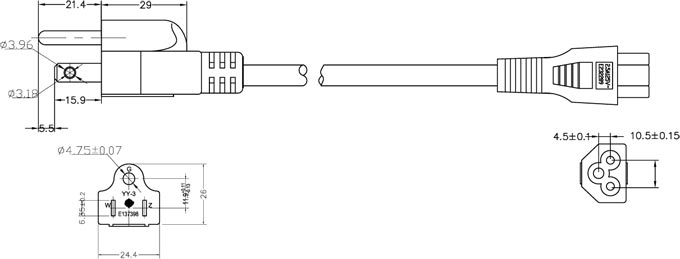

NEMA 5-15P to IEC C5 Drawing

The North American NEMA 5-15 is the standard 3 wire wall receptacle found in the United States molded with IEC 60320 C5 connectors and usual SJT , SVT Cables 3FT,6FT laptop power cord,computer power supply cable.

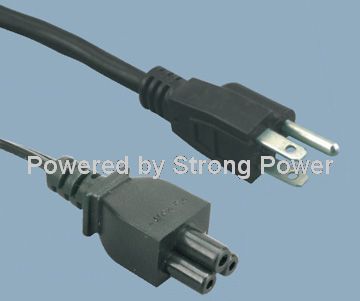

NEMA 5-15P Plug to IEC 60320 Power Cord


US Power Supply Cord NEMA 5-15P IEC 60320 C5 Mickey Mouse Laptop / Notebook / Notepad Adapter, Clover Type Cloverleaf Power Cable

US IEC C5 Power Supply Cord

US IEC C5 Power Supply Cord 15 Amps 125 Voltage three prong plug molded with custom long ,color PVC or rubber cable and IEC 320 C5 connector.
Plug type: US NEMA 5-15 Plug
Standard:NEMA 5-15P
Oppsite End:IEC 320 C5 Straight
Approvals:UL, cUL
Electricity:2.5A, 125V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:ROJ, Termination
Quality System:ISO9001:2008
Color:White and black are normal,Custom color
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:JT-3/JT-ST2B
Plug Standard America NEMA 5-15P earthed plug with Maximum Electric Current rating 15A ,Maximum Voltage 125V, Number of Poles and Wires 2 poles, 3 wires Grounded, Connector Standard IEC 60320 (320) C5 straight 2.5A 250V ” Clover Type Power Cable , Cloverleaf  , Mickey Mouse Laptop / Notebook / Notepad Power Adapter  Mains lead receptacle standards- tested to ANSI/UL 62 and 817 and can/CSA C22.2 no. 21 and 49.

NEMA5-15P to IEC 60320 C5 Power Cord

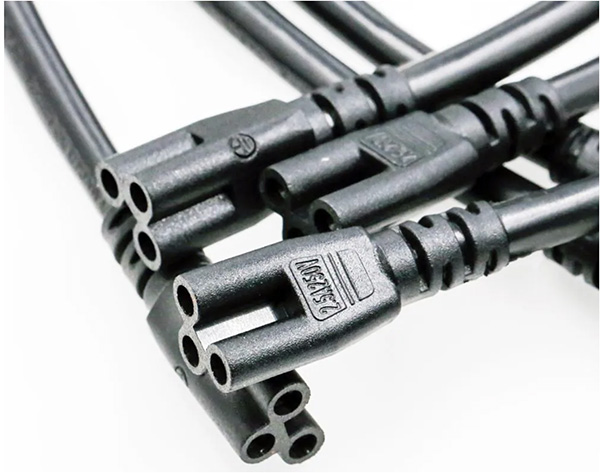

IEC 60320 C5 Power Supply Cord

Double End Connector Cable for T5 T8 for Integrated LED Tube ZJ-ST5

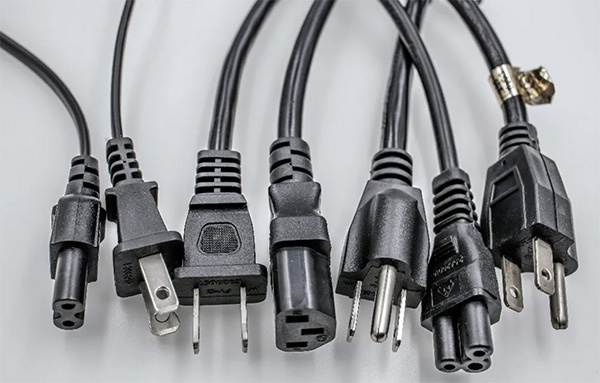

IEC 60320 AC Power Cords Series

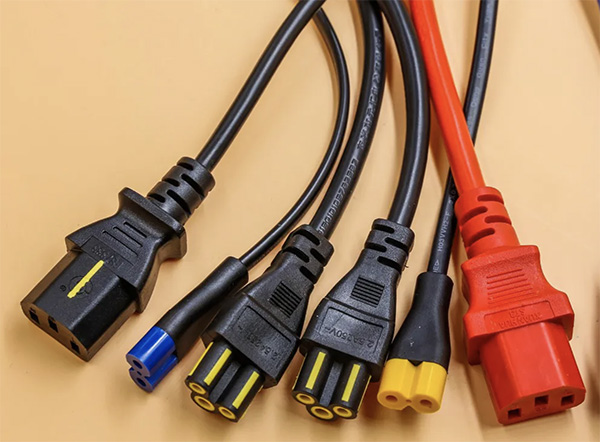

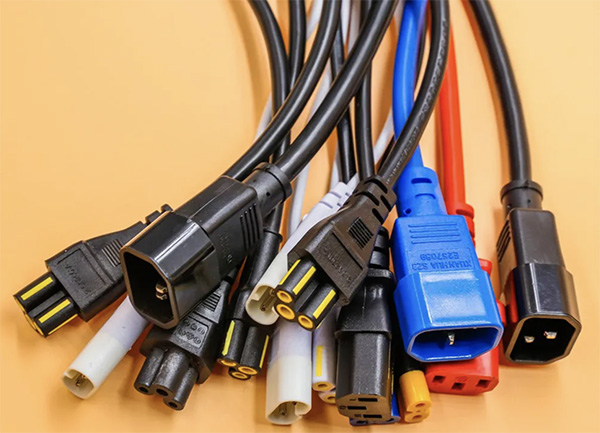

Color IEC 60320 Power Cords

Color IEC Connectors

US IEC C5 Power Supply Cord are black and white as standard color. gray and custome color are available. Custom length and shielded America power cord, America AC power cables available. Terminated, custom stripping.

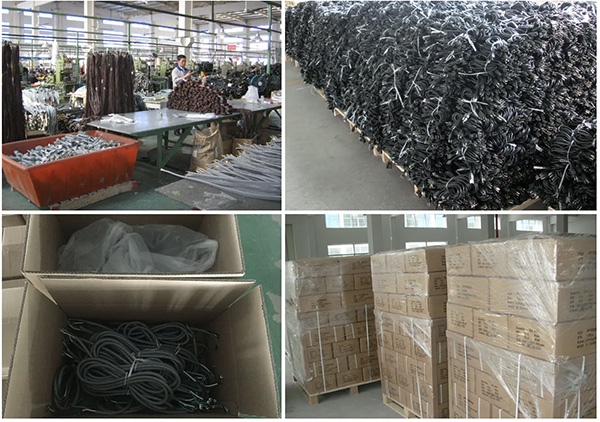

Package

NEMA 5-15P Plug IEC 320 C5 connector power cords bulk packed with export cartons, pallets.
Package
