AC Power Cord > Power Cord > America Power Cords > NEMA 5-15P Plug to IEC 60320 C19 Power Cord
NEMA-5-15P-Plug-to-IEC-60320-C19-Power-Cord

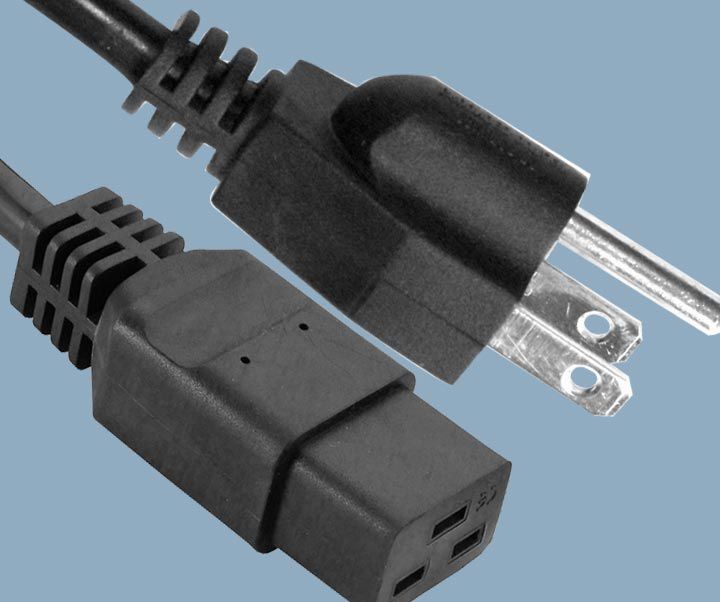

  • NEMA 5-15P Plug to IEC 60320 C19 Power Cord

  • North American 15A 125V NEMA standard 2 pole 3 wire plug to IEC C19 Power Cord made with high quality and RoHS / REACH approved commonly used in high power data center and server environments with devices such as servers, PDUs and other data center and network gear.
  • Contact Us
Detailed description

Male Plug America NEMA 5-15P plug
Female Receptacle IEC60320 C19 America
Amperage Up to 20A
Voltage Up to 125V AC
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Any color available
Cable Length Any length available
Certifications UL/CSA
Environmental Certifications RoHS, REACH
Testing 100percent are individually tested
Available Wire Styles 18/3 SJTW/SJTOW/SJTOOW STW/STOW/STOOW SPT-2 SJT/SJTO/SJTOO ST/STO/STOO SPT-3 HPN
16/3 SJTW/SJTOW/SJTOOW STW/STOW/STOOW SPT-2 SJT/SJTO/SJTOO ST/STO/STOO SPT-3 HPN
14/3 SJTW/SJTOW/SJTOOW STW/STOW/STOOW SPT-3 SJT/SJTO/SJTOO ST/STO/STOO HPN
MOQ 3000pcs
Delviery lead date 15-20days
Pakcing Export cartons
Samples Free samples can be sent within 3 days
Payment TT 30percent Advance,balance after shipping,L/C


US Power Supply Cord 5-15P IEC 60320 C19 AC Power Cable For Servers and PDU with Custom Length / Color,UL Listed

US IEC C19 Power Supply Cord

US IEC C19 Power Supply Cord 15 Amps 125 Voltage three prong plug molded with custom long ,color PVC or rubber cable and IEC 320 C19 connector.

Plug type: US NEMA 5-15 Plug
Standard:NEMA 5-15P Straight
Oppsite End:IEC 320 C19
Approvals:UL, cUL
Electricity:15A, 125V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Quality System:ISO9001:2008
Color:White and black are normal,Custom color
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:XH202/XH008A
Plug Standard America NEMA 5-15P earthed plug with Maximum Electric Current rating 15A ,Maximum Voltage 125V, Number of Poles and Wires 2 poles, 3 wires Grounded, Connector Standards IEC 60320 (320) C-19, C19 locking,C-19 right angle, C19 left angle tested to ANSI/UL 62 and 817 and can/CSA C22.2 no. 21 and 49.

IEC 60320 AC Power Cords Receptacles Series

IEC 60320 AC Power Cords Receptacles Series

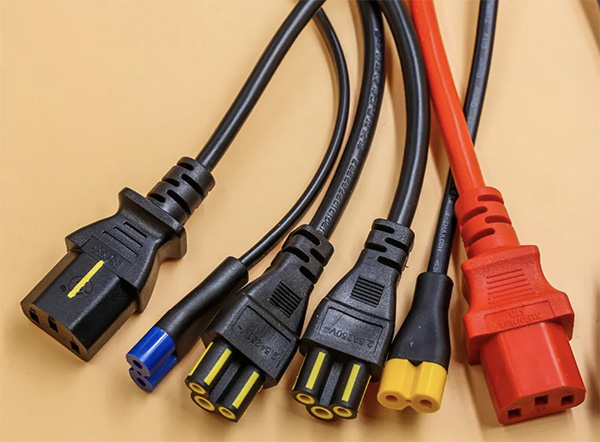

Colorful IEC 60320 Connectors

US IEC C19 Power Supply Cord are black and white as standard color. gray and custome color are available. Custom length and shielded America power cord, America AC power cables available. Terminated, custom stripping.

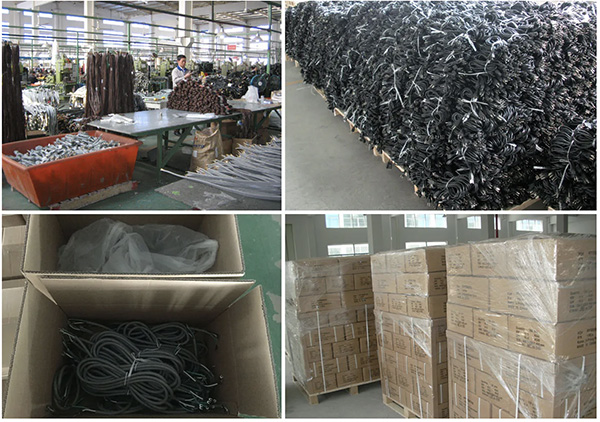

Package

US IEC C19 Power Supply Cord bulk packed with export cartons, pallets.

Package
