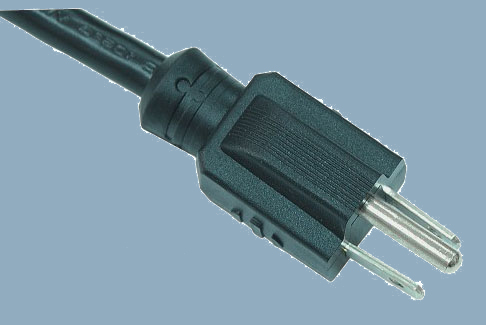

  • 15A 125V NEMA 5-15 Straight Plug Power Supply Cord

  • NEMA 5-15P America three prong power cord plug with UL certification Rated up to 15A 125V Built to North America standards and designed for standard 3 prong North America household applications,With IEC C5 , With IEC C13 , With IEC C15 , With IEC C19 describe American 15A plug molded with IEC 60320 international power connectors.Our America power cables are fully molded with high quality and RoHS / REACH environment compliant.
  • Contact Us
Detailed description

Connector Standard
 America 3P 5-15 plug
Maximum Current rating
 15A
Maximum Voltage
 125V
Number of Poles and Wires
 2 poles, 3 wires
Outer Mold Material
 60P PVC
Blade Material
 Nickel coated Brass
Flamability Rating
 94V-0
Color
 Any color available
Cable length
 Any length available
Temperature Rating
 minus 40C though plus 75C
Approvals
 UL CUL CSA
Environmental Certifications
 RoHS, REACH
Testing
 Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity

Abailable Opposite End Connectors:


Standard                      Part NO


IEC 60320 C13                     ST3,(IEC C13)America


IEC 60320 C5                       ST1,(IEC C5)America


IEC 60320 C19                     XH008,(IEC C19)America


IEC 60320 C13(right angle) ST3W,(IEC C13 right angle)America


IEC 60320 C15                    ST3H(IEC C15)America


YY-3 receptacle                    YY-3Z(NEMA 5-15R)America



Available Cable Styles:


(18 AWG/3C) SPT-1, SPT-2, SPT-3, NISPT-1, NISPT-2,

SJT, SJTW, SJTO,SJTOW, SJTOO, SJTOOW,

SVT, SVTO, SVTOO 10A/125

SO,SOW,SOO,SOOW

ST,STW,STO,STOW,STOO,STOOW

(17 AWG/3C) SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SVT, SVTO,

SVTOO 12A/125

(16 AWG/3C) :  SPT-2, SPT-3, NISPT-2,

 SVT, SVTO, SVTOO,

 SJT, SJTW, SJTO,SJTOW, SJTOO, SJTOOW 13A/125

SO,SOW,SOO,SOOW

ST,STW,STO,STOW,STOO,STOOW

(14AWG/3C ): SPT-3,HPN, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW SO,SOW,SOO,SOOW

ST,STW,STO,STOW,STOO,STOOW15A/125

(12AWG/3C ): SPT-3,HPN, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW SO,SOW,SOO,SOOW

ST,STW,STO,STOW,STOO,STOOW15A/125

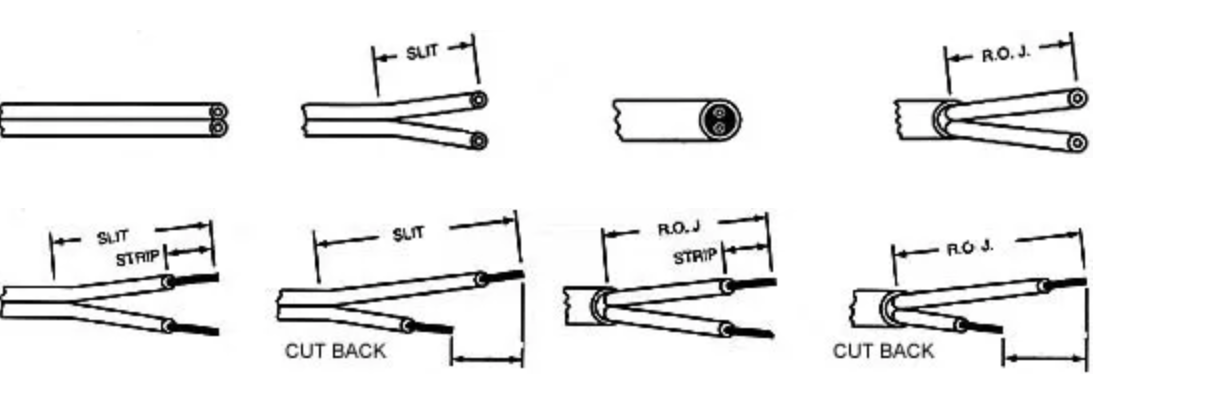

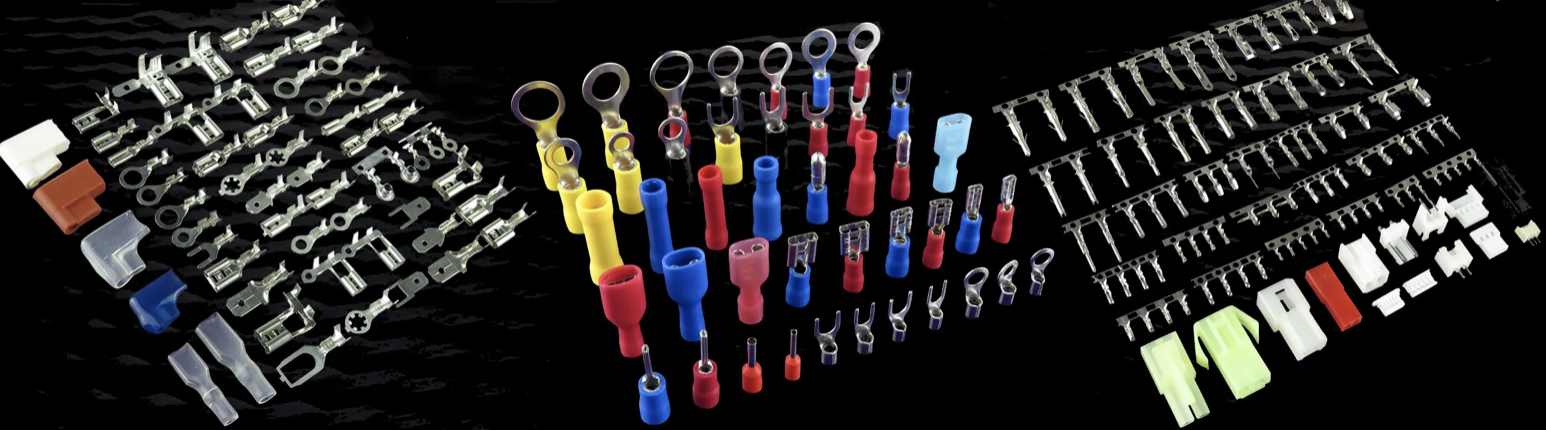

Other Termination Options:


Click Here
