AC Power Cord > Power Cord > Thailand Power Cords > Thailand 3 prong 16A power cord
Thailand-3-prong-16A-power-cord

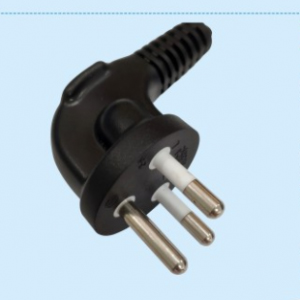

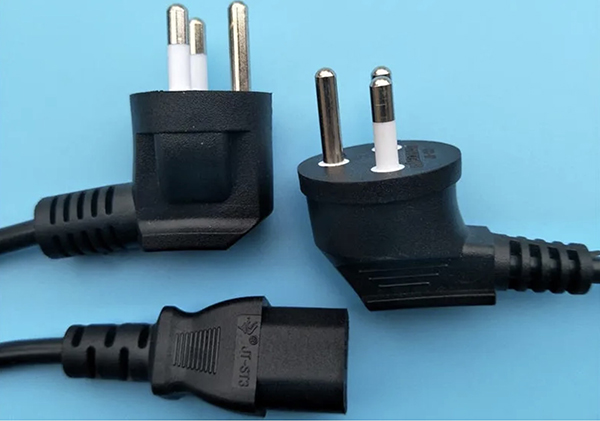

  • Thailand 3 prong 16A power cord

  • Thailand 3 Prong power cord right angle Thailand plug with TIS and 12 other certifications.Rated up to 16A 250V.

    Our Thailand power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

  • Contact Us
Detailed description

Plug Standard Thailand 3P plug
Maximum Current rating 16A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flamability Rating 94V-0
Color Any color available
Cable length Any length available
Temperature Rating minus 40C though plus 75C
Approvals VDE,TIS
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 2000pcs
Samples Free samples


Available Opposite End Connectors:


Standard                                                            Part NO


IEC 60320 C13                                                   ST3(IEC C13)Thailand

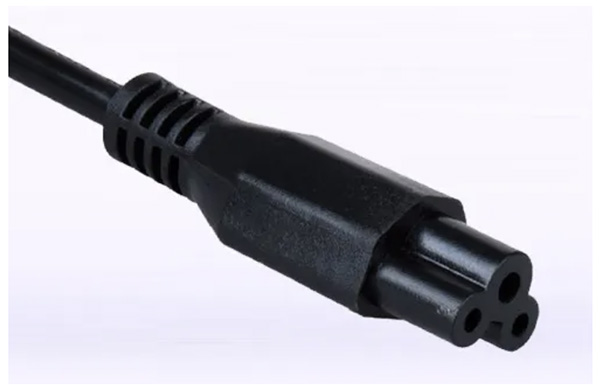

IEC 60320 C5                                                     ST1(IEC C5)Thailand


IEC 60320 C15                                                    ST3H(IEC C15)Thailand


IEC 60320 C19                                                    XH008A(IEC C19)Thailand


TIS 166-2549 Thailand Power Cord Pictures


Thailand plug 16A

Thailand AC power cord

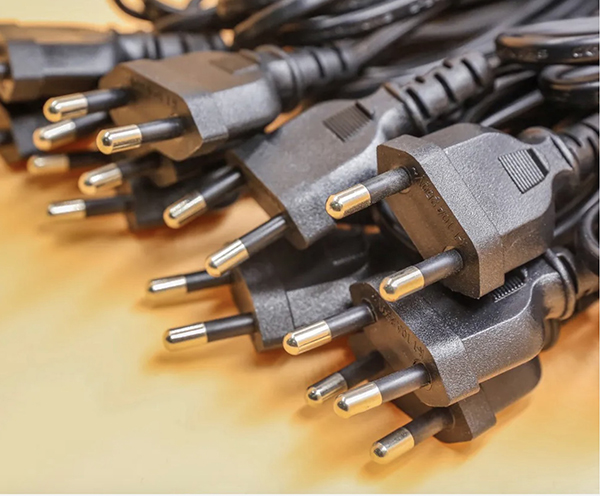

Thailand Power Cord,2-Conductor Plug AC Power Cord Max 10 Amps
Thailand Power Cord 2 Prong Nongrounded

Thailand Power Cord 2 Conductor custom long cable, color with end stripped, termination or IEC 320 connectors.

Plug type: Schuko angle plug grounding
Standard:TIS 166-2549
Electricity:10A,250V
Number of Poles and Wires:2 pole 2 wires earthed
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Cable Specifications:Standard and custom made
End Options:ROJ, Termination, IEC 320 C7, C17
Quality System:ISO9001:2008
Color:White and black are normal,Custom color
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:CGT1
Thailand Power Cord 2 Conductor with electrical rates 10 A, voltage 250V, Connector Standards  IEC 60320 (320) C-7, C17,Unterminated,Thailand AC Power Cords are black and white as standard color. gray and custome color are  available. Custom length and shielded Thailand power cord ,Europe AC power cables available. Terminated, custom stripping.


Thailand AC Power Cords, AC Power Supply Cords Thailand Power Cords TIS 166-2549, 2 Pole 3 Wire Grounding, Type O Plug
Thailand AC Power Cords, AC Power Supply Cords Thailand Power Cords Type O Plug

Thailand AC power cords custom long cable, color with end stripped, termination or IEC 320 connectors.

Plug type: Schuko angle plug grounding
Standard:TIS 166-2549
Electricity:16A,250V
Number of Poles and Wires:2 pole 3 wires earthed
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Cable Specifications:Standard and custom made
End Options:ROJ, Termination, IEC 320 C5, C13,C15,C19
Quality System:ISO9001:2008
Color:White and black are normal,Custom color
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel Coated Brass
Wire jacket Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS

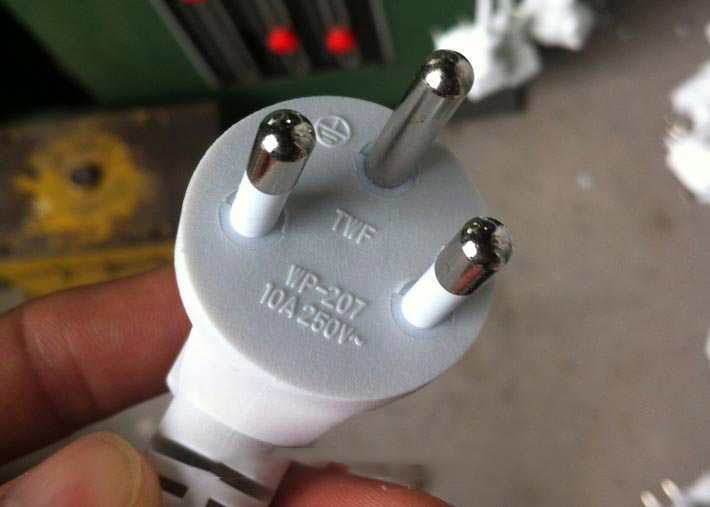

Model Number:WP-207
Thailand AC Power Cords with electrical rates 16 A, voltage 250V, Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5,  C-15, Unterminated,Thailand AC Power Cords are black and white as standard color. gray and custom color are  available. Custom length and shielded Thailand power cord ,Europe AC power cables available. Terminated, custom stripping.

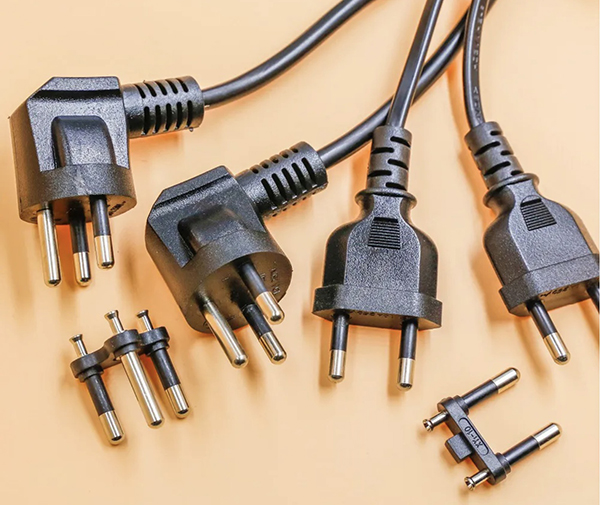

Thailand 2 Wire Power Cord

Thailand 2 Prong Plug

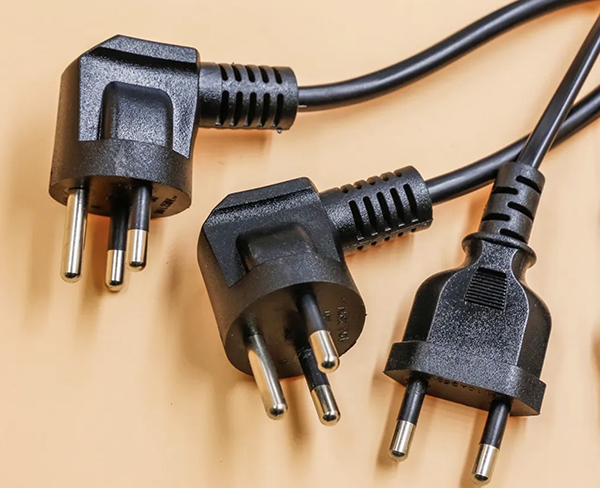

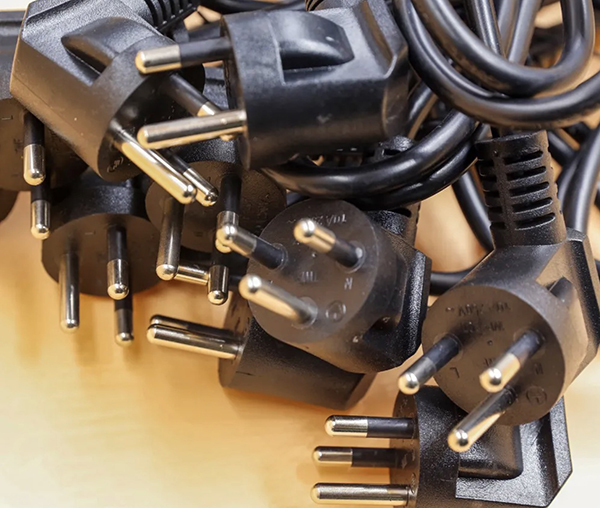

Thailand AC Power Cords

Thailand Type O Plug

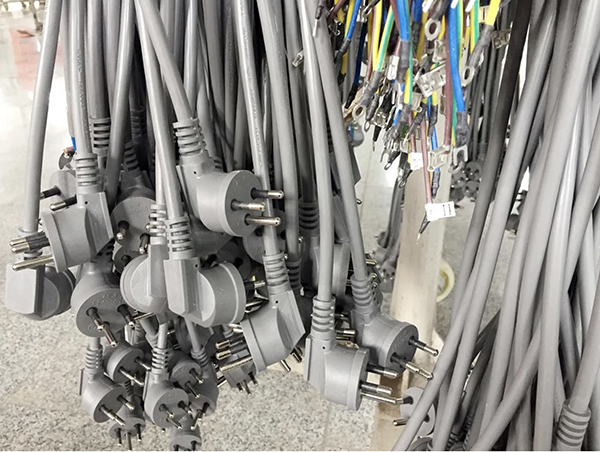

TIS 166-2549 3 Wire Grounding Power Cord

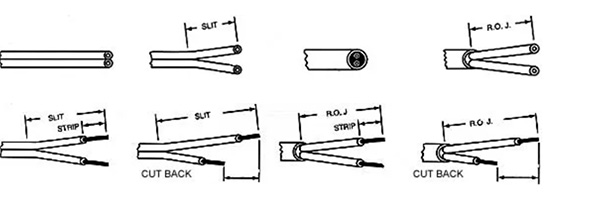

Available Opposite End
Normal Stripped, Splitter, and ROJ

We manufacturers and supply Thailand Power Cord 2 Conductor and Thailand AC Power Cords, the other end can be stripped, ROJ with custom length.


Available Opposite End

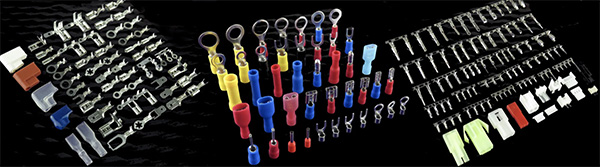

Common Termination

The Thailand Power Cord 2 Conductor and Thailand AC Power Cords is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

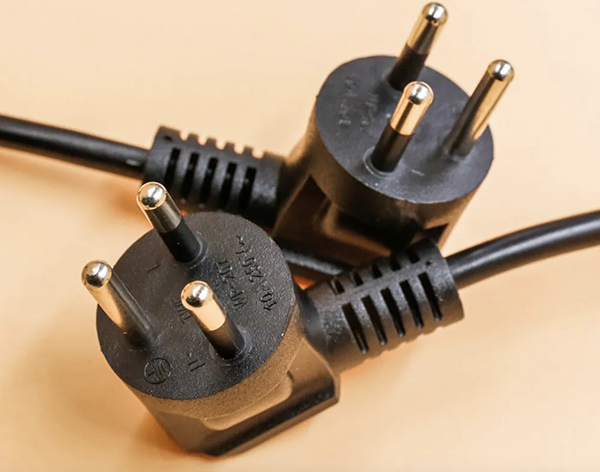

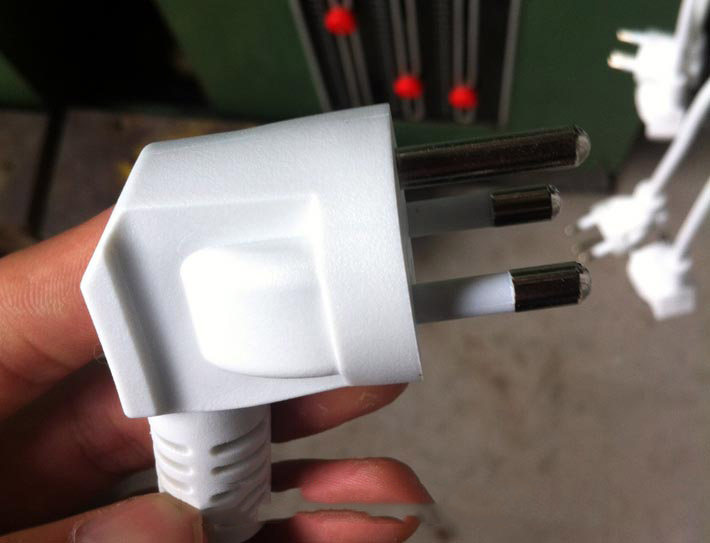

Thailand 3 Prong Plug 16A

Common Termination


IEC 60320 Connectors

The Thailand Power Cord and Thailand AC Power Cords to IEC 60320 C7,IEC 60320 C5 laptop,IEC 60320 C13 computer power cable and IEC 60320 C19 PDU Power Cord is normal versions of Thailand ac power cords with IEC connectors.

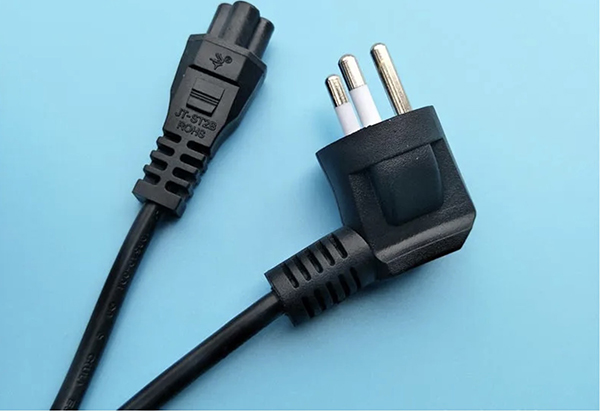

Thailand Power Cord to IEC 60320 C5

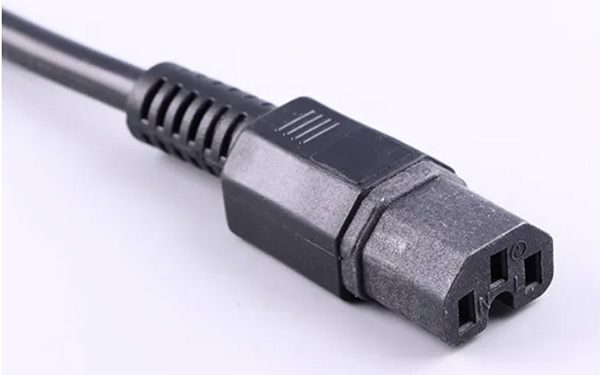

Thailand Power Cord to IEC 60320 C13

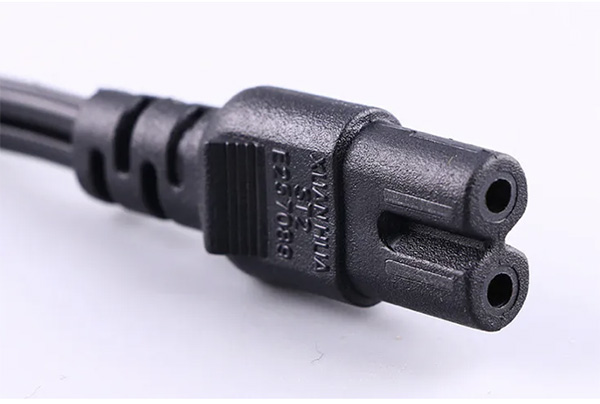

IEC 60320 C7 Power Cord

IEC 60320 C7 Power Cord

IEC 60320 C5 Power Cord

IEC 60320 C5 Power Cord

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Locking Power Cord

IEC 60320 C13 Locking Power Cord

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

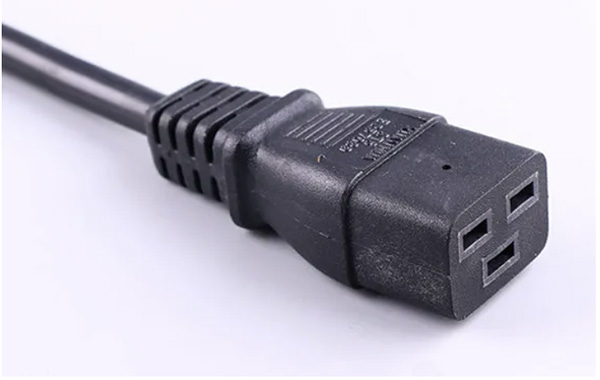

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord


Power Cord Available Switches

Thailand Power Cord 2 Conductor and Thailand AC Power Cords is used to molded with online switches for salt lamp power supply cords.

Swich Series

The color of online swtiches mostly white, black and transparent

Power cord with Swich

Power Supply Cord with Swich

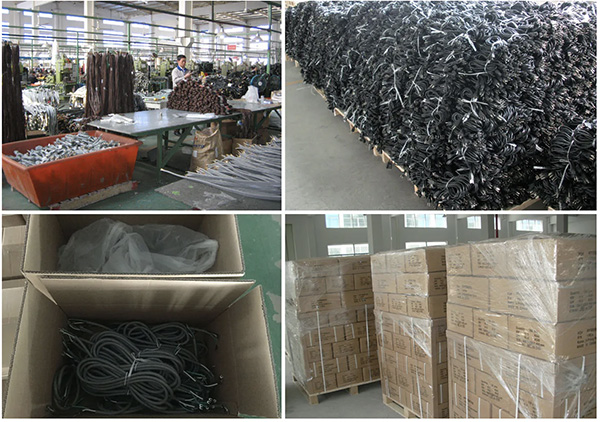

Package

Thailand Power Cord 2 Conductor and Thailand AC Power Cords Bulk packed with export cartons, pallets.

Package
