AC Power Cord > Power Cord > America Power Cords > 15A 125V NEMA 5-15P Power Cord with Clip
15A-125V-NEMA-5-15P-Power-Cord-with-Clip

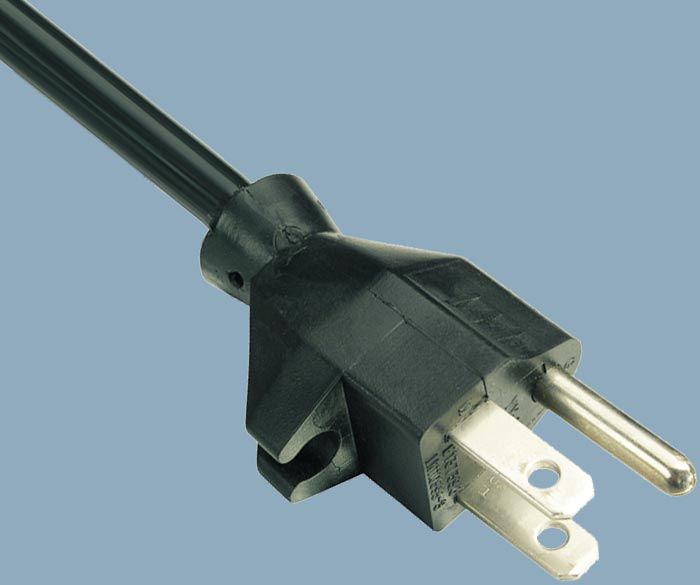

  • 15A 125V NEMA 5-15P Power Cord with Clip

  • 15A 125V NEMA 5-15P Power Cord with Clip designed for standard 3 conductor household applications,Our America UL CSA power cables are fully molded with high quality and RoHS / REACH compliant.
  • Contact Us
Detailed description

Connector Standard

America 3P 5-15 plug with Clip

Maximum Current rating

15A
Maximum Voltage 125V
Number of Poles and Wires 2 poles, 3 wires
Outer Mold Material 60P PVC
Blade Material Nickel coated Brass
Flamability Rating UL 94V-0
Color Any color available
Cable length Any length available
Temperature Rating minus 40C though plus 75C
Approvals UL CSA
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity


Available Wire Styles


Cord Type Electrical Rating (Amps/Volts)
18/3 SJTW/SJTOW/SJTOOW STW/STOW/STOOW SPT-2
SJT/SJTO/SJTOO ST/STO/STOO SPT-3 HPN
16/3 SJTW/SJTOW/SJTOOW STW/STOW/STOOW SPT-2
SJT/SJTO/SJTOO ST/STO/STOO SPT-3 HPN
14/3 SJTW/SJTOW/SJTOOW STW/STOW/STOOW SPT-3
SJT/SJTO/SJTOO ST/STO/STOO HPN

15/125

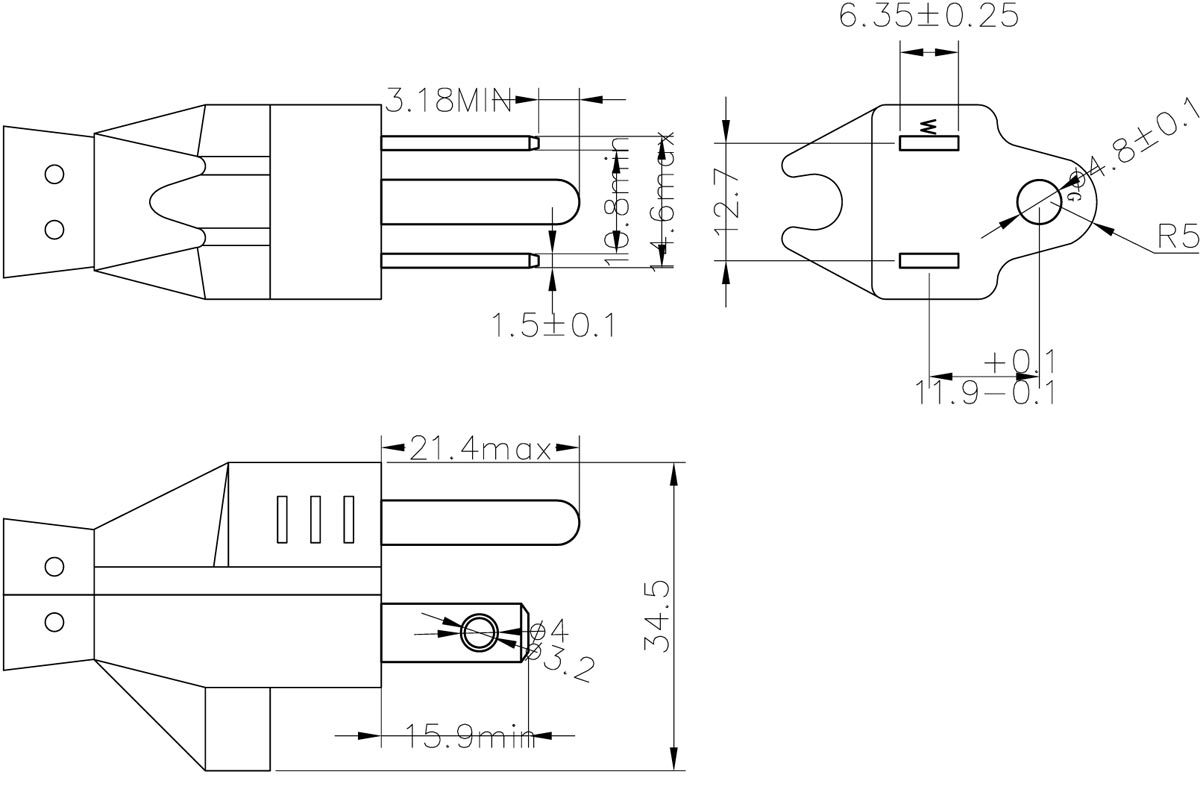

Drawing


American Power Cord with Clip

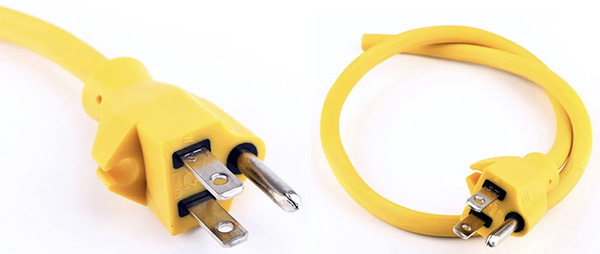

Vacuum Cleaner Power Cords, America 2 Pole 3 Wire Plug Custom Long, Color Power Cable, UL Listed

America Vacuum Cleaner Power Cords


Plug type: US 3 prong grounded plug

Standard:NEMA 5-15P

Approvals:UL, cUL

Electricity:15A, 125V

Number of Poles and Wires:2 pole 3 wires

Cable length:1.0 meter, 1.5m, 1.8m,custom length

End Options:ROJ, Termination

Quality System:ISO9001:2008

Color:White and black are normal,Custom color

Outer Mold Material:PVC,Rubber

Plug Insert Material:PBT,ABS

Blade Material:Nickel coated Brass

Cable Specifications:Standard and custom made

Wire Outject Material:PVC,Rubber,TPE,Textile

Environmental Certifications:RoHS, REACH, PAHS

Model Number:YY-3K

Plug Standard America NEMA 5-15P plug Maximum Electric Current rating 15A Maximum Voltage 125V Number of Poles and Wires 2 poles, 3 wires Grounded Type B Plug.

American Power Cords with Clip

America vacuum cleaner power cords are black and white as standard color. gray and custome color are  available. Custom length and shielded America power cord heavy duty,Australia AC power cables available. Terminated, custom stripping.

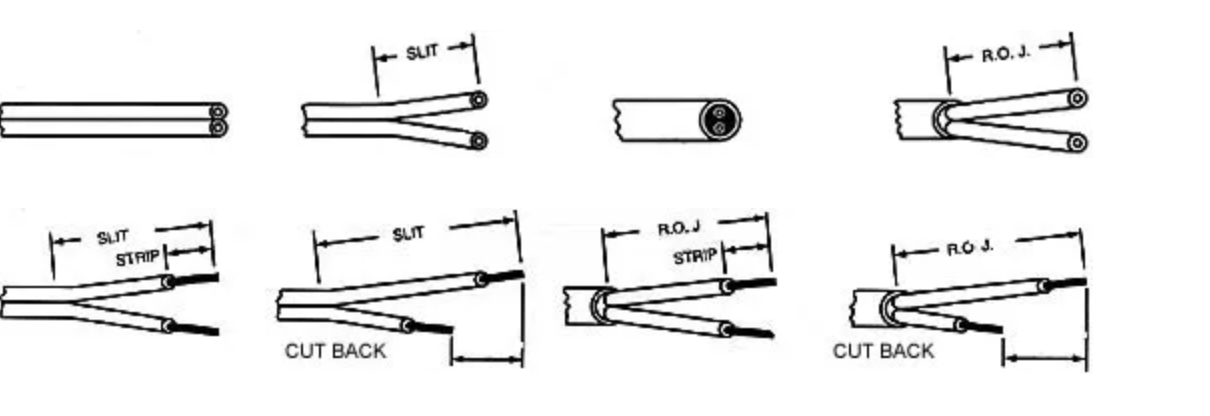

Available Opposite End

Normal Stripped, Splitter and ROJ


We manufacturers and supplies America vacuum cleaner power cords,custom color,the other end can be stipped ,ROJ with custom length.

Available Opposite End

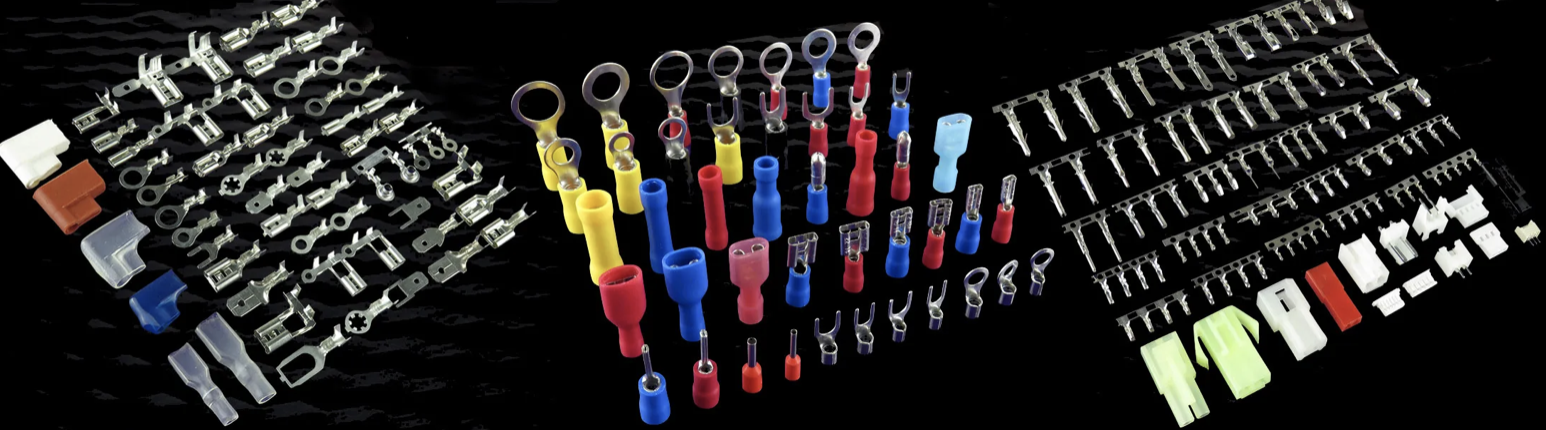

Common Termination


America vacuum cleaner power cords, one end is molded with NEMA  standard sheet plugs, the opposite could be terminated with types of terminals such as grounding rings terminals ,fork with heat shrink or  nylone insulated.

Common Termination


Package


America vacuum cleaner power cords bulk packed with export cartons, pallets.

Power Cord Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in USA, Canada and all countries in the world. Our extensive and complete USA power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for North America power cords as China leading USA power cord manufacturer and supplier.all of US power cords are approved by UL, cUL with Rohs and Reach compliant.
