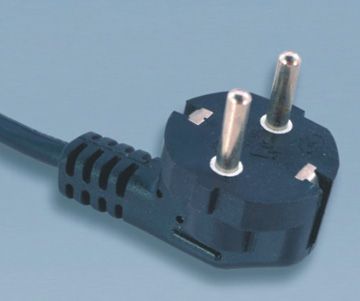

Connector Standard | Korea 3P Plug |
Maximum Current rating |
16A |
Maximum Voltage | 250V |
Number of Poles and Wires | 2 poles, 3 wires |
Outer Mold Material | 50P PVC |
Blade Material | Nickel coated Brass |
Color | Any color available |
Cable length | Any length available |
Temperature Rating | minus 40C though plus 75C |
Approvals | Korea KS KTL KC |
Environmental Certifications | RoHS, REACH |
Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
MOQ | 2000pcs |
Samples | Free and could be sent within three days |
Available Opposite End Connectors:
Standard Part NO
IEC 60320 C13 ST3(IEC C13)Korea

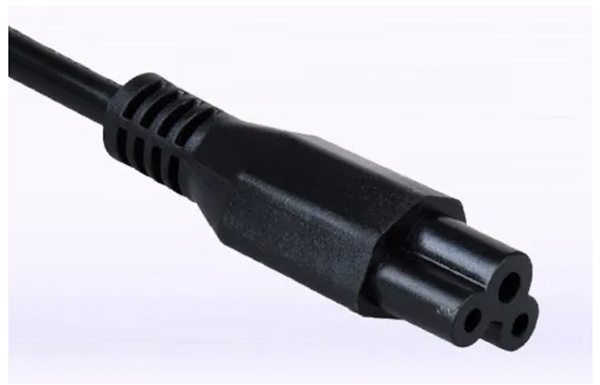

IEC 60320 C5 ST1(IEC C5)Korea
IEC 60320 C15 ST3H(IEC C15)Korea
IEC 60320 C19 XH008A(IEC C19)Korea
Cord Type | Electrical Rating (Amps/Volts) |
H03VV-F 3G0.5-0.75 H05VV-F 3G0.75-2.5 H03RT-F 3G0.75-1.0 H05RR-F 3G0.75-1.5 H05RN-F 3G0.75-1.0 H07RN-F 3G1.0-2.5 |
16/250 |

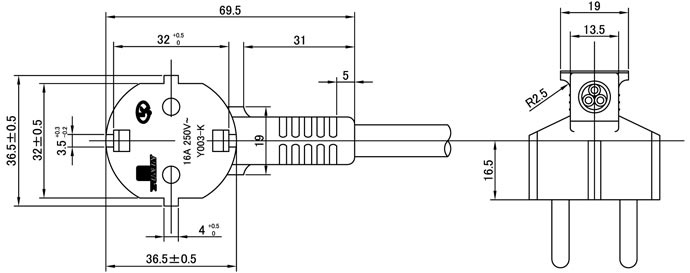

Power Cord drawing
