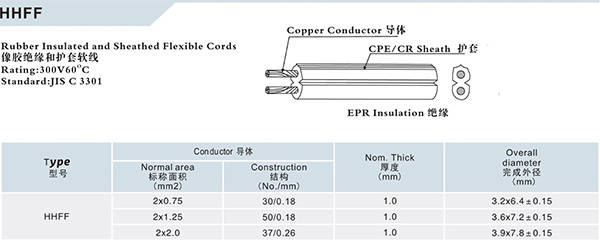

Type | Conductor | Insulation | Max.Conductor Resistance ohm/km/20 | Min.Insulation Resistance | |||
Area[mm2] | Construction [NO./mm] | Diameter of Single[mm]Max | Nomimal Thickness | Untin | Tin | Mohm/km20?/td> | |
[mm] | |||||||

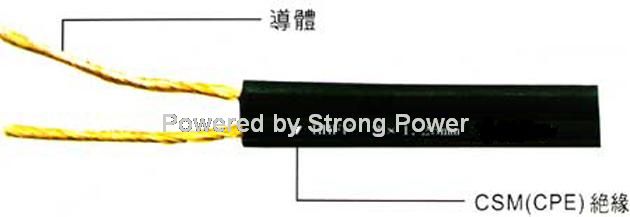

HHFF | 0.75 | 30/0.18 | 1 | 3.2x6.4±0.15 | 24.4 | 25.8 | 2 |
1.25 | 50/0.18 | 3.6x7.2±0.15 | 14.7 | 15.5 | |||
2 | 37/0.26 | 3.9x7.8±0.15 | 9.5 | 9.91 |
