AC Power Cord > Power Cord > Israel Power Cords > Israel SI32 10A 2 Poles Without Earthing Contact Plug Power Cord
Israel-SI32-10A-2-Poles-Without-Earthing-Contact-Plug-Power-Cord

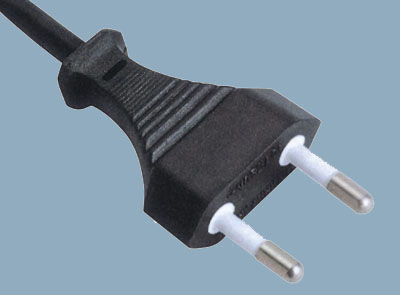

  • Israel SI32 10A 2 Poles Without Earthing Contact Plug Power Cord

  • SI 32 Israel SI32 10A 2 Poles Without Earthing Contact Plug Power Cord with SII approved designed for 2 conductor power supply cord home appliances, Our Israel AC power cables are fully moulded with high quality and RoHS / REACH compliant.

    Link here:SI 32 3 prong Power Cord

  • Contact Us
Detailed description

Plug standard Israel SI-32 2 Conductor plug
Maximum Current rating 10A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 2 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Temperature Rating minus 40C though plus 75C
Approvals SII , VDE
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 3000pcs
Delviery lead date 15-20days
Samples Free samples can be sent within 3 days


Available Opposite End Connectors:


Standard                                                Part NO


IEC 60320 C7                                        ST2(IEC C7)Israel


Other Termination Options:


Click Here


Available Cable Styles:


H05VV-F 2X0.75-1.5mm2

H05RN-F 2X0.75-1.0mm2

H05RR-F 2X1.0-1.5mm2

H07RN-F 2X1.0-1.5mm2


More Information:


Israel SII specification(DOC)


Israel SI-32 10A Plug Drawing


Israel SI32 10A 2 Poles Without Earthing Contact Plug Power Cord


Israel Power Cord 10A 2 Wire SI-32 Standard,Type C Plug AC Power Supply Cords,1m,1.5,1.8-Meter,3M,Custom Long Power Cord,SII Approved
Israel Power Cord 2.5A, 10 Amp 2 Wire Custom Long Power Cord

Plug type: 2 wire non-polarized plug ungrounded
Standard:SI-32
Approvals:SII, VDE
Electricity:2.5A, 10A, 250V
Number of Poles and Wires:2 pole 2 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:ROJ, Termination, IEC 320 C7, C17
Quality System:ISO9001:2008
Color:White and black are normal,Custom color
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:JY16,YD-1
2.5A, 10A 2 Wire Non-grounding SI-32 Standard,Type C Plug , Connector standards IEC 60320 (320) C7 figure 8 connector,C17,Unterminated,Israel plug connected with a two-wire ungrounded plug rated at 2.5 Amp , 10 Amp 250 Voltage defined by CEE 7/16.The Israel AC plugs and Sockets are same as Euro plug CEE 7-16 but max at 10 Amp suitable for most the small electrical appliances using the two phase power line, the Israel  type C plug connecting the Israel plug connection with the household appliances.
Israel power cord 10 Amp 2 wire SI-32 standard type C plug are black and white as standard color. gray and custom color are  available. Custom length and shielded Israel AC power cord, power cables available. Terminated, custom stripping.
Israel 2 Wire 10A Power Cord


Available Opposite End
Normal Stripped, Splitter, and ROJ

We manufacturers and supply Israel Power Cord 10 Amp 2 Wire SI-32 Standard Type C plug, the other end can be stripped, ROJ with custom length.

Available Opposite End


Common Termination

The Israel Power Cord 10 Amp 2 Wire SI-32 Standard Type C plug is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination

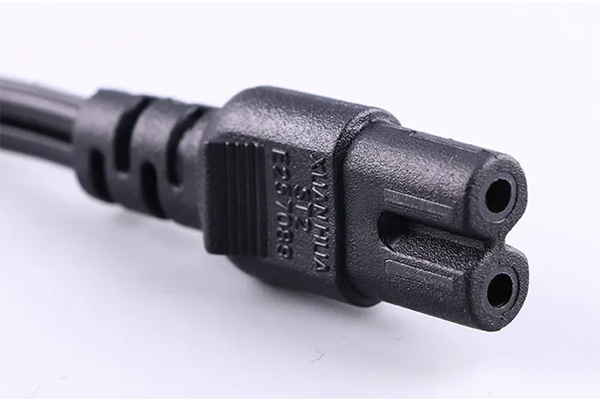

IEC 60320 Connectors

The Israel Power Cord 10 Amp 2 Wire SI-32 Standard Type C plug to IEC 60320 C7 is normal versions of Israel ac power cords with IEC connectors.IEC 60320 C7 Power Cord

IEC 60320 C7 Power Cord


Power Cord Available Switches

Israel Power Cord 10 Amp 2 Wire SI-32 Standard Type C plug is used to molded with online switches for salt lamp power supply cords.

Swich Series

The color of online swtiches mostly white, black and transparent

Power cord with Swich

Power Supply Cord with Swich


Package

The Israel Power Cord 10 Amp 2 Wire SI-32 Standard Type C plug Bulk packed with export cartons, pallets.

Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in Israel and all Countries in the world. Our extensive and complete Israel power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Israel AC power cords as China leading Israel power cord manufacturer and supplier.all of our Israel power supply cords are are made of high quality approved by SII, VDE with Rohs and Reach compliant.
