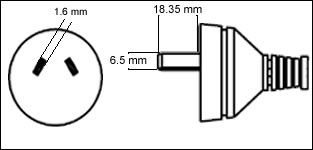

Argentine IRAM 2073 - 10 Amp
The Argentinean IRAM 2073 non-ground is physically the same as the Australian AS 3112 but the line blades are not insulated.
|
|
|
|
Argentine IRAM 2073 - 10 Amp
The Argentinean IRAM 2073 is physically the same as the Chinese GB 2099. The IRAM 2073 designation is merely a separate approval by that country's standards organization.
|
|
|
|

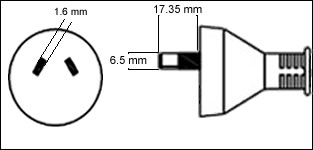

Australian AS/NZ-3112 - 7.5/10 Amp
The Australian and New Zealand AS 3112 non-ground is physically the same as the Argentinean IRAM 2073 but the line blades are insulated.
|
|
|
|

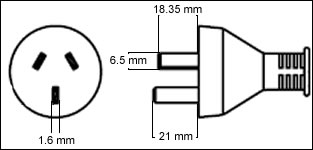

Australian AS/NZ-3112 - 10 Amp
The Australian and New Zealand AS 3112 is physically the same as the Argentinean IRAM 2073 and the Chinese GB 2099 but the line blades are insulated.
|
|
|
|

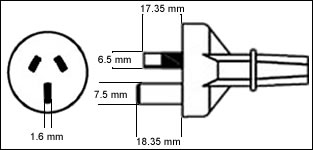

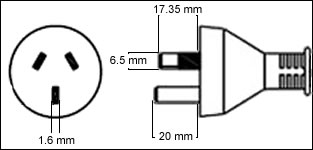

Australian AS/NZ 3112 - 15 Amp
The Australian and New Zealand AS 3112 15 Amp version has a wider grounding blade and may not be inserted in a 10 Amp receptacle.
|
|
|
|
Brazilian NBR 6147 - 10 Amp
The Brazilian NBR6147 non-ground standard is new.
|
|
|
|
Brazilian NBR 14136 - 10 Amp
These Brazilian standards are new and notice the pin sizes vary between the different plugs.
|
|
|
|
Brazilian NBR 14136 - 16 Amp
These Brazilian standards are new and notice the pin sizes vary between the different plugs.
|
|
|
|
British BS-1363 - 13 Amp
The British BS 1363A typically has a 13 amp fused plug and is used throughout the United Kingdom. The BS 1363A replaced the old British BS 546 standard, which is no longer used in the U. K. but is still widely used in India and South Africa.
|
|
|
|
Chinese GB 2099 - 6/10 Amp
The Chinese GB 2099 non-grounded appear to be physically identical to the NEMA 1-15 found in North America. In many cases a North American plug will mate with Chinese receptacles without an adapter. However, the Chinese standard holds to tighter dimensional measurements than those in North America. This means that in some cases North American plugs will not quite fit into Chinese receptacles.
|
|
|
|

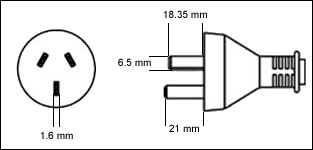

Chinese GB 2099 - 10 Amp
The Chinese GB 2099.1-1996 is physically the same as the Argentinean IRAM 2073. The GB 2099.1-1996 designation is merely a separate approval by this country's standards organization.
|
|
|
|
Chinese GB 2099 - 16 Amp
The Chinese GB 2099 16 Amp version has a wider grounding blade and may not be inserted in a 10 Amp receptacle.
|
|
|
|

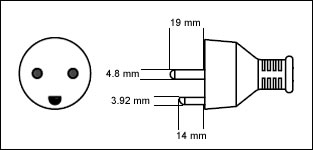

Danish AFSNIT 107-2-D1 - 13 Amp
The Danish AFSNIT 107-2-D1 is also referred to as SRAF 1962/DB 16/87.
|
|
|
|

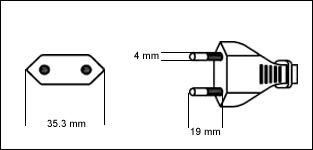

European CEE7/16 Europlug - 2.5 Amp
The CEE7/16 "Europlug" is the standard 2 wire plug for non-grounded applications in most areas of continental Europe.
|
|
|
|
Euro CEE7/7 (Hybrid Type E/F) - 16 Amp
The CEE7/7 plug has both the side grounding clips of German CEE7/4 receptacle and a female contact to accept the grounding pin of the French CEE7/5 receptacle.
|
|
|
|

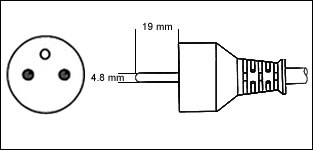

French CEE7/5 -16 Amp
France and Belgium use the CEE7/5 wall receptacle which has a round male pin for grounding.
|
|
|
|

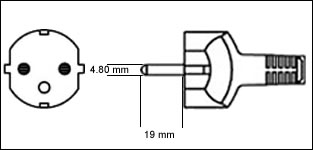

German Schuko CEE7/4 - 16 Amp
Germany and Spain use the CEE7/4 which has side grounding clips.
|
|
|
|

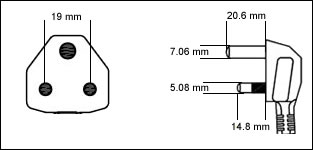

India IA6A3 - 6 Amp (Small)
India IS 1293 IA6A3 replaced Old British standard BS 546 6amp.
|
|
|
|

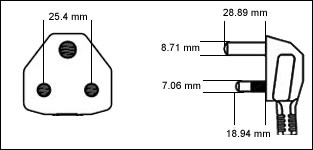

India IA16A3 - 16 Amp (Large)
The India IS 1293 IA16A3 is the same as the South Africa SABS 164-1. These Standards replaced BS 546.
|
|
|
|
Israeli SI-32 IS16AR - 2.5 Amp
The Israeli SI-32 is physically the same as the Europlug.
|
|
|
|

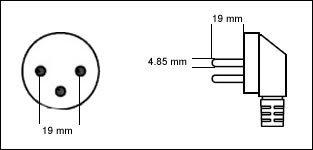

Israeli SI-32 IS16AR - 16 Amp
The Israeli SI-32 is the same as the Thailand TIS 166-2549.
|
|
|
|

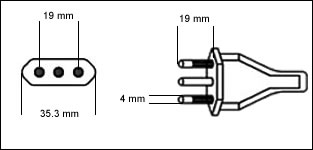

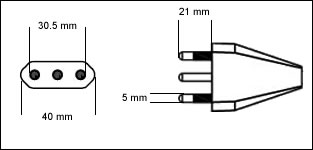

Italian CEI 23-16 - 10 Amp
The Italian CEI 23-16 uses the center pin for grounding.
|
|
|
|
Italian CEI 23-16 - 16 Amp
The Italian CEI 23-16 16 Amp version has wider line blades and may not be inserted in a 10 Amp receptacle.
|
|
|
|
Japanese JIS 8303 - 15 Amp
The Japanese JIS 8303 grounded appears to be physically identical to the NEMA 5-15 found in North America. In many cases a North American plug will mate with Japanese receptacles without an adapter. However, the Japanese standard holds to tighter dimensional measurements than those in North America. This means that in some cases North American plugs will not quite fit into Japanese receptacles.
|
|
|
|
Japanese JIS 8303 - 15 Amp
The Japanese JIS 8303 non-grounded appears to be physically identical to the NEMA 1-15 found in North America. In many cases a North American plug will mate with Japanese receptacles without an adapter. However, the Japanese standard holds to tighter dimensional standards than those in North America. This means that in some cases North American plugs will not quite fit into Japanese receptacles.
|
|
|
|
Korean KSC 8305 - 2.5/3 amp
The Korean KSC 8305 non-grounded is physically the same as the Europlug CEE7/16. The KSC 8305 designation is merely a separate approval by this country's standards organization.
|
|
|
|

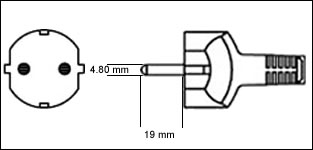

Korean KSC 8305 - 16 Amp
The Korean KSC 8305 is physically the same as the German CEE7/4. The KSC 8305 designation is merely a separate approval by this country's standards organization.
|
|
|
|

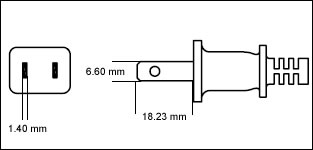

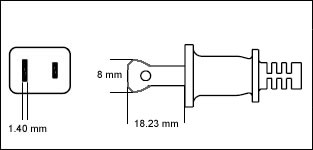

North American NEMA 1-15 - 15 Amp - Polarized
The North American NEMA 1-15 non-grounded is the standard 2 wire wall receptacle found in the United States. Polarized has one blade flanged wider.
|
|
|
|

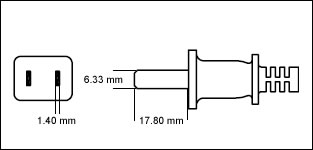

North American NEMA 1-15 - 15 Amp - Non Polarized
The North American NEMA 1-15 non-grounded is the standard 2 wire wall receptacle found in the United States.
|
|
|
|

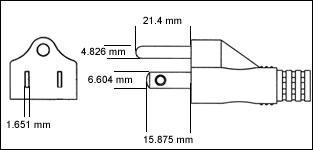

North American NEMA 5-15 Grounded - 15 Amp
The North American NEMA 5-15 is the standard 3 wire wall receptacle found in the United States.
|
|
|
|
Russian GOST 7396 - 16 Amp
Russian GOST 7396 contacts 4.0mm as opposed to the 4.8mm contacts of other European plugs and receptacles. As such, a Russian/Soviet GOST 7396 receptacle may not accept the larger contacts found on European CEE7/4, CEE7/7 and CEE7/16 plugs.
|
|
|
|

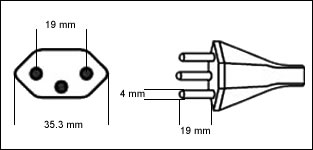

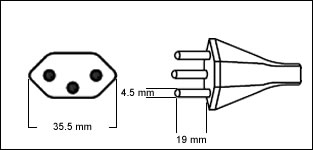

Swiss SEV 1011 - 10 Amp
Swiss SEV 1011 will also accept the Europlug CEE7/16 however, the connection will be non-grounded.
|
|
|
|

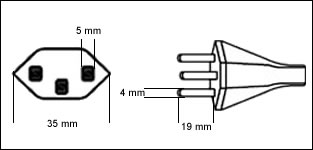

Swiss SEV 1011 - 16 Amp
Swiss SEV 1011 16 Amp version has a wider line blades and may not be inserted in a 10 Amp receptacle.
|
|
