Argentina IRAM 2073 Power Cord

Available Opposite End Connectors:

Standard                                        Part NO

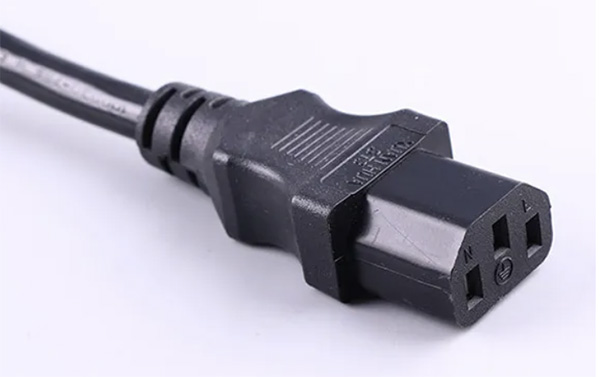

IEC 60320 C13                             ST3(IEC C13)Argentina

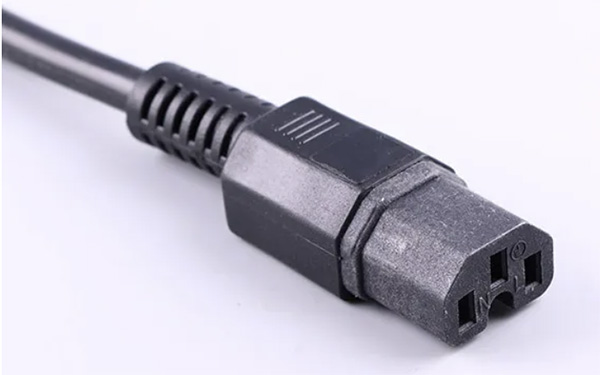

IEC 60320 C15                            ST1(IEC C15)Argentina

IEC 60320 C5                              ST1(IEC C5)Argentina

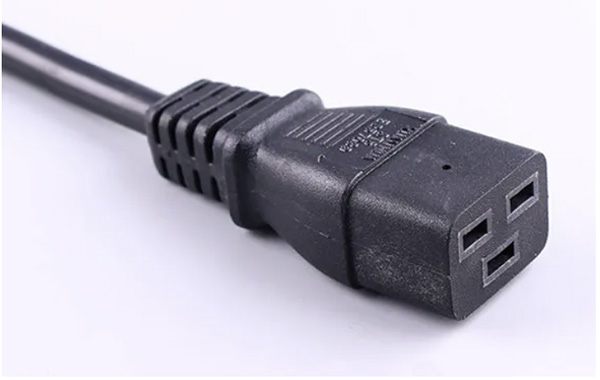

IEC 60320 C19                            XH008A(IEC C19)Argentina

Other Termination Options:

Click Here

Available Cable Styles:

H05VV-F 3X0.75-1.0mm2

H05RN-F 3X0.75-1.0mm2

More Information:

Agentina IRAM 3 prong power cord drawing(JPG)

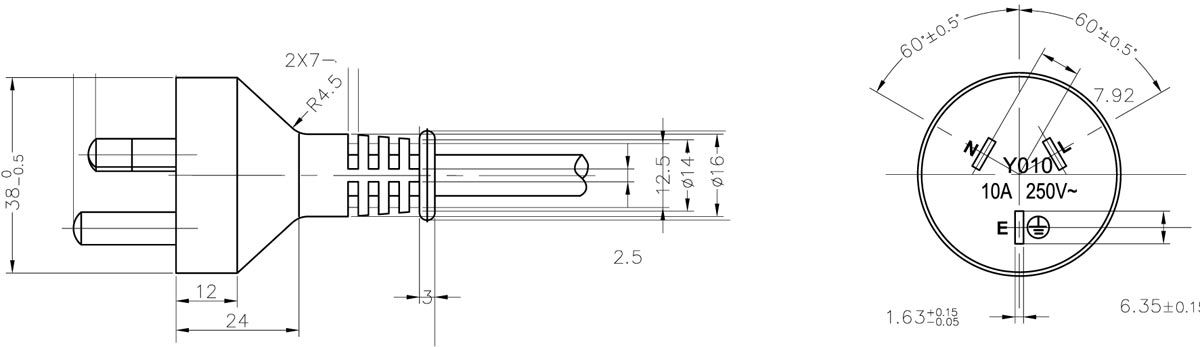

IRAM 2073 Argentina Plug Drawing

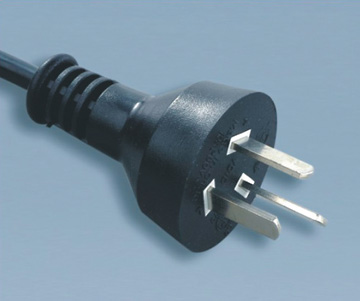

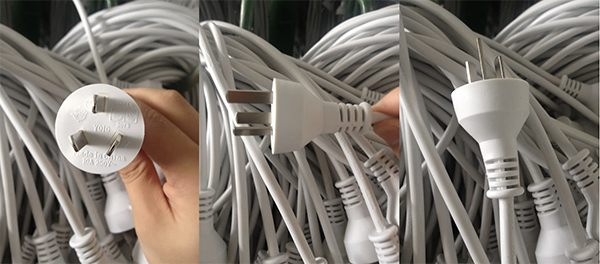

Argentina AC Power Cords, AC Power Supply Cords IRAM 2073 Type I Plug 10 Amp 250 Volt 2 Pole 3 Wire Grounding
Argentina AC Power Cords, AC Power Supply Cords IRAM 2073 Type I Plug

Plug type: Type I Argentina Plug
Standard: IRAM 2073
Approvals: IRAM, VDE
Electricity:10A,250V
Number of Poles and Wires:2 poles 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Opposite End Options:ROJ,IEC,Termination
Quality System: ISO9001:2008
Color: Custom color, white and black are normal
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number:AR3-10,D11, Y010

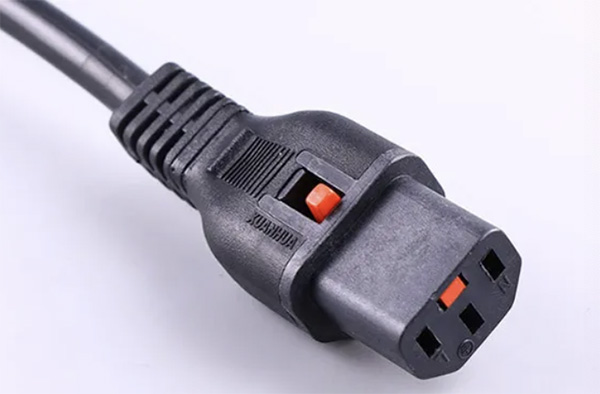

Argentina AC Power Cords, AC Power Supply Cords AR1-10P, IRAM 2073, Type I Plug  10 Amp 250 Volt, 2 Pole 3 Wire Grounding, Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, C17 Unterminated. Argentina IRAM 2073 (Argentinian 10 A/250 V) and compatible types (Type I), connected with a three-wire earthed plug rated at 10 A, 250 V defined by IRAM and used in Class 1 applications in Argentina. The Argentina AC plugs and Sockets are similar in appearance to the Australian and Chinese plugs.
Suitable for most the small electrical appliances using the two phase Argentina power cord, the Argentina type  plug connecting the Argentina plug connection with the household appliances.

Available Opposite End

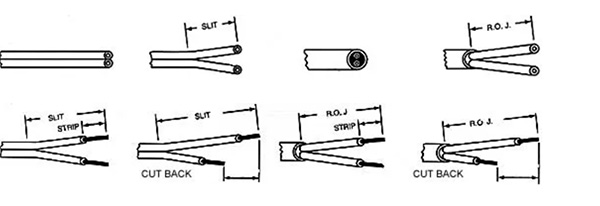

Normal Stripped, Splitter, and ROJ

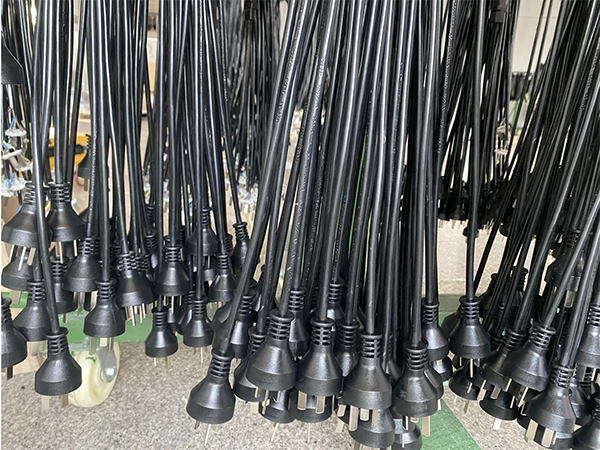

We manufacturers and supply Argentina Power Cord, IRAM 2073,3 Wire Grounding Plug AC Power Cords the other end can be stripped, ROJ with custom length.

Common Termination

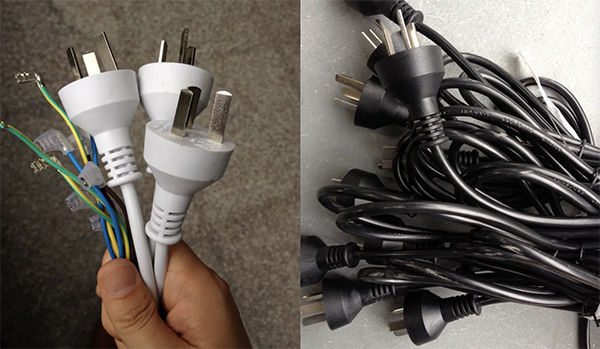

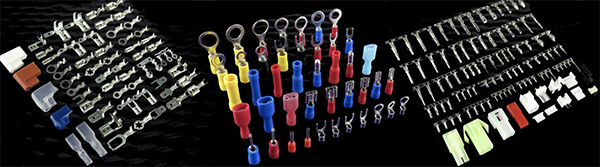

The Argentina Power Cord, IRAM 2073,3 Wire Grounding Plug AC Power Cords is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

IEC 60320 Connectors

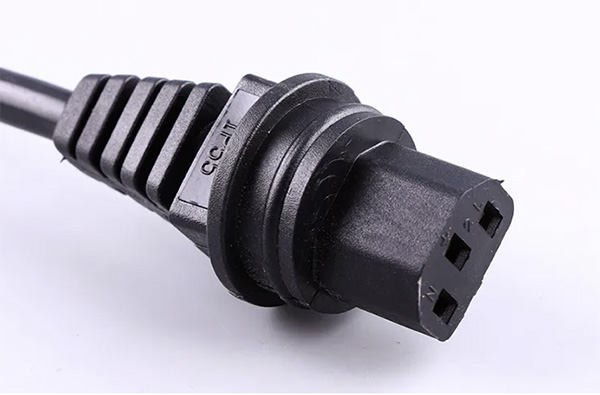

The Argentina Power Cord IRAM 2073, Argentina plugs to IEC 60320 C5 laptop，Argentina plugs to IEC 60320 C13 Computer power cable and moulded with IEC 60320 C19 as PDU power cords are normal versions of Argentina ac power cords with IEC connectors.

Yunhuan manufacturers and supplies electrical AC power supply cords for use in Argentina and all Countries in the world. Our extensive and complete Argentina power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Argentina power cords as China leading Argentina power cord manufacturer and supplier.all of Argentina power cords are approved by IRAM,VDE with Rohs and Reach compliant.
