AC Power Cord > Power Cord > Argentina Power Cords > Argentina IRAM 2073 16 Amp 20Amp Heavy Duty Power Cord
Argentina-IRAM-2073-16-Amp-20Amp-Heavy-Duty-Power-Cord

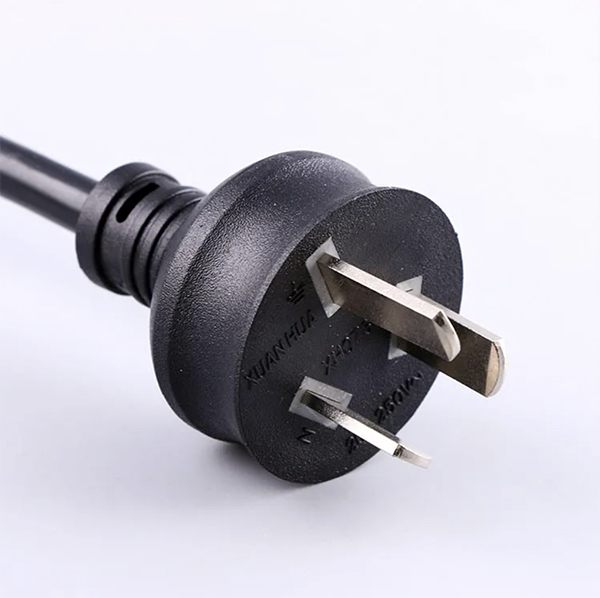

  • Argentina IRAM 2073 16 Amp 20Amp Heavy Duty Power Cord

    • IRAM 2073 IRAM 2073 Argentina three prong AC power cord plug with IRAM certification Rated up to 16/20A 250V Built to IRAM 2073 Heavy Duty standard and designed for Argentina 3 conductor power supply cord applications, IRAM 2073 to IEC C5 , IRAM 2073 to IEC C13 , IRAM 2073 to IEC C15 , IRAM 2073 to IEC C19 describe Argentina plug molded with IEC 60320 sockets,All of our Argentine AC power cables are fully made with ergonomic design and RoHS / REACH compliant as we are China premier power cordset manufacturer.

  • Contact Us
Detailed description
Plug Standard

Argentina 3P 16/20Amp plug

Maximum Current rating 20A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flamability Rating UL 94V-0
Color Custom color available
Cable length Custom length available
Temperature Rating minus 40C though plus 75C
Approvals Argentina IRAM/VDE
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 2000pcs
Samples Free and could be sent within three days


Available Opposite End Connectors:


Standard                                        Part NO


IEC 60320 C13                             ST3(IEC C13)Argentina


IEC 60320 C15                            ST1(IEC C15)Argentina


IEC 60320 C5                              ST1(IEC C5)Argentina


IEC 60320 C19                            XH008A(IEC C19)Argentina


Available Cable Styles:


H05VV-F 3X0.75-2.5mm2

H05RN-F 3X0.75-2.5mm2


Argentina Power Cord, AC Power Cord 16 Amp, 20Amp Heavy Duty 250 Volt 2 Pole 3 Wire Grounding , Custom Long Power Cord
Argentina 20A  Plug Power Cord 3 Wire Grounding

Plug type: Type I Argentina Plug
Standard: IRAM 2073
Approvals: IRAM, VDE
Electricity:16A,20A,250V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Opposite End Options:ROJ,IEC,Termination
Quality System: ISO9001:2008
Color: Custom color, white and black are normal
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel coated brass
Cable Specifications: Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number: XH073B
Argentina AC Power Cords, AC Power Supply Cords 20 Amp heavy-duty 250 Volt, 2 Pole 3 Wire Grounding, Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-15, Unterminated.Argentina 20 Amp heavy-duty connected with a three-wire earthed plug rated at 20 A, 250 V defined by IRAM, AR-UL. The Argentina AC plugs and Sockets are similar in appearance to the Australasian and Chinese plugs.
Argentina’s Power cords are black and white as the standard color. gray and custom colors are available. Custom length and shielded Agetnina power cord heavy duty, Argentina AC power cables available. Terminated, custom stripping.
Suitable for most the small electrical appliances using the two phase Argentina power cord, the Argentina type  plug connecting the Argentina plug connection with the household appliances.

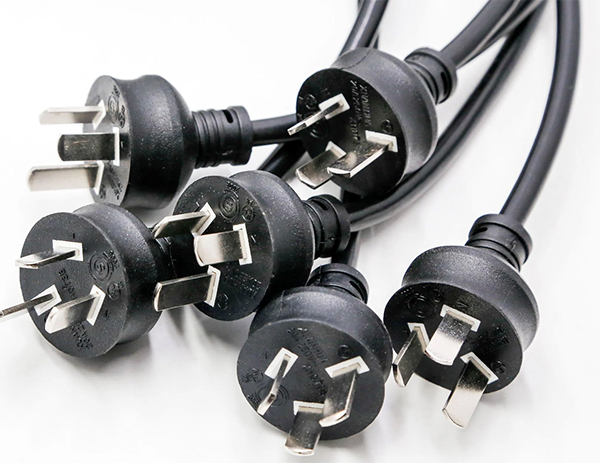

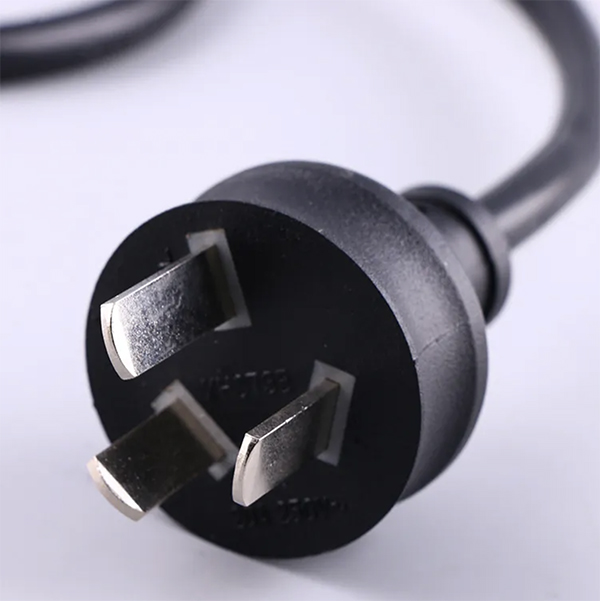

Argentina 20A Power Cord

Argentina 16A 20A Heavy Duty Power Cord

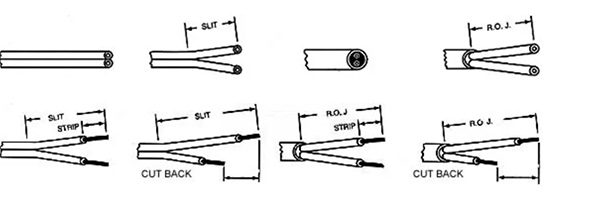

Available Opposite End
Normal Stripped, Splitter, and ROJ

We manufacturers and supply Argentina Power Cord, IRAM 2073,3 Wire Grounding 16/20 Amp heavy duty Plug AC Power Cords the other end can be stripped, ROJ with custom length.

Available Opposite End

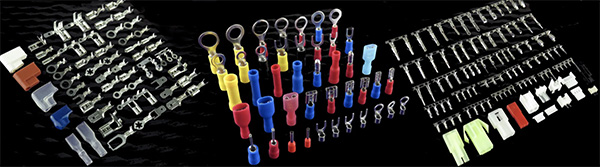

Common Termination

The Argentina Power Cord, IRAM 2073,3 Wire Grounding 16/20 Amp heavy duty Plug AC Power Cords is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


IEC 60320 Connectors

The Argentina Power Cord IRAM 2073, Argentina 16/20 Amp heavy duty plugs to IEC 60320 C5 laptop,Argentina plugs to IEC 60320 C13 Computer power cable and moulded with IEC 60320 C19 as PDU power cords are normal versions of Argentina ac power cords with IEC connectors.

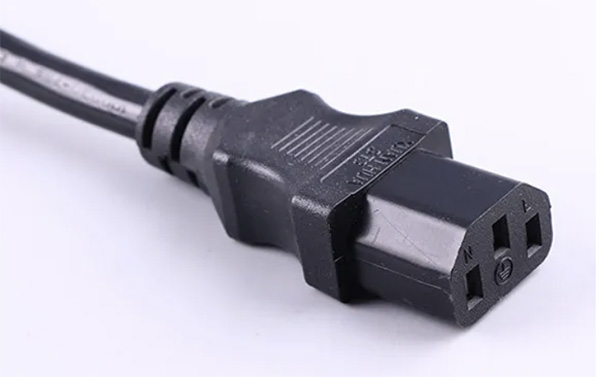

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Straight Power Cord

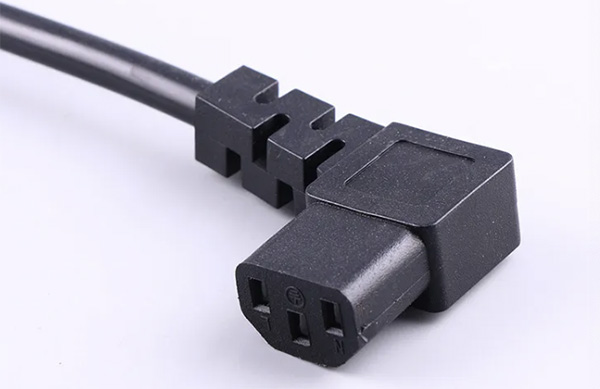

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Right Angle Power Cord

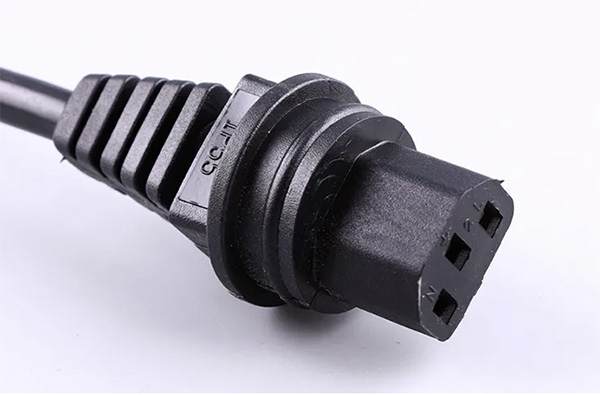

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Waterproof Power Cord

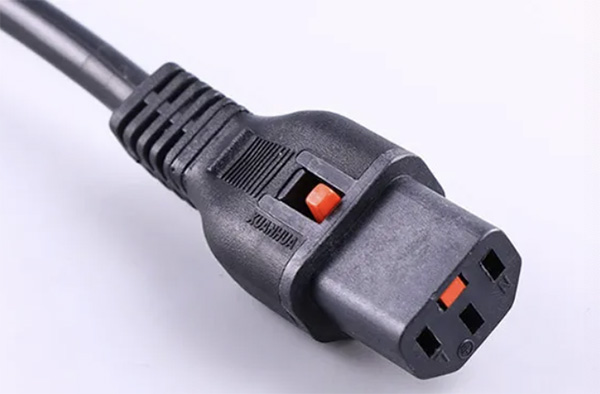

IEC 60320 C13 Locking Power Cord

IEC 60320 C13 Locking Power Cord

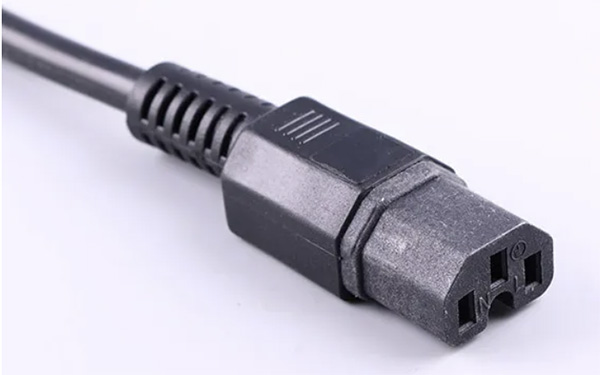

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

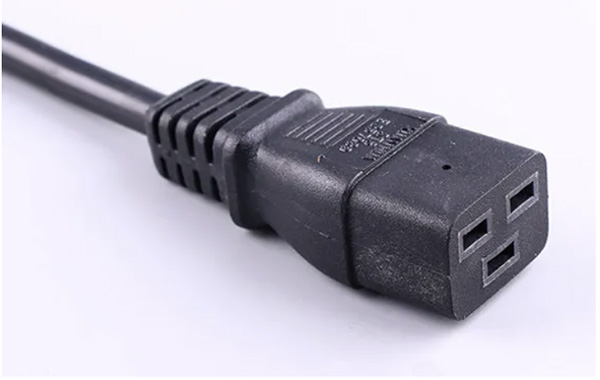

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord

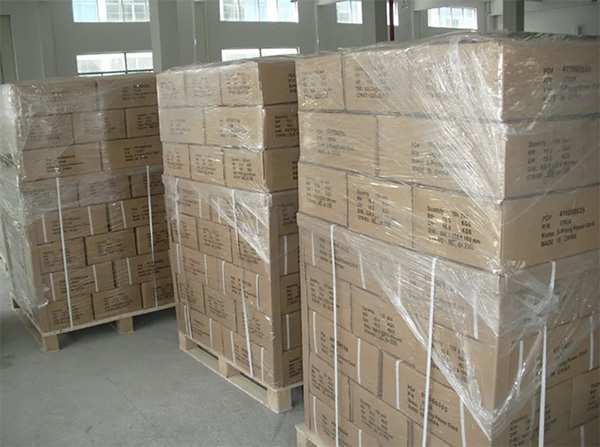

Package

The Argentina Power Cord, IRAM 2073,3 wire grounding 16/20 Amp heavy duty plugs Bulk packed with export cartons, pallets.

Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in Argentina and all Countries in the world. Our extensive and complete Argentina power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Argentina power cords as China leading Argentina power cord manufacturer and supplier.all of Argentina power cords are approved by IRAM,VDE with Rohs and Reach compliant.
