AC Power Cord > Power Cord > America Power Cords > 5-20P Angle Plug 20A 125V Power Cord
5-20P-Angle-Plug-20A-125V-Power-Cord
  • 5-20P Angle Plug 20A 125V Power Cord

  • NEMA 5-20P up angle power cord plug with North America certification.Rated up to 15A 250V.  Built to the NEMA 5-20P standard NEMA 5-20P Power Cords 20 Amps 125 Voltage right angle plug power cord with USA certified Rated Built to US NEMA standard and designed for America three prong 20A heavy duty power cord applications,Our America power cord products are fully molded with high quality and RoHS / REACH compliant.

    NEMA 5-20P straight version available here:XN520P

  • Contact Us
Detailed description

Connector Standard

America 3P 5-20 plug

Maximum Current rating

15A

Maximum Voltage

125V

Number of Poles and Wires

2 poles, 3 wires

Outer Mold Material

60P PVC

Blade Material

Nickel coated Brass

Flamability Rating

94V-0

Color

Any color available

Cable length

Any length available

Temperature Rating

minus 40C though plus 75C

Approvals

UL CUL CSA

Environmental Certifications

RoHS, REACH

Testing

Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity


Available Opposite End Connectors:


Standard                               Part NO


IEC 60320 C13                     ST3,(IEC C13)America


IEC 60320 C5                       ST1,(IEC C5)America


IEC 60320 C19                     XH008,(IEC C19)America


IEC 60320 C13(right angle) ST3W,(IEC C13 right angle)America


IEC 60320 C15                    ST3H(IEC C15)America


Other Termination Options:


Click Here


Available Cable Styles:


AWG 16/3C SPT-3 SJT SJTW SJTO SJTOW SJTOO SJTOOW ST STW STO STOO STOOW

AWG 14/3CSPT-3 SJT SJTW SJTO SJTOW SJTOO SJTOOW ST STW STO STOO STOOW

AWG 12/3CSPT-3 SJT SJTW SJTO SJTOW SJTOO SJTOOW ST STW STO STOO STOOW

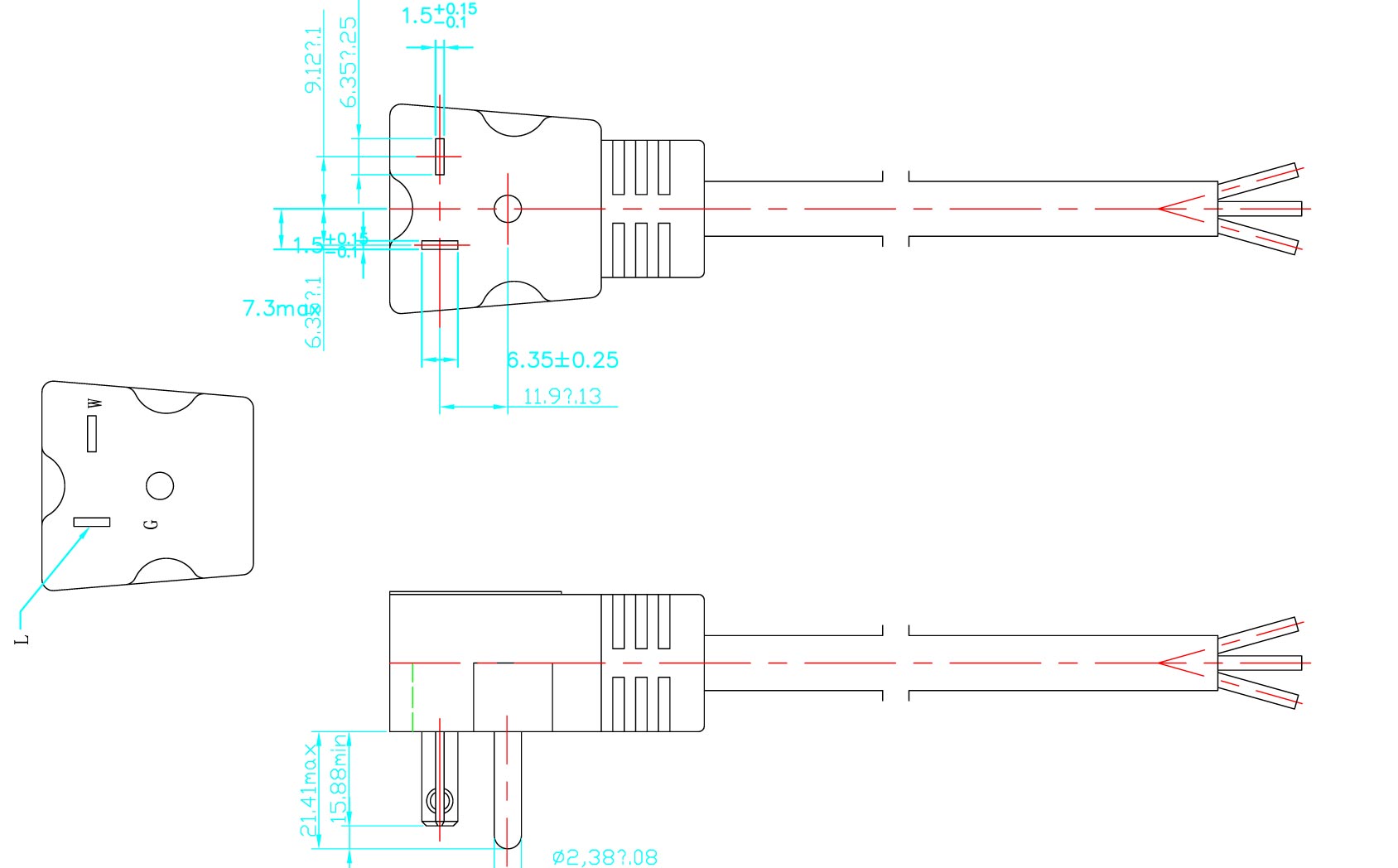

NEMA 5-20P Plug Drawing

NEMA 5-20P Power Cords 2-pole 3-wire Plug

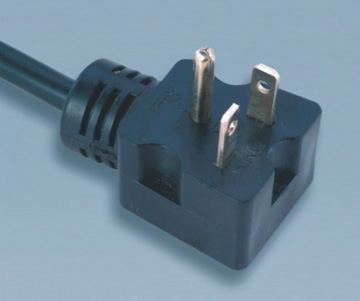

5-20P Angle Plug 20A 125V Power Cord


Manufacturer Base NEMA 5-20 Power Cord Angle Plug Rated 20A 125V Custom Length / Color Power Supply Cords UL Listed

NEMA 5-20P Power Cord
NEMA 5-20 power cord angle plug mold with a custom length, custom color PVC, Rubber or TPE sheathed flexible cables.
Plug type: 3 Prong 20A heavy duty plug
Standard: NEMA 5-20
Approvals: UL, cUL
Electricity:20A, 125V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options: ROJ, Termination
Quality System: ISO9001:2008
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel coated brass
Cable Specifications: Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number: YY-3I
Plug Standard America NEMA 5-20P plug Maximum Electric Current rating 20A, Maximum Voltage 125V Number of Poles and Wires 2 poles, 3 wires Grounded Plug.

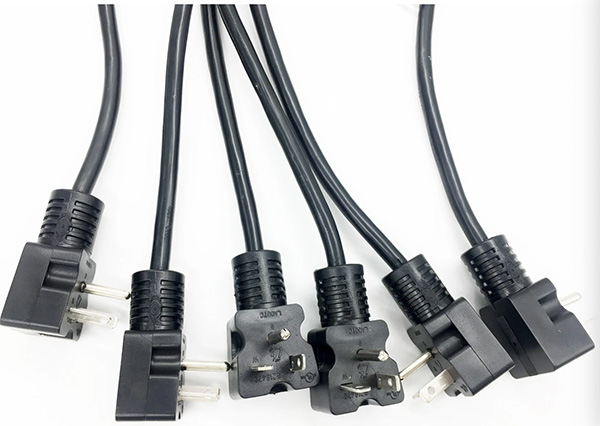

NEMA5-20P Angle Plug Power Cord


NEMA 5-20 Power Cord Angle Plug are black and white as standard color. gray and custom color are available. Custom length and shielded America power cord heavy duty,America AC power cables available. Terminated, custom stripping. Heavy Duty – Featuring and 5-20P Plug Rated for 20 Amps and 125V can be used for cry to currency mining and other high-power computer needs Manufactured to the highest standards and tested for Voltage Hi-Potential, Continuity, Polarity and are UL listed.


Available Opposite End

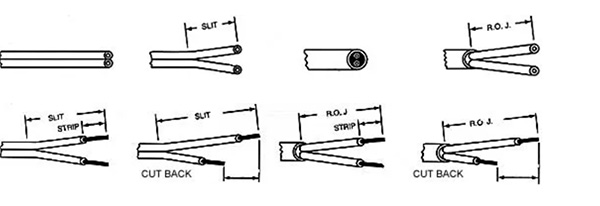

Normal Stripped, Splitter and ROJ

We manufacturers and supplies NEMA 5-20P Power Cord, custom color, the other end can be stripped, ROJ with custom length.
Available Opposite End

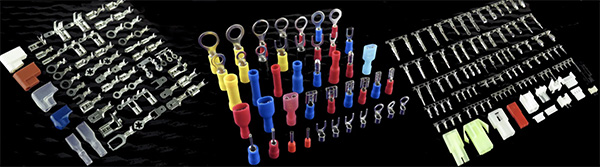

Common Termination

NEMA 5-20 Power Cord Angle Plug, one end is molded with NEMA  standard sheet plugs, the opposite could be terminated with types of terminals such as grounding rings terminals ,fork with heat shrink or  nylone insulated.
Common Termination


IEC 60320 Connectors

Power supply cord 5-15 angle plug to IEC 320 C5 laptop, IEC C13 computer power cable and molded with IEC C19 as PDU power cords are normal versions of America ac power cords with IEC connectors.

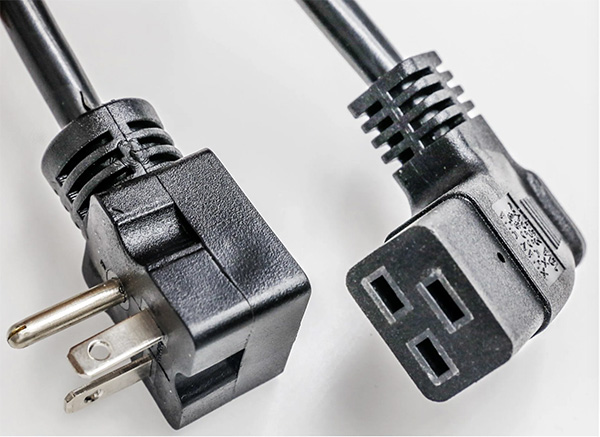

Power Supply Cord 5-25 Angle Pluf to IEC 320 C19

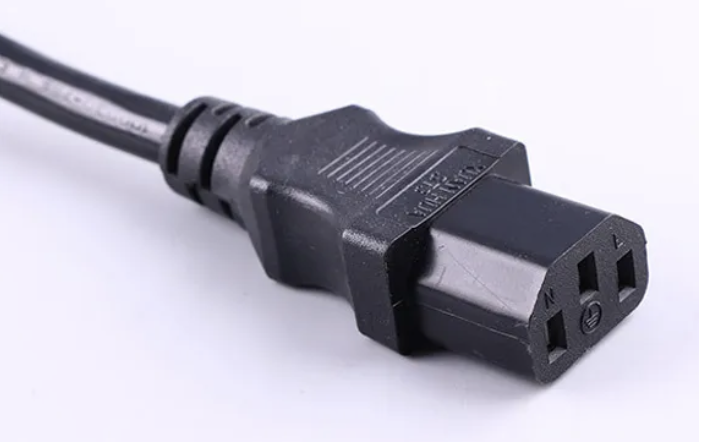

IEC 60320 C13 Power Cord Straight

IEC 60320 C13 Power Cord Straight

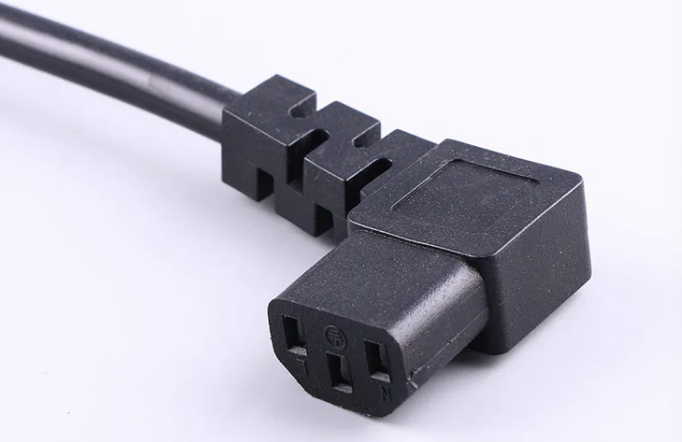

IEC 60320 C13 Power Cord Right Angle

IEC 60320 C13 Power Cord Right Angle

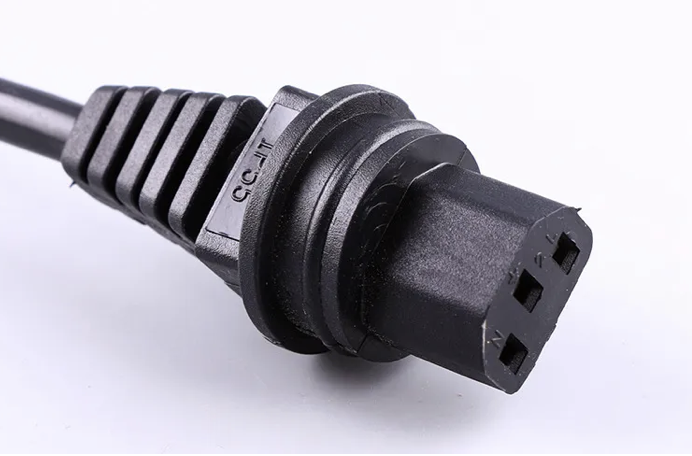

IEC 60320 C13 Power Cord Waterproof

IEC 60320 C13 Power Cord Waterproof

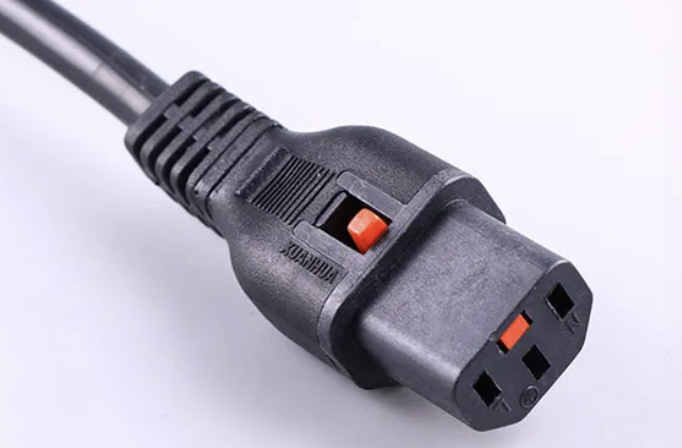

IEC 60320 C13 Power Cord Locking

IEC 60320 C13 Power Cord Locking

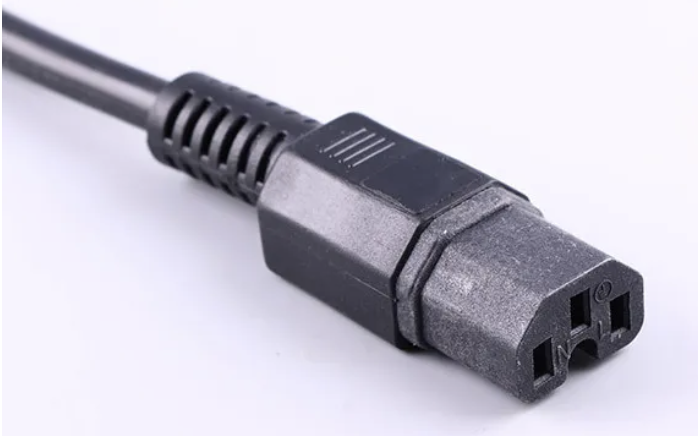

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

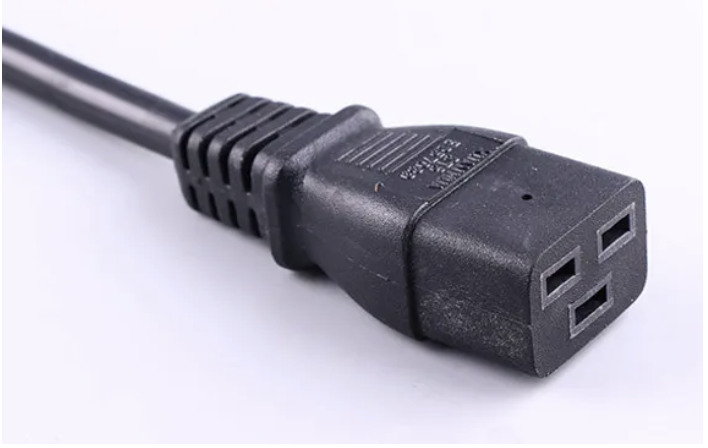

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord

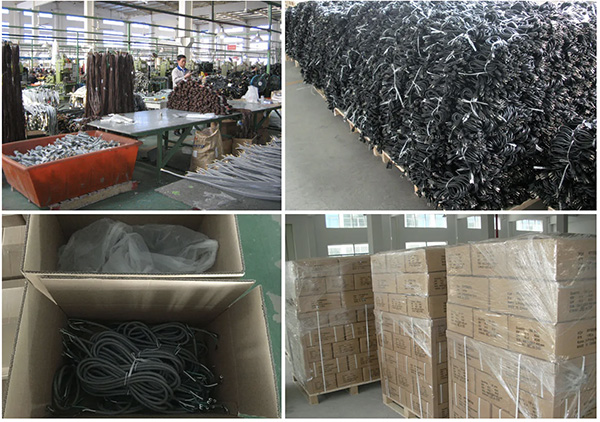

Package

NEMA 5-20 Power Cord Angle Plug bulk packed with export cartons, pallets.
Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in USA, Canada and all countries in the world. Our extensive and complete USA power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for North America power cords as China leading USA power cord manufacturer and supplier.all of US power cords are approved by UL, cUL with Rohs and Reach compliant.

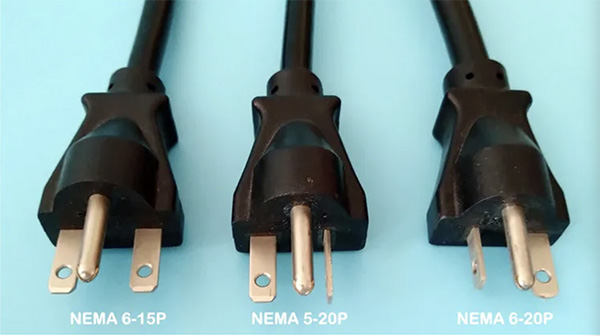

Differences of NEMA 5-20P, NEMA 6-20P, NEMA 6-15P

Difference of NEMA5-20P,NEMA6-15P,NEMA6-20P
