AC Power Cord > Power Cord > America Power Cords > Medical Grade America Power Cord 5-15P
Medical-Grade-America-Power-Cord-5-15P

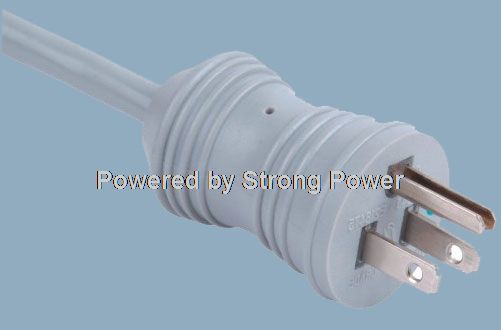

  • Medical Grade America Power Cord 5-15P

  • NEMA 5-15P hospital grade green dot 3 prong USA power cord plug with UL certification.  Rated up to 15A 125V, 13A 125V or 10A 125V.  Built to the NEMA 5-15P hospital grade standard.  Certified hospital grade green dot cords with RoHS and REACH compliance.

    5-15P,Straight Medical Grade America power cord plug with UL certification Rated up to 15A 125V Built to NEMA standard and designed North America medical grade power cord applications.

    Click here hospital plug to C13 drawing:XH216A to IEC C13(JPG)

  • Contact Us
Detailed description

Connector Standard

America 3P 5-15 plug

Maximum Current rating

15A

Maximum Voltage

125V

Number of Poles and Wires

2 poles, 3 wires

Outer Mold Material

60P PVC

Blade Material

Nickel coated Brass

Flamability Rating

94V-0

Color

Any color available

Cable length

Any length available

Temperature Rating

minus 40C though plus 75C

Approvals

UL CUL

Environmental Certifications

RoHS, REACH

Testing

Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity


Available Opposite End Connectors:


Standard                              Part No


IEC 60320 C13                     ST3,(IEC C13)America


IEC 60320 C5                       ST1,(IEC C5)America


IEC 60320 C19                     XH008,(IEC C19)America


IEC 60320 C13(right angle) ST3W,(IEC C13 right angle)America


IEC 60320 C15                    ST3H(IEC C15)America


Other Termination Options:


Click Here


Available Cable Styles:


AWG 18/3C CSJ SJW SJO SJOW SJOO SJOOW SJT SJTW SJO SJTOW SJTOO SJTOOW S SO SOW SOO SOOW ST STW STO STOW STOO STOOW

AWG 16/3C CSJ SJW SJO SJOW SJOO SJOOW SJT SJTW SJO SJTOW SJTOO SJTOOW S SO SOW SOO SOOW ST STW STO STOW STOO STOOW

AWG 14/3C CSJ SJW SJO SJOW SJOO SJOOW SJT SJTW SJO SJTOW SJTOO SJTOOW S SO SOW SOO SOOW ST STW STO STOW STOO STOOW

AWG 12/3C CSJ SJW SJO SJOW SJOO SJOOW SJT SJTW SJO SJTOW SJTOO SJTOOW S SO SOW SOO SOOW ST STW STO STOW STOO STOOW


Prduction Images

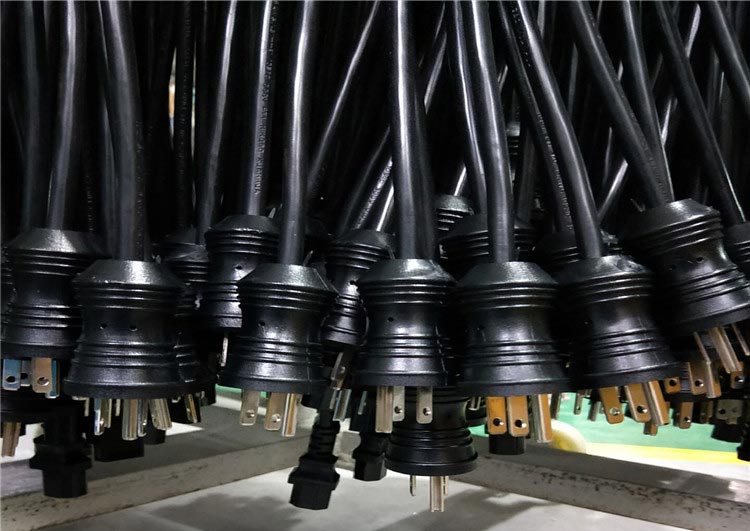

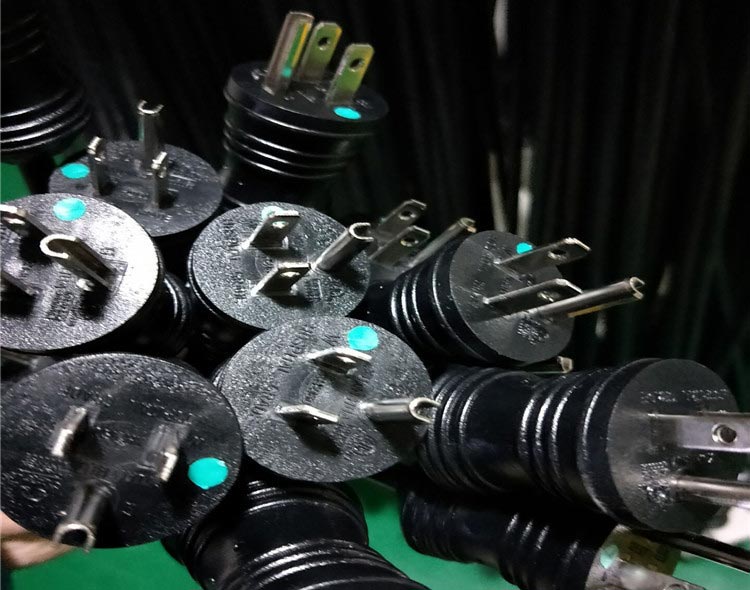

Medical Grade America Power Cord 5-15P Black Green Dot

Medical Grade America Power Supply Cord Manufacturer


Manufacturer Base Green Dot Medical Grade Power Supply Cord 5-15P Custom Length AC Power Cable, UL Listed

NEMA 5-15P Medical Grade Power Cord

NEMA 5-15P Medical Grade Power Cord 15 Amps 125 Voltage medical plug molded with custom long, color PVC or rubber.
Plug type: US 15A hospital grade plug with a green dot
Standard: NEMA 5-15P hospital grade
Approvals: UL, cUL
Electricity:15A, 125V
Number of Poles and Wires:2 poles 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options: ROJ, Termination
Quality System:ISO9001:2008
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number: XH216A
Plug Standard America NEMA 5-15P medical grade plug with green dot Maximum Electric Current rating 15A , Maximum Voltage 125V, Number of Poles and Wires 2 poles, 3 wires Grounded,hospital-grade power cord standards- tested to ANSI/UL 62 and 817 and can/CSA C22.2 no. 21 and 49

NEMA 5-15P hospital grade

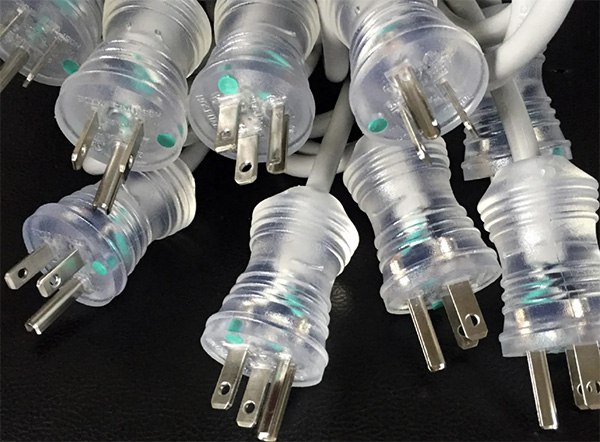

NEMA 5-15P Medical Grade Power Cord

NEMA 5-15P Hospital Grade Power Cord is black and white as a standard color. gray and custom color are available. Custom length and shielded America power cord, America AC power cables available. Terminated, custom stripping.

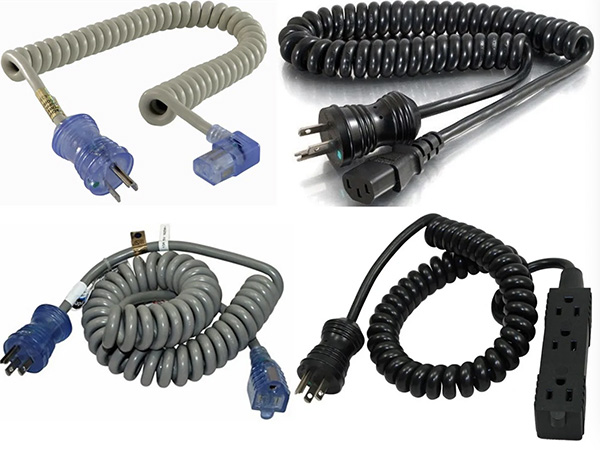

Spiral Powe Cords

Spiral cable PU / PUR / TPU / TPE / PE / PVC coiled cord jacket variety of colors as red, orange, black, white for Vehicle Equipment, generator, Hospital medical machine and other electric spiral cable applications, we have many years experienced in manufacturing spiral cables providing high quality and competitive price of retractable cable, spiral coiled cable, spiral cord, spring cable, spring wire and other custom flexible cable volume, coiled flexible cable, Long
Spiral Powe Cords


Available Opposite End
Normal Stripped, Splitter and ROJ

We manufacturers and supplies NEMA 6-20P Power Cord, custom color, the other end can be stripped, ROJ with custom length.

Available Opposite End


Common Termination

NEMA 6-20 Power Cord Angle Plug, one end is molded with NEMA  standard sheet plugs, the opposite could be terminated with types of terminals such as grounding rings terminals ,fork with heat shrink or  nylone insulated.

Common Termination


IEC 60320 Connectors

NEMA 5-15P Medical Grade Power Cord to IEC C13 computer power cable and molded with IEC C19 as PDU power cords are normal versions of America ac power cords with IEC connectors.

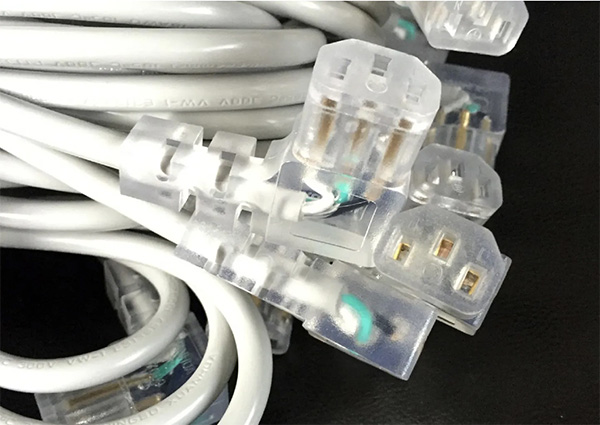

NEMA 5-15P Medical Grade Power Cord to IEC C13 computer power cable

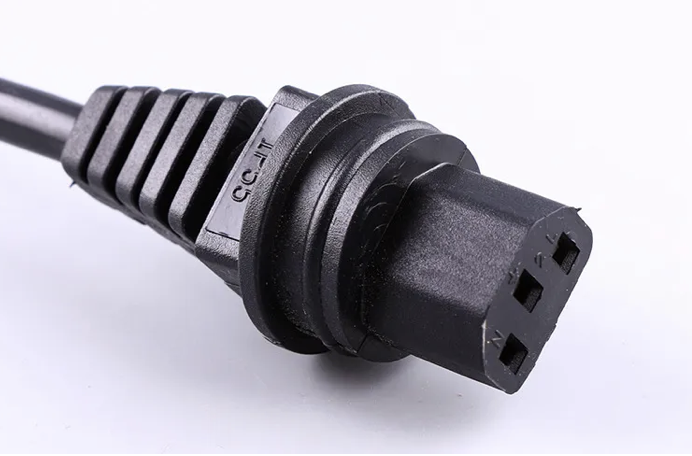

IEC 60320 C13 Power Cord Straight

IEC 60320 C13 Power Cord Straight

IEC 60320 C13 Power Cord Right Angle

IEC 60320 C13 Power Cord Right Angle

IEC 60320 C13 Power Cord Locking

IEC 60320 C13 Power Cord Locking

IEC 60320 C13 Power Cord Waterproof

IEC 60320 C13 Power Cord Waterproof

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord


Package

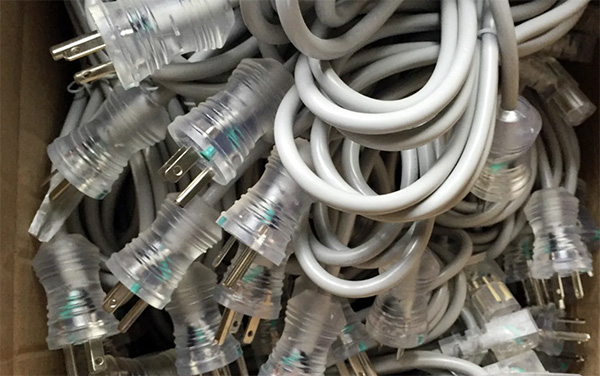

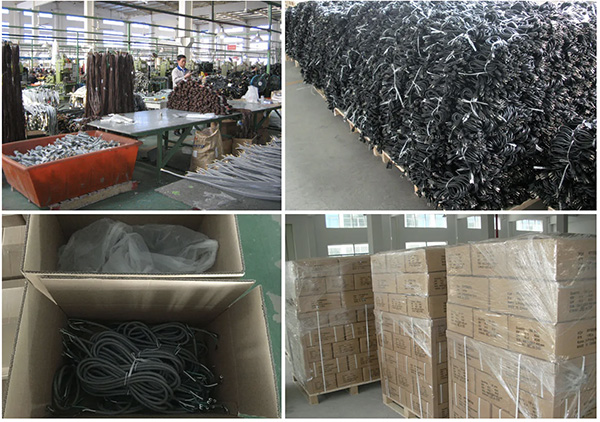

NEMA 5-15P Medical Grade Power Cord bulk packed with export cartons, pallets.
Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in USA, Canada and all countries in the world. Our extensive and complete USA power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for North America power cords as China leading USA power cord manufacturer and supplier.all of US power cords are approved by UL, cUL with Rohs and Reach compliant.Our hospital-grade NEMA 5-15P power cord is UL/CSA approved and RoHS certified.
