Sun System Lamp Ballast Power Supply Cord

Available Opposite End Connectors

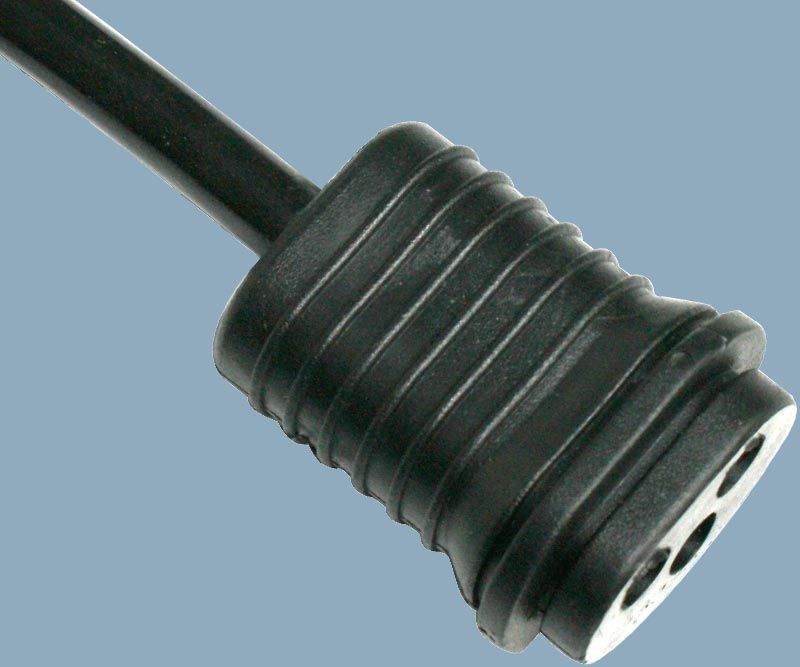

Sun System Lamp Ballast Socket

Available Cable Styles:

16/3 SJT SJTW SJTO SJTOW SJTOO SJTOOW
14/3 SJT SJTW SJTO SJTOW SJTOO SJTOOW
12/3 SJT SJTW SJTO SJTOW SJTOO SJTOOW

Other Termination Options

Click Here

Product Images

Sun System Ballast Power Supply Cords Hydrofarm Ballast Reflector 3 Prong with Custom Long Power Cords

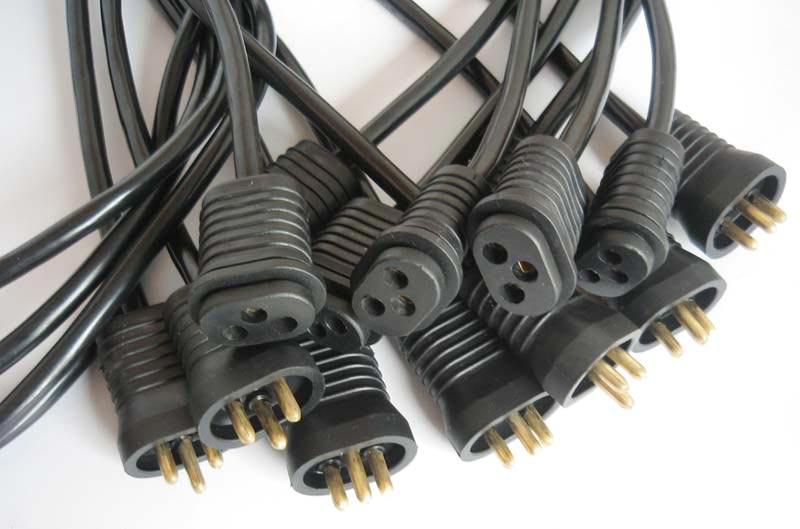

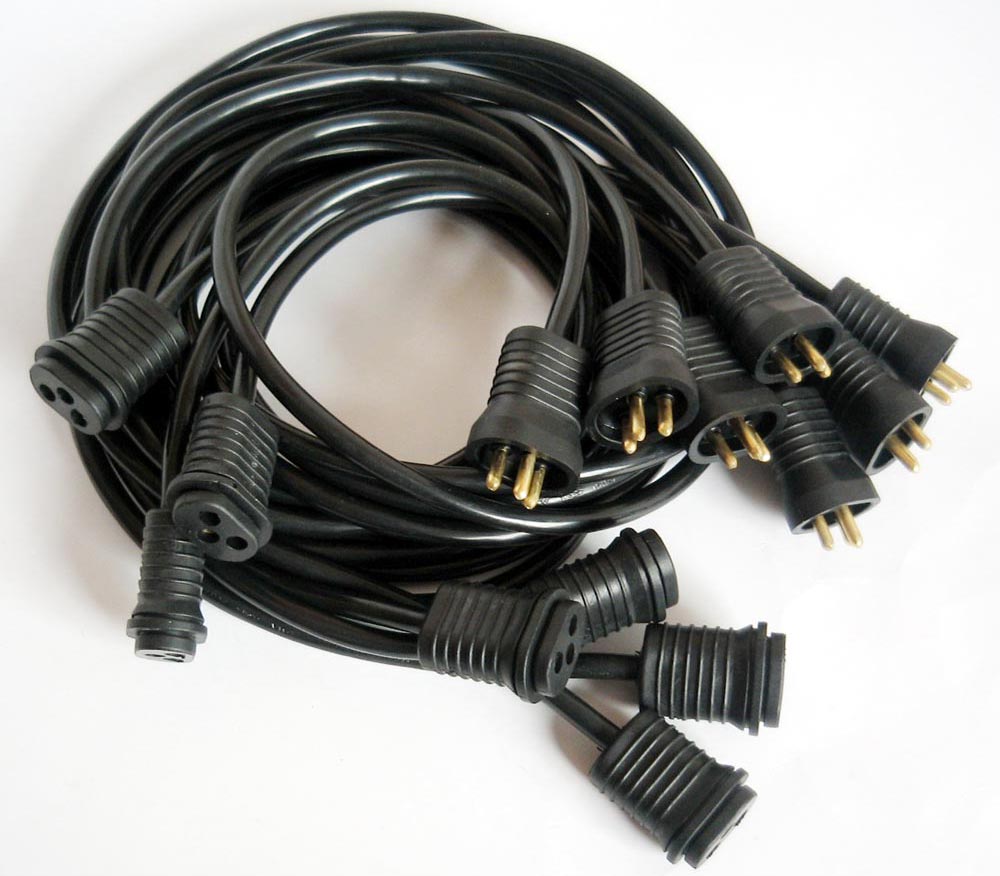

Sun System Ballast Power Supply Cords

Sun System Ballast Power Supply Cords 10A,13/15/20 max 30 Amps 125V, 250V,300, 600 Voltage 3 prong plug molded with custom long, color PVC or rubber.

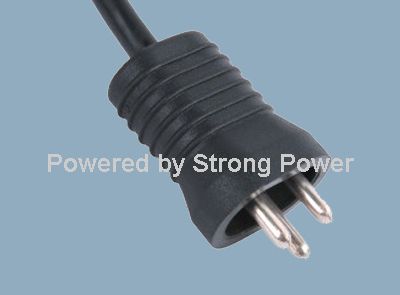

Plug type: 3-conductor Sun System Ballast Plug
Standard: Code D Sun System
Approvals: UL, cUL
Electricity:10/13/15/20/30A, 125/250/300/600V
Number of Poles and Wires:2 poles 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options: Sun System Ballast Socket, ROJ, Termination
Quality System:ISO9001:2008
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number: FT-4, XM03

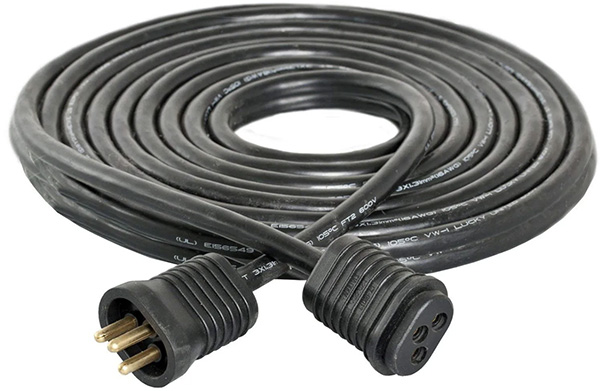

These cords plug into the female lamp cord receptacle on a Sun System ballast coming from the reflector. Allows a user to power your reflectors by custom length cable. Match cord gauge to your existing lamp cord gauge.

Cord and Electrical

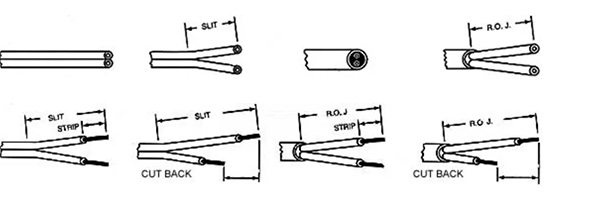

Available Opposite End
Normal Stripped, Splitter, and ROJ

We manufacture and supply Sun System Ballast, custom color, the other end can be stripped, ROJ with custom length.

Common Termination

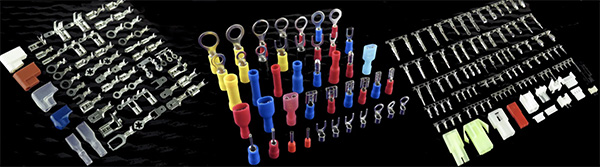

Ballast reflector power cord one end is molded with Sun System Ballast plugs,the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

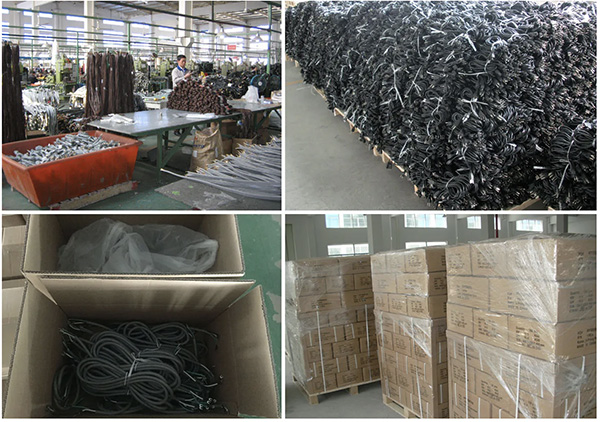

Package

Ballast reflector power cord power cords bulk packed with export cartons, pallets.
