Argentina power cord standard

Argentina IRAM 2063/2073 Power Cord,Plug,Flexible Cable Standard


Argentina IRAM 2063/2073 (Argentinian 10 A/250 V) and compatible types (Type I),connected with athree-wire earthed plug rated at 10 A (or 20A), 250 V defined by IRAM and used in Class 1 applications in Argentina.This plug is similar in appearance to the Australasian and Chinese plugs.

Contents
1 . Plug Guide
2 . Power Cord
3 . Flexible Cable
4 . Certifications

Plug Guide

The plug and socket used in Class 1 applications in Argentina is defined by IRAM. The applicable standards are: IRAM 2063/2073 "Two poles plugs with earthing contact for domestic and similar purposes, rated 10 A and 20 A, 250 V a.c." and IRAM 2071 "Two pole socket - outlets with earthing contact for 10 A and 20 A, 250 V a.c, for fixed installations. " It is similar in appearance to the Australasian and Chinese plugs. The pin length is same as the Chinese version. The most important difference from the Australian plug is that the Argentinian plug is wired with the line and neutral contacts reversed.


10 Amp Plug

Argentina Plug 10A
Argentina 10A Plug
This 10 amp plug has two flat 1.6 mm thick blades, set at 30° to the vertical, forming an upside-down V. Their centers are spaced 13.7 mm apart and both prongs measure 17.3 mm in length and 6.3 mm in width. The flat earth blade also measures 6.3 by 1.6 mm, but it is 20 mm long. The distance between the center of the grounding pin and the middle of the plug is 10.3 mm. There is an ungrounded version of this plug as well, with only two flat V-shaped prongs. Since 2004, all new type I plugs need to have insulated live and neutral pins.

A plug/socket configuration rated at 15 amps is also available, but the ground pin is wider: 8 mm instead of 6.3 mm. A standard 10 amp plug will fit into a 15 amp outlet, but a 15 amp plug only fits this special 15 amp socket. There is also a 20 amp plug whose prongs are wider still. A lower-amperage plug will always fit into a higher-amperage outlet but not vice versa. Australia’s plug/socket system is codified as standard AS 3112. Although there are slight differences (the pins of Chinese plugs are 1 mm longer and the sockets are installed with the earth contact facing upwards), the Australian plug mates with the socket used in the People’s Republic of China (mainland China)


Power Cord

Argentina Power Supply Cord products with IRAM certification are manufactured to the Argentina IRAM 2073 (Argentinian 10 A/250 V) and compatible types (Type I),connected with a three-wire earthed plug rated at 10 A (or 20A), 250 V defined by IRAM and used in Class 1 applications in Argentina.This plug is similar in appearance to the Australasian and Chinese plugs.The pin length is same as the Chinese version.The pin length is same as the Chinese version.For inquiry Argentina power cord please click this link for Argentina plug and drawings as we are China leading Argentina power cords manufacturer and supplier providing cheapest prices of Argentine IRAM approved ac power cord,ac power cable,electric ac plug,ac power plug,ac power connector,computer power cable,electric plug,electric power cord,electrical power plug,electrical power cord,laptop power cord,power cord with switch,power supply cord with IEC C7,C5,C13,C15,C19 connectors

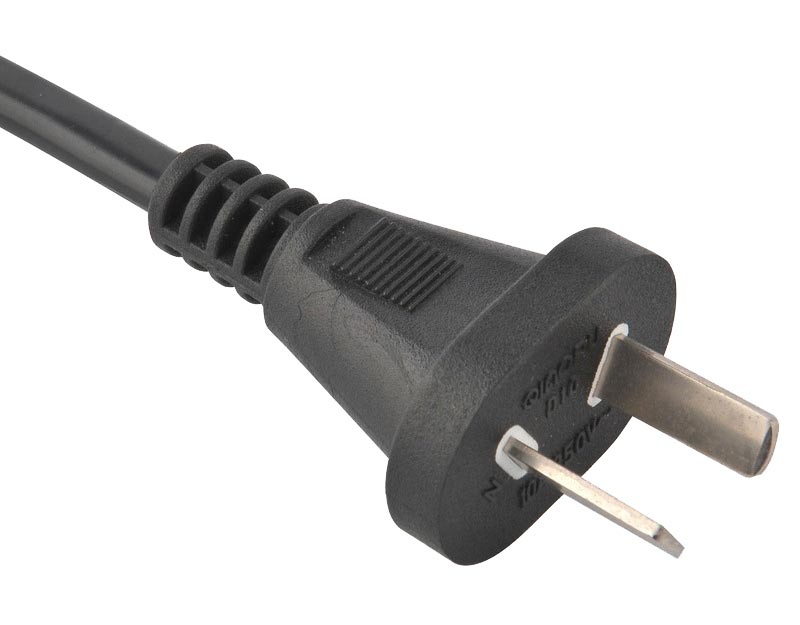

Argentina AC Power Cord 2 Conductor Y009A

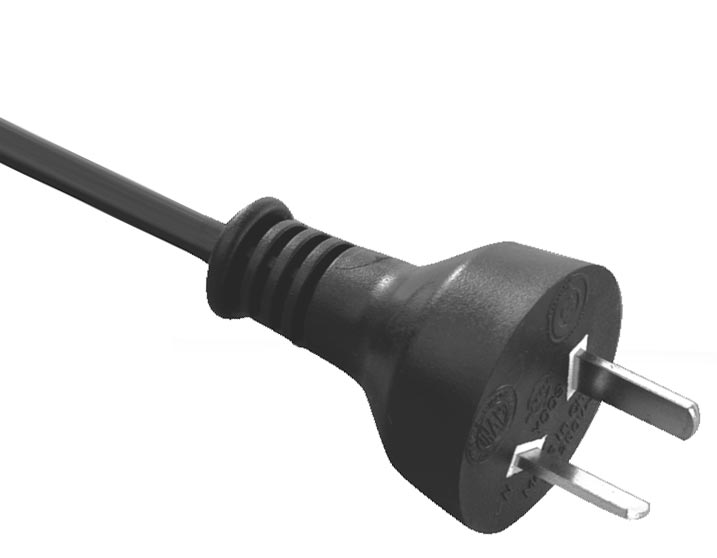

Argentina AC Power Cord 2 Conductor Y009

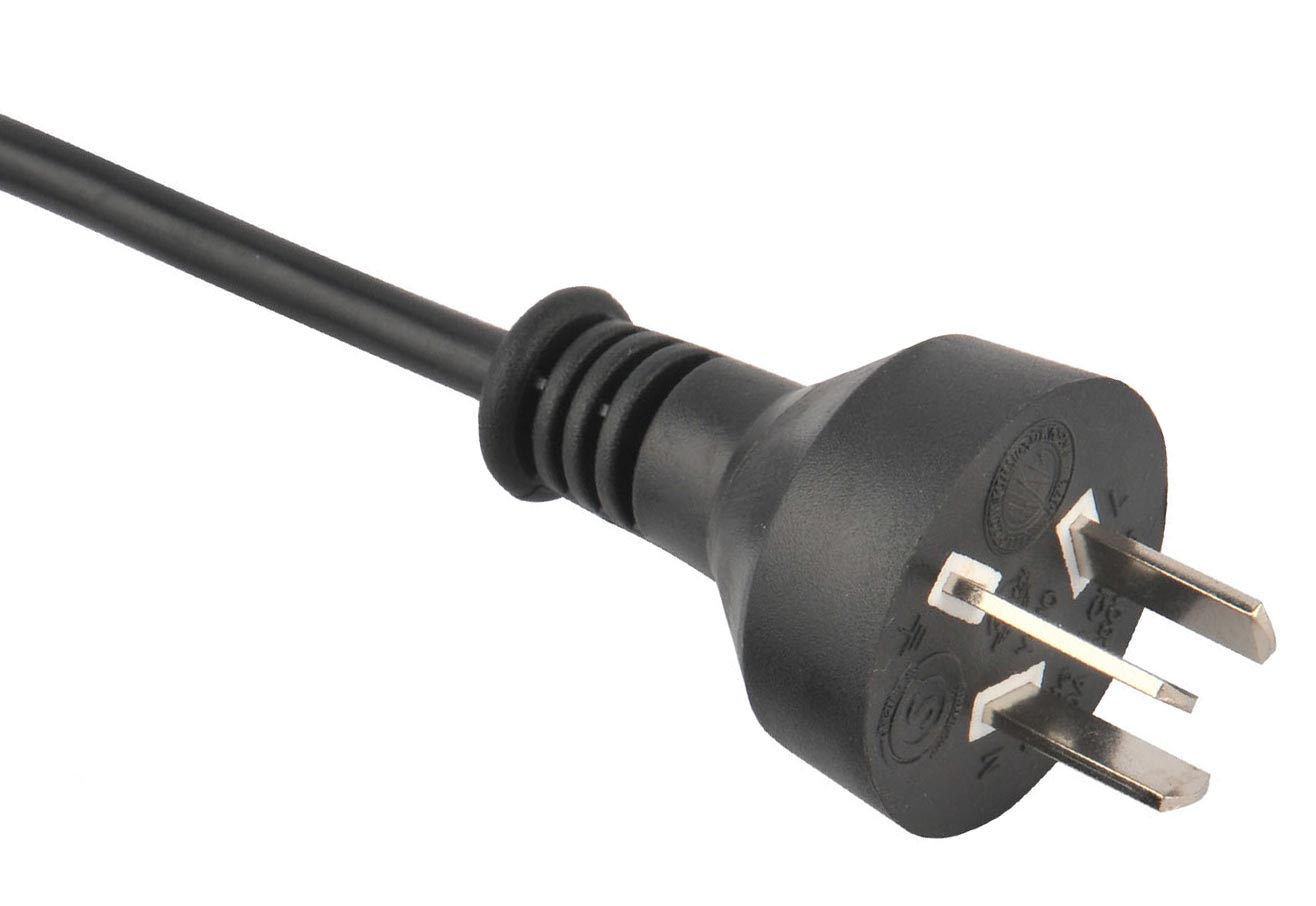

Argentina AC Power Cord Y010
Argentina AC Power Cord 2 Conductor Y009A Argentina AC Power Cord 2 Conductor Y009 Argentina AC Power Cord Y010


IEC 60320 Connectors

IEC 60320 power cables come in normal and high-temperature variants, as well as various rated currents. The connectors have slightly different shapes to ensure that it is not possible to substitute a cable with a lower temperature or current rating, but that it is possible to use an overrated cable. Cords also have different types of exterior jackets available to accommodate environmental variables such as moisture, temperature, oils, sunlight, flexibility, and heavy wear. For example, a heating appliance may come with a cord designed to withstand accidental contact with heated surfaces.
IEC 60320 C5 Power Receptacle
IEC 60320 C5 Power Cord
IEC 60320 C5 Power Cord with Protection Cover
IEC 60320 C7 Power Cord
IEC 60320 C5 Power Receptacle IEC 60320 C5 Power Cord IEC 60320 C5 Power Cord with Protection Cover IEC 60320 C7 Power Cord
IEC 60320 C7 Power Receptacle
IEC 60320 C13 Power Cord
IEC 60320 C13 Power Cord Right Angle
IEC 60320 C13 Power Cord Custom Made
IEC 60320 C7 Power Receptacle IEC 60320 C13 Power Cord IEC 60320 C13 Power Cord Right Angle IEC 60320 C13 Power Cord Custom Made
IEC 60320 C13 Power Cord Waterproof
IEC 60320 C14 Power Plug
IEC 60320 C14 Power Plug Waterproof
IEC 60320 C14 Power Plug Custom
IEC 60320 C13 Power Cord Waterproof IEC 60320 C14 Power Plug IEC 60320 C14 Power Plug Waterproof IEC 60320 C14 Power Plug Custom
IEC 60320 C14 Power Cord Right Angle
IEC 60320 C15 Power Cord
IEC 60320 C15 Power Cord Right Angle
IEC 60320 C17 Power Connector
IEC 60320 C14 Power Cord Right Angle IEC 60320 C15 Power Cord IEC 60320 C15 Power Cord Right Angle IEC 60320 C17 Power Connector
IEC 60320 C18 Power Plug
IEC 60320 C19 Power Connector
IEC 60320 C19 Power Cord Right Angle IEC 60320 C20 Power Cord
IEC 60320 C18 Power Plug IEC 60320 C19 Power Connector IEC 60320 C19 Power Cord Right Angle IEC 60320 C20 Power Cord


Flexible Cables

Argentina flexible cables are same as European power cables.

PVC Insulated Flexible Cord

Cable type Number of cores conductors Section mm2
H03VVH2-F ( Flat) 2 x 0.5-0.75
H03VV-F 2-4 x 0.5-0.75
H05VVH2-F (Flat) 2x 0.75-1.0
H05VV-F 2-5 x 0.75-4.0

90 PVC Insulated Heat-resistant Flexible Cord

Cable type Number of cores conductors Section mm2
H03V2V2H2-F ( Flat) 2 x 0.5-0.75
H03V2V2-F 2-4 x 0.5-0.75
H05V2V2H2-F ( Flat) 2 x 0.75-1.0
H05V2V2-F 2-5 x 0.75-4.0

Insulated and Sheathed with halogen-free thermoplastic compounds

Cable type Number of cores conductors Section mm2
H03Z1Z1 H2-F ( Flat) 2 x 0.5-0.75
H03Z1Z1-F 2-3 x 0.5-0.75
H05Z1Z 1H 2-F ( Flat) 2 x 0.75-1.0
H05Z1Z1-F 2-3 x 0.75-1.5

Rubber Flexible Cord

Cable type Number of cores conductors Section mm2
H05RN-F 2-3 x 0.75-1.0
H05RR-F 2-5 x 0.75-4.0
H07RN-F 2-5 x 1.0-4.0

Water resistant Polypropylene or equivalent synthetic Elastoplast sheath cables

Cable type Number of cores conductors Section mm2
H07RN8-F 2-5 x 1.0-4.0

Single core non-sheathed cable for decorative chains

Cable type Number of cores conductors Section mm2
H03VH7-H 1 x 0.5-0.75

Single core non-sheathed cable for internal wiring for a conductor temperature of 90

Cable type Number of cores conductors Section mm2
H05V2-K 1 x 0.5-1.0

Cable for photovoltaic systems

Cable type Number of cores conductors Section mm2
PV1-F 0.6/1KV 1.5mm2 2.5mm2 4.0mm2 6.0mm2 25mm2 35mm2


Certificatoin

Argentina IRAM 2063/2073 standardized plug
Argentina Argentina
UL Argentina IRAM
UL-Argentina certificated
IRAM certificated
