American Power Cord Standard

American Power Cord Plug Extension Socket Cable

Most of North America, and some of South America, use connectors standardized by the National Electrical Manufacturers Association. The devices are named using the format NEMA n-mmX, where n is an identifier for the configuration of pins and blades, mm is the maximum amperage, and X is either P (plug) or R (receptacle). For example, NEMA 5-15R is a configuration type 5 receptacle supporting 15 amps. "P" and "R" versions are designed to be mated. The prefix "L" is added for the locking types; a 15 amp 120 volt two pole grounding plug is designated NEMA L5-15P. Twist-locking types are used for additional protection from accidental disconnection, or to prevent interchange with parallel blade types For some configurations, the arrangement of pins will differ slightly for the different current ratings, to prevent accidental mating of devices with a higher current draw than the receptacle can support.

Contents

1 . Plug Guide
2 . Power Cords
3 . Extension Cords
4 . Cable Reels
5 . Flexible Cables
6 . Certifications
7 . References

Plug Guide

A brief description of some common NEMA standards plugsappears below. A more comprehensive list, with more detail.

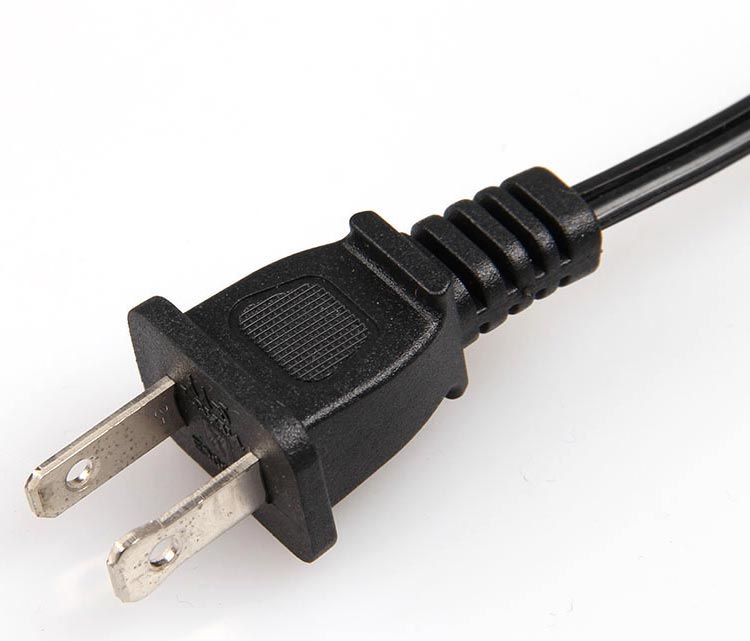

NEMA 1-15 ungrounded (Type A)

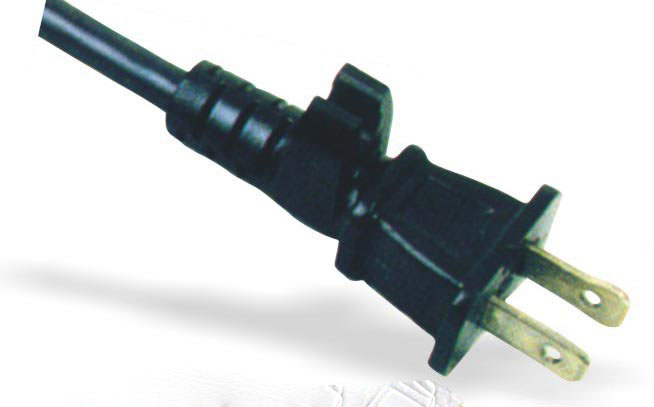

NEMA 1-15P Plug

NEMA Code
NEMA-1 plugs are compatible with both NEMA-1 receptacles and NEMA-5 receptacles; NEMA-1 is ungrounded (no earth), while NEMA 5 is grounded. The plug has two parallel blades. Early versions were not polarized, but most plugs are polarized today via a taller neutral blade on the plug that fits a wider neutral slot on the receptacle. (Unpolarized AC adapters are a common exception.) Ungrounded NEMA-1 outlets are not permitted in new building construction in the United States and Canada, but can still be commonly found in older construction. Allowed replacement of NEMA-1 receptacles varies by local code.

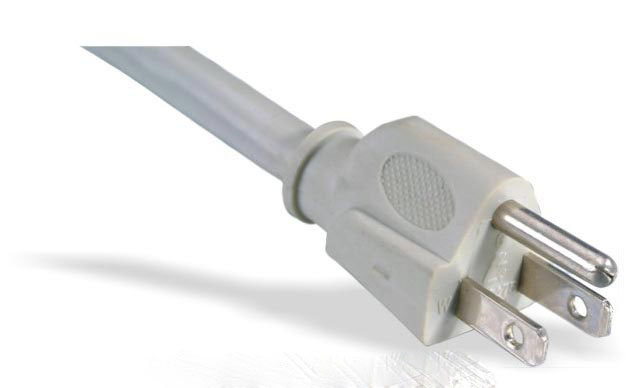

NEMA 5-15 grounded (Type B)

NEMA Code

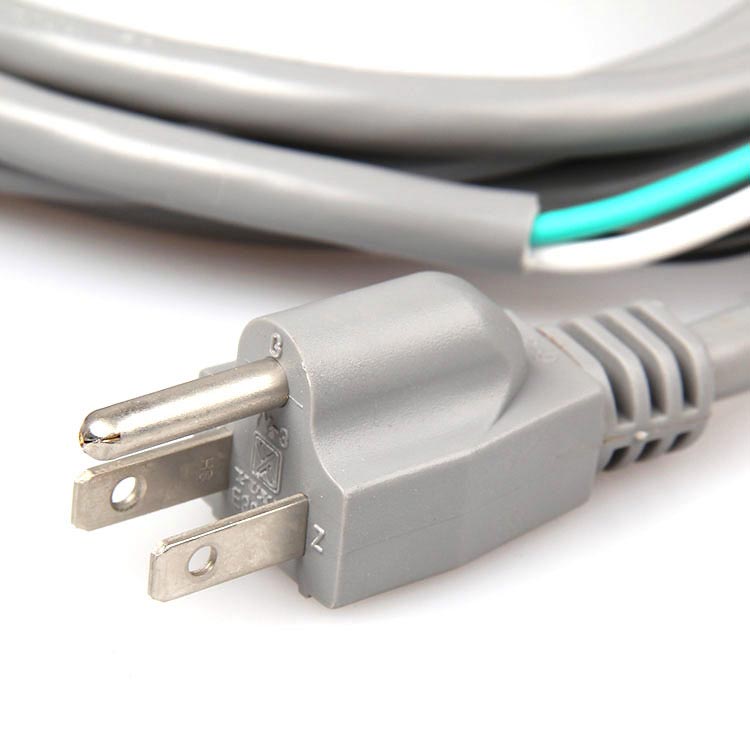

The NEMA 5-15 plug has two flat parallel blades like NEMA 1-15, but also adds a ground (earth) pin. It is rated 15 A at 125 volts. The ground (earth) pin is longer than the line and neutral blades, so the device is grounded before the power is connected. Both current-carrying blades on grounding plugs are normally narrow, since the ground (earth) pin enforces polarity. NEMA 1-15 plugs are also compatible with NEMA 5-15 sockets.

NEMA 5-15P Plug

The 5-15 socket is standard in Canada, the United States, Mexico and Panama. It is also used in Central America, the Caribbean, northern South America (Colombia, Ecuador, Venezuela and, as a legacy, parts of Brazil), Japan, Taiwan, the Philippines and Saudi Arabia. This socket is recommended in IEC standard 60906-2 for 120 volt 60 Hz installations. Looking directly at a NEMA 5-15 socket in the commonly found orientation of ground (earth) at the bottom, the neutral slot is on the left, and the line slot is on the right. However, in the US the National Electrical Installation Standards (NECA 130-2010)[67] specifies that the ground hole should be on top. Sideways installation is also permitted; in this case, NECA 130-2010 specifies the neutral (long) slot is on top. In 46 of the 50 United States and all of Canada, tamper-resistant sockets are now required in new residential construction. These prevent contact by objects like keys or paper clips inserted into the socket. In stage lighting, this connector is sometimes known as PBG for Parallel Blade with Ground (earth), Edison or Hubbell, the name of a common manufacturer.

Power Cords

American NEMA standard Cord Sets and Power-supply Cord,UL CSA certification are manufactured to the America NEMA,connected with receptacles as locking adapters,connected with switch as switched power cord,connected with IEC 60320 series as computer power cable or other appliances electric cables,Locking Power Supply Cord,Rang & Dryer Cords,Appliance Connector,Hospital Grade Power Cord,Medical Grade Power Cord,Detachable Appliance Plugs,Assembly Plug and Connector,Nondetachable Power Supply Cords Special Use,Adapter cord set,Indoor Extension Cords,Outdoor Seasonal-Use Cord-Connected listed are,cord Manager,Ground Fault Circuit Interrupter(GFCI) all of America power cords are approved by UL cUL(CSA)with Rohs and Reach.

Power Plug and Socket Type

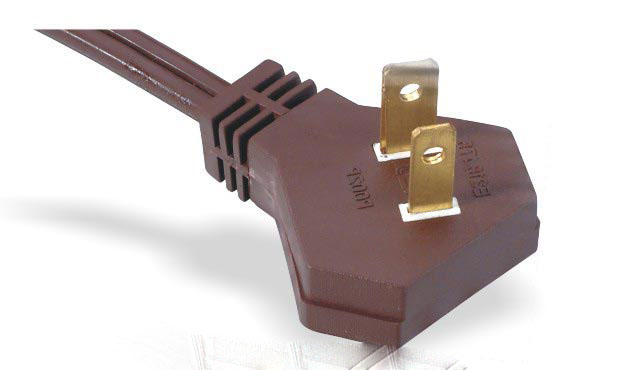

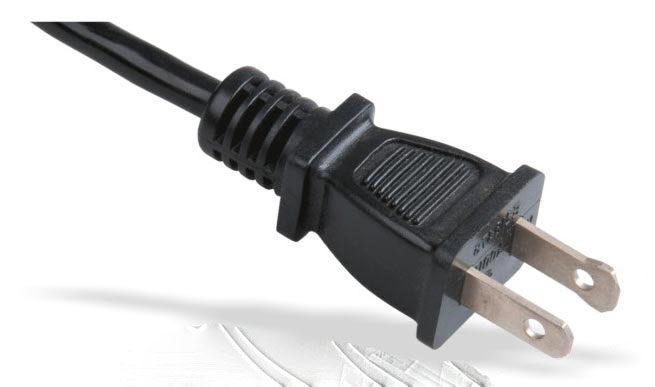

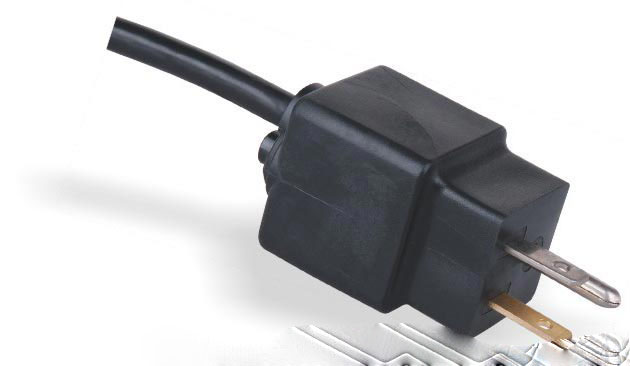

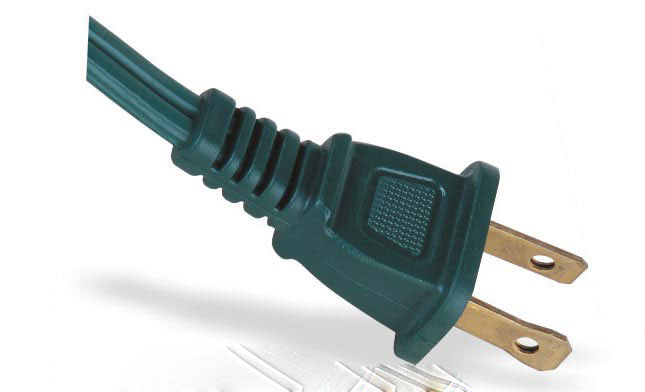

Power Supply Cord America NEMA 1-15P LA001A	Power Supply Cord America NEMA 1-15P LA001B	Power Supply Cord America NEMA 1-15P LA001C	Power Supply Cord America NEMA 1-15P LA002P

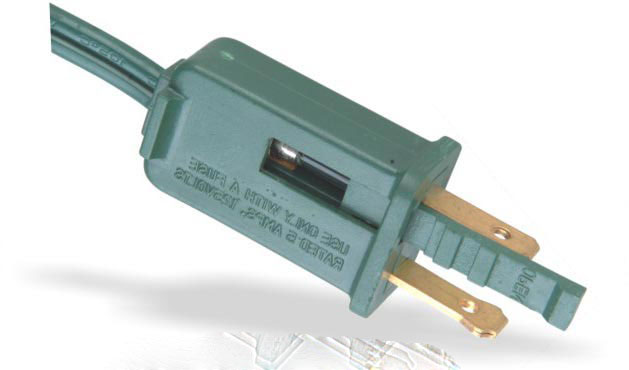

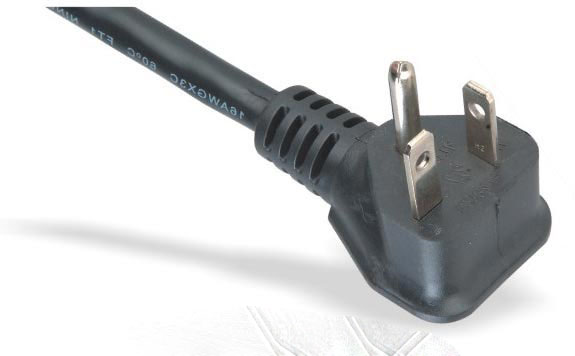

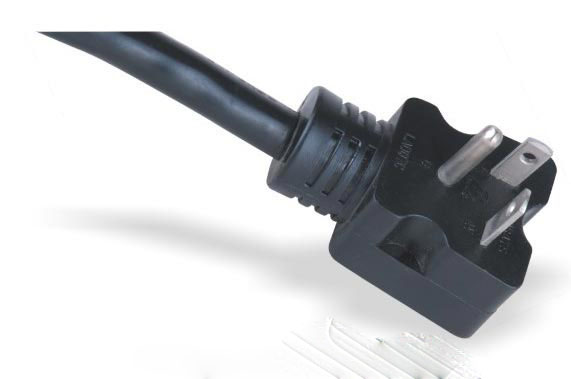

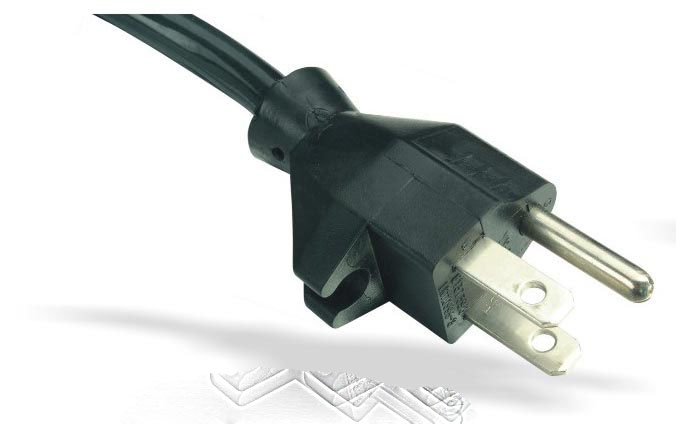

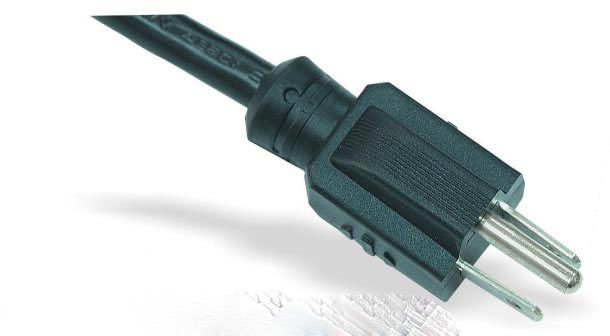

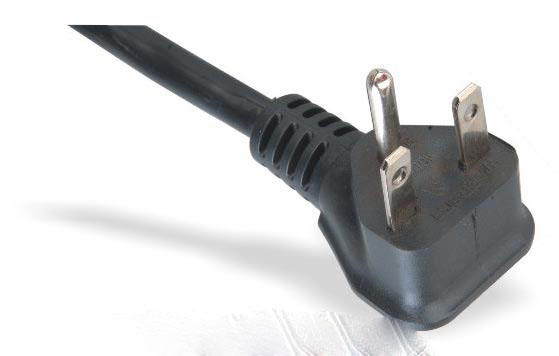

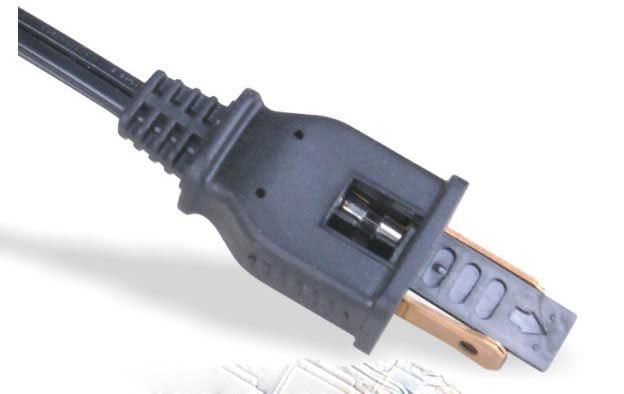

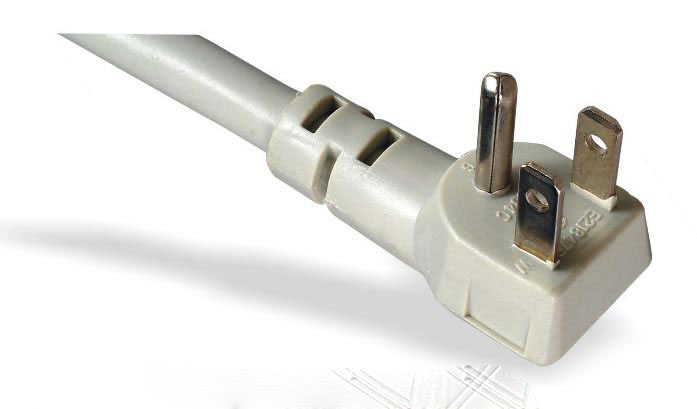

Power Supply Cord America NEMA 1-15P Fuse 5A and 10A LA001E	Power Supply Cord America NEMA 1-15P LA001F	Power Supply Cord America NEMA 5-15P LA004A	Power Supply Cord America NEMA 5-15P LA004B

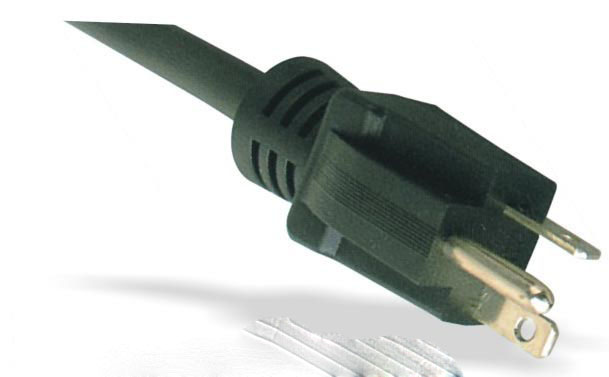

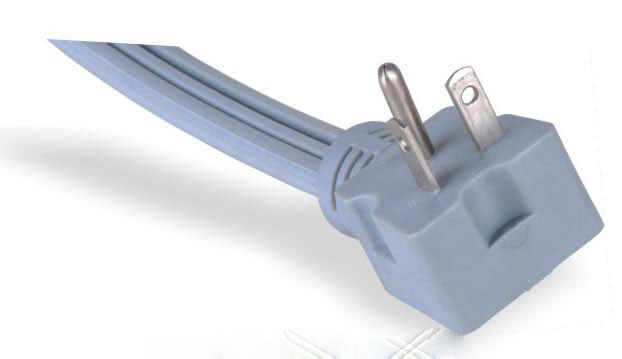

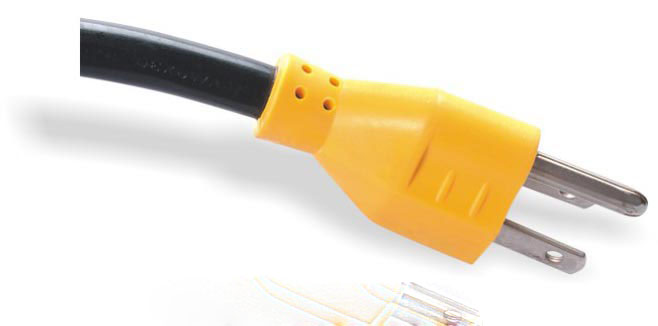

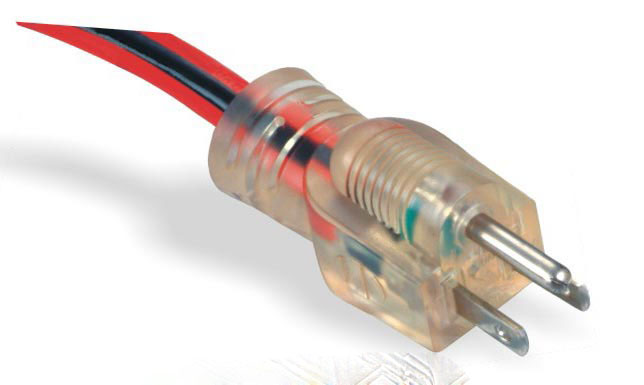

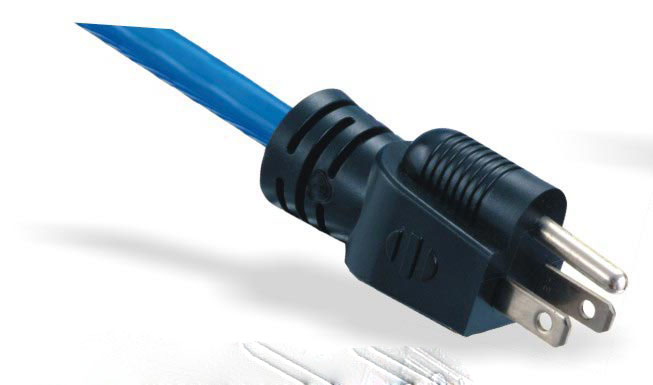

Power Supply Cord America NEMA 5-15P Outdoor LA004C	Power Supply Cord America NEMA 5-15P LA004E	Power Supply Cord America NEMA 5-15P Flat Plug LA003P	Power Supply Cord America NEMA 5-15P LA004H

Power Supply Cord America NEMA 5-15P LA004I	Power Supply Cord America NEMA 5-15P LA004K	Power Supply Cord America NEMA 5-15P LA004L	Power Supply Cord America NEMA 5-15P LA004P

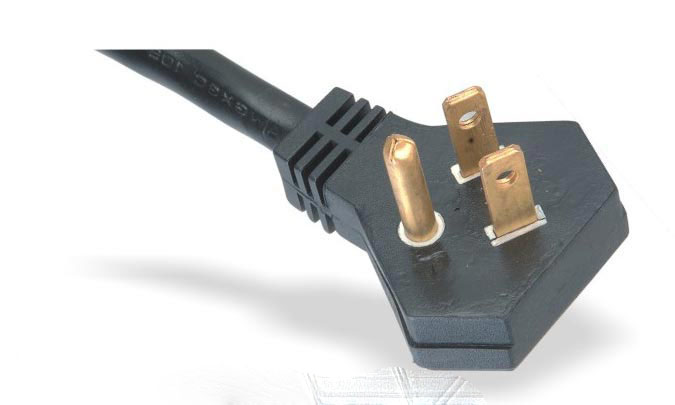

Power Supply Cord America NEMA 6-15P LA006A	Power Supply Cord America NEMA 6-20P LA007A	Power Supply Cord America NEMA 6-20P LA007B	Power Supply Cord America NEMA 5-20P LA007C

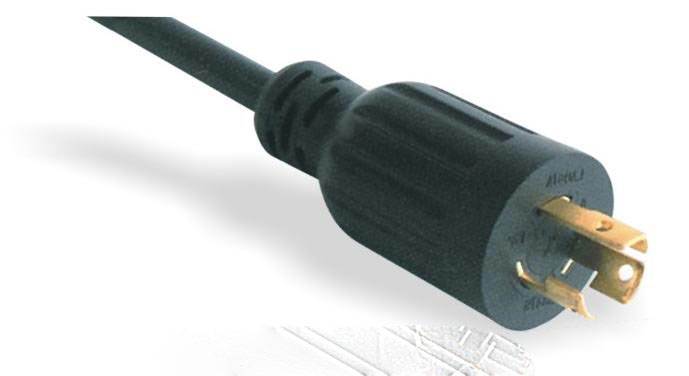

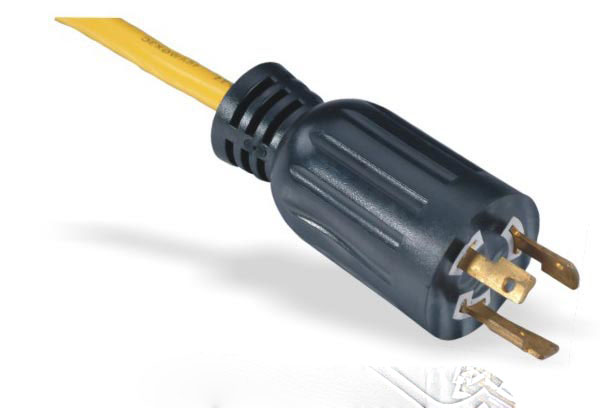

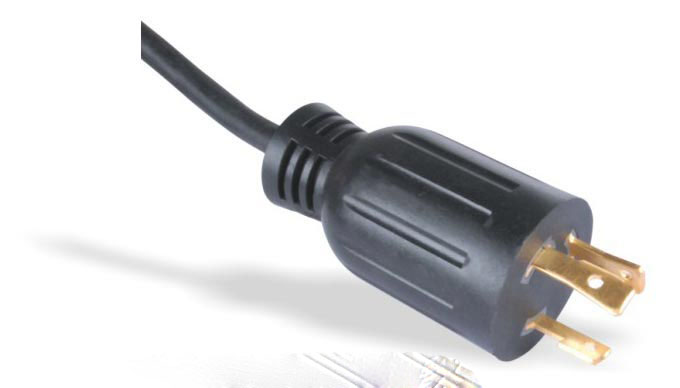

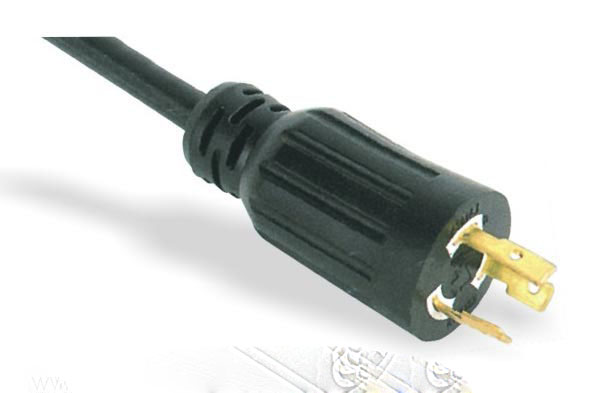

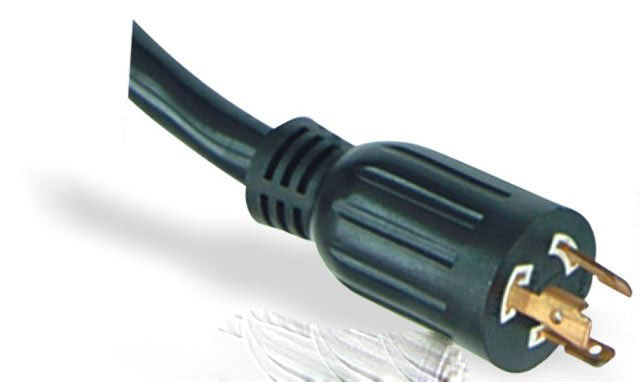

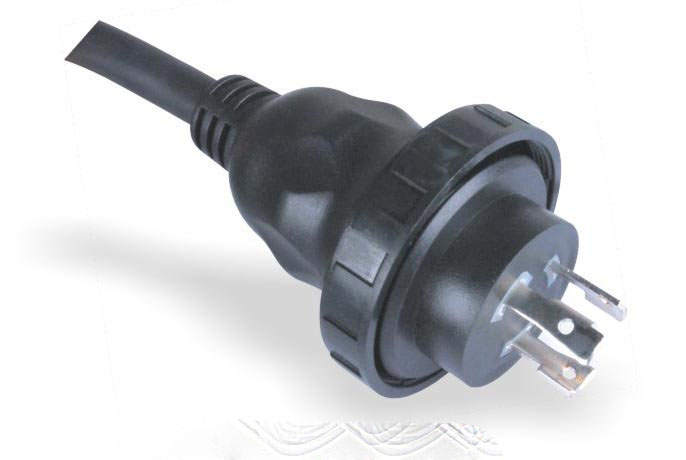

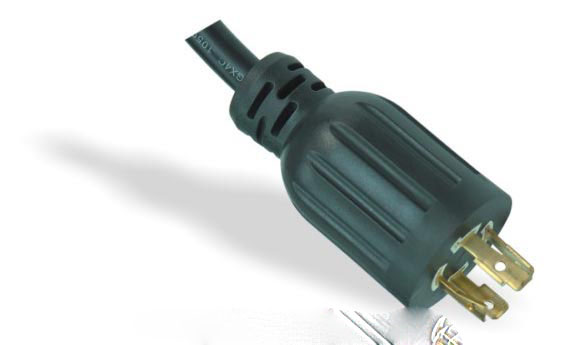

Power Supply Cord America NEMA 5-20P Outdoor LA007E	Locking Cord 3 Conductor L5-15 America LA060A	Locking Cord 3 Conductor L5-20 America LA062A	Locking Cord 3 Conductor L6-15 America LA064A

Locking Cord 3 Conductor L6-20 America LA065A	Locking Cord 3 Conductor L7-15 America LA067A	Locking Cord 3 Conductor L5-30 America LA530P	Locking Cord 3 Conductor L6-30 America LA630P

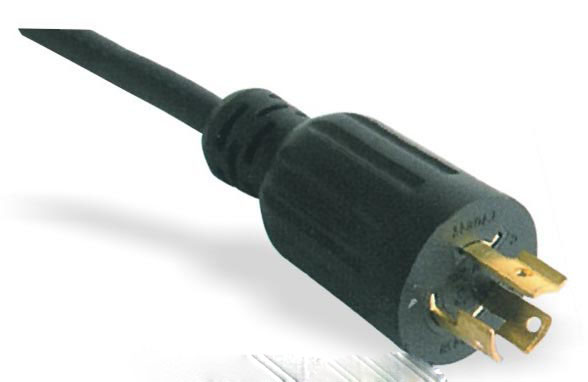

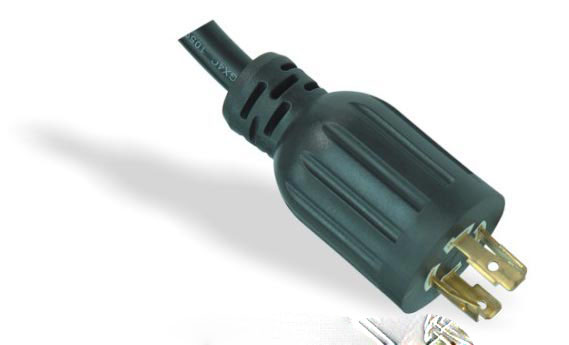

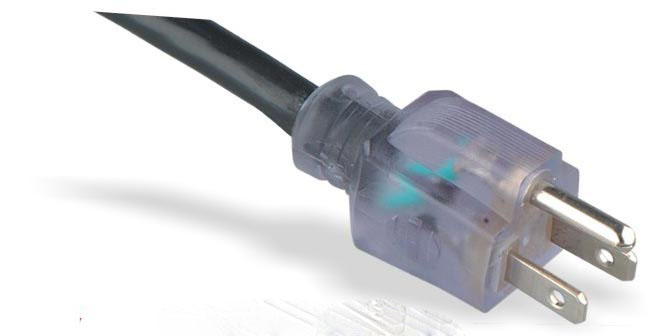

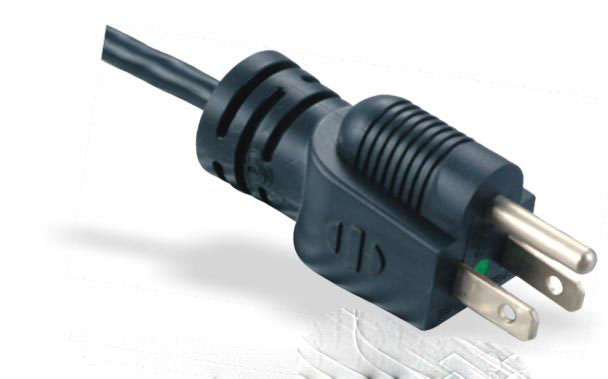

Locking Cord 3 Conductor L14-20 America LA045A	Locking Cord 3 Conductor L14-30 America LA047A	Locking Cord 3 Conductor L5-30 America LA530PW	Power Supply Cord Hosptital Grade America LA004J

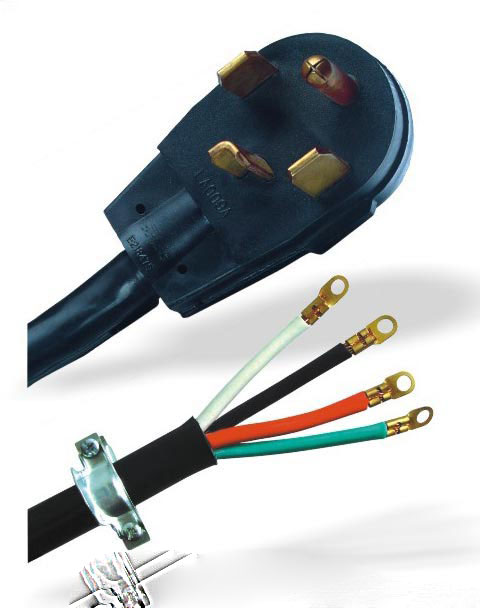

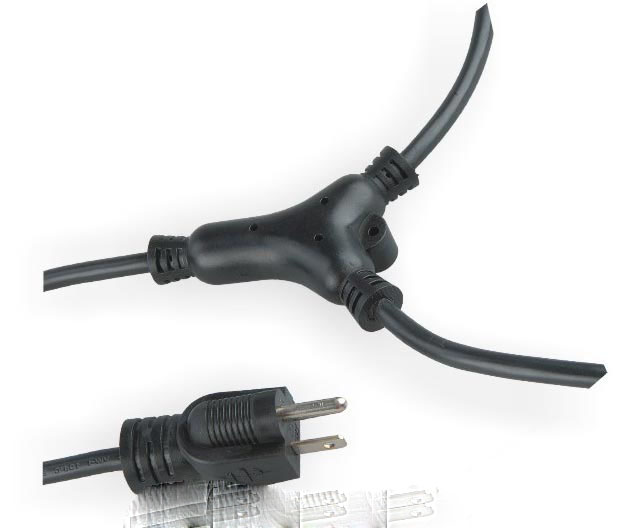

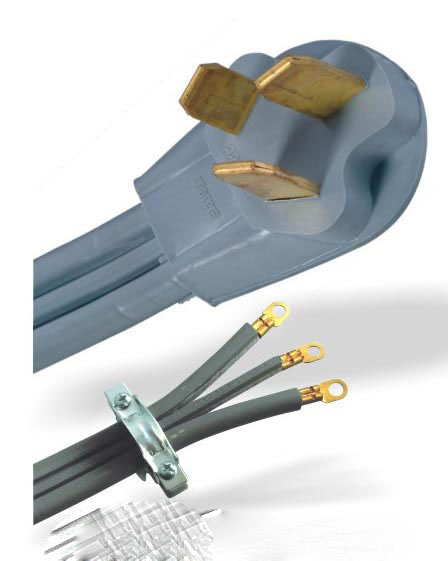

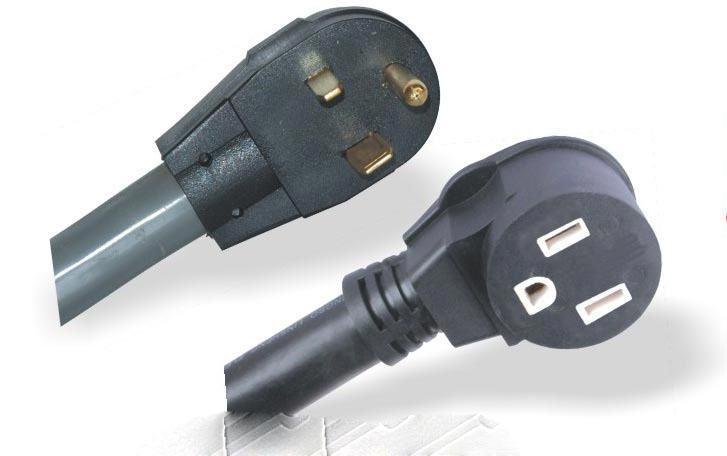

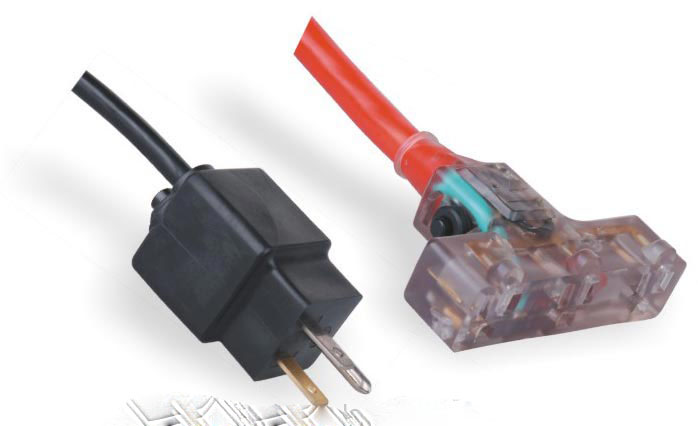

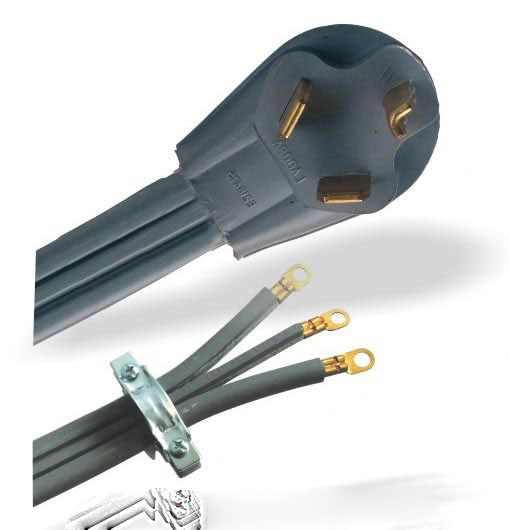

Power Supply Cord Overcurrent Protector America LA004CS	Power Supply Cord 3 Outlet Connector with Indicator Light and Overcurrent Protector LA004CS/LA052L	Power Supply Cord Y-Joints Attachment Plug America LA068B	Dryer Cord America LA008A

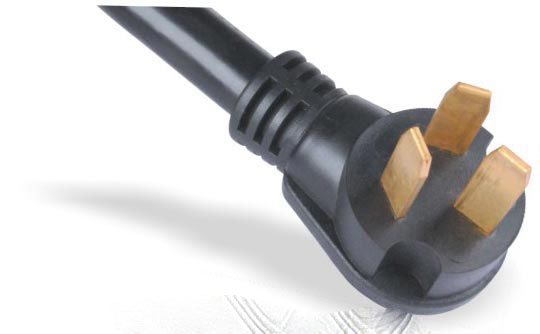

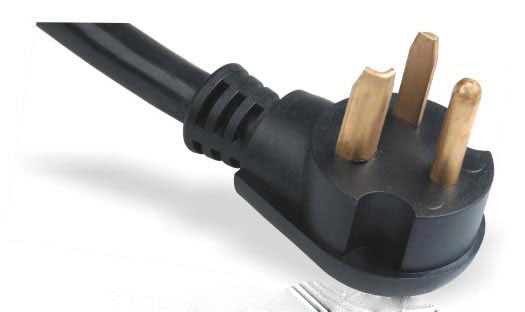

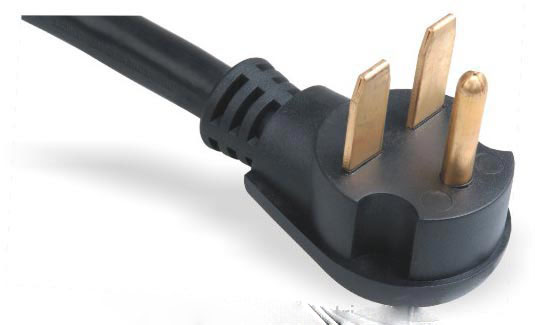

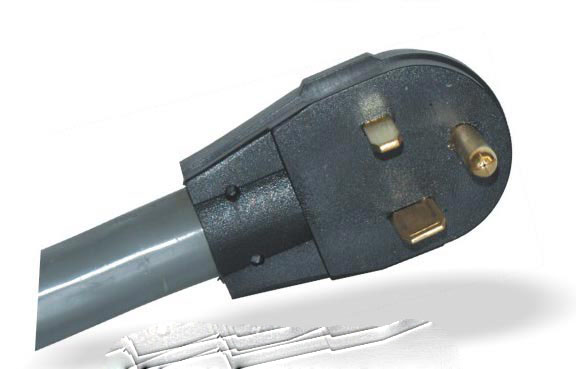

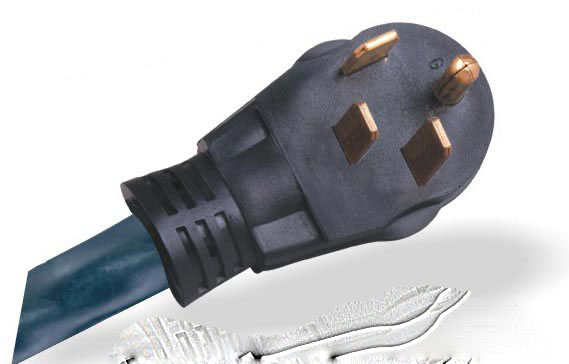

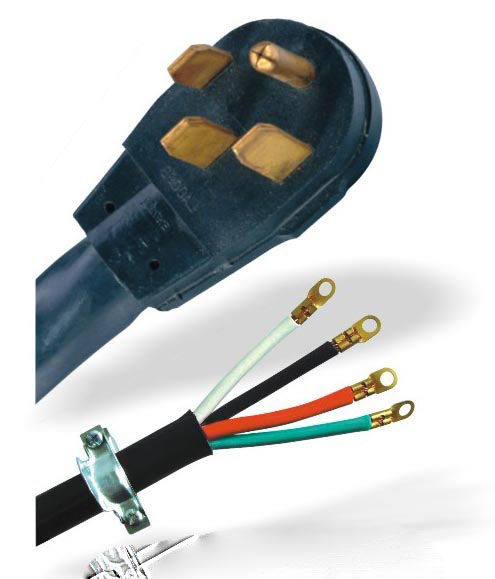

Rang Cord America LA008B	Dryer Cord America LA009A	Rang Cord America LA0098	Power Supply Cord NEMA 6-50P America LA008C

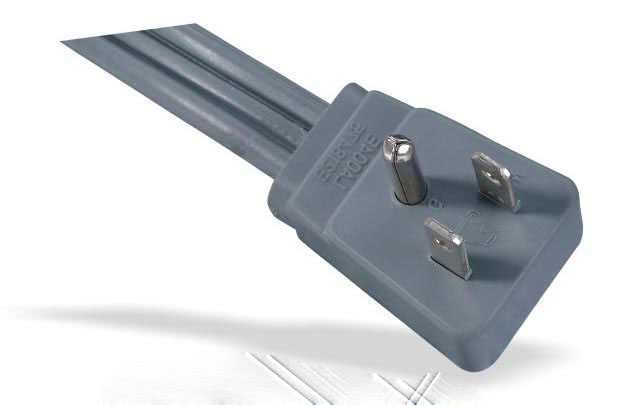

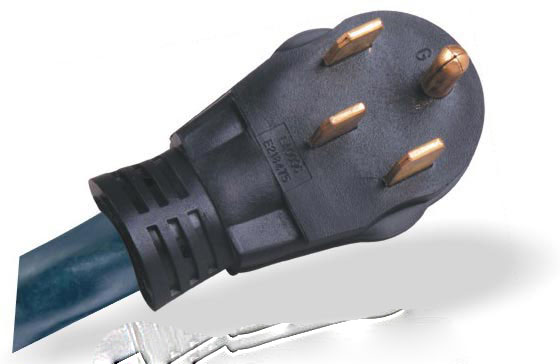

Power Supply Cord NEMA 5-30P America LA008D	Power Supply Cord NEMA 6-30P America LA008E	Power Supply Cord NEMA 10-50P America LA008F	Power Supply Cord NEMA 14-50P America LA009C

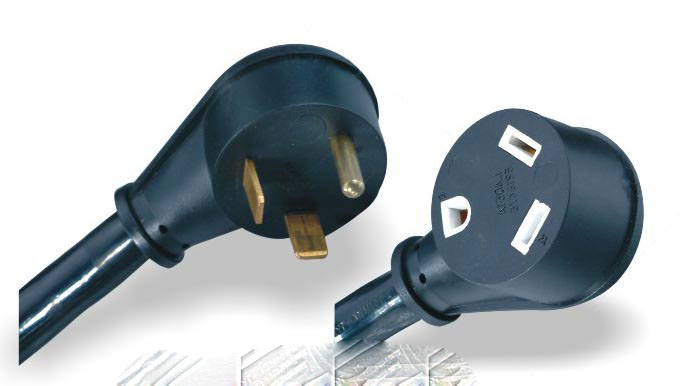

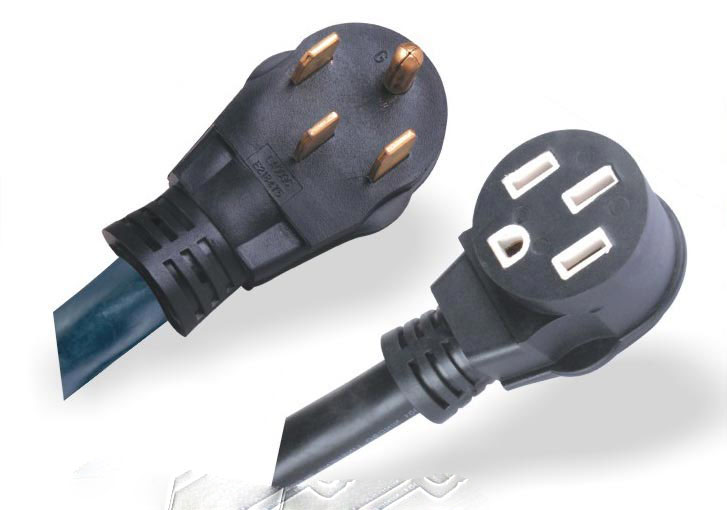

Power Supply Cord NEMA 15-50P America LA009D	RV Cord Set 6-50P America LA008C-LA650R	RV Cord Set 14-50P America LA009C-LA1450R	RV Cord Set TT-30P America LA050A-LA51A
