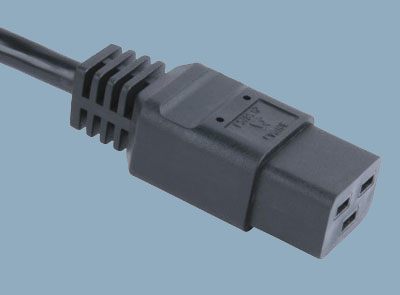

IEC 60320 C19 Power Cord

These IEC C19 power cords are available for any country worldwide as well as extension cord versions commonly known as C19 to C20 power cords or C20 to C19 power cords. We can also build up power cords with your desired configuration. You can email or call us for the facility.

IEC Standard VDE UL CSA SAA CCC KTL Approval IEC 60320 power cord。

Available Opposite End Connectors:

Standard                                                    Part NO

GB2099                                                     PSB-16(GB2099)China

NEMA 5-15P                                              YY-3G(NEMA 5-15P)North America

NEMA 6-20P                                               YY-3H(NEMA 6-20P)North America

AS 3112                                                      YA-4(AS 3112)Australia

Other Termination Options:

Click Here

Available Cable Styles:

SJT/ST/SJ 16-14-12AWGX3C
H05VV-F 1.0-1.5-2.5mm2X3C
227 IEC53(RVV) 1.0-1.5-2.5mm2X3C

IEC 60320 C19 Power Cords Straight Receptacle Manufacturer Base Custom Length / Color AC Power Cable
IEC 60320 C19 Power Cords Straight

Plug type: IEC 320 C19 straight
Standard: IEC 60320 C19
Approvals: CE, SAA, CCC, PSE, UL, cUL
Electricity:250V, 15A
Number of Poles and Wires:2 poles 3 wires earthed
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:ROJ, Termination, IEC 320 C5, C13,C15,C19
Quality System:ISO9001:2008
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number: ST6
Molded with custom length power cable, black and white color are standard, grey or custom colors are available, The 60320 C19 IEC power cord receptacle is commonly used in the high power data center and server environments with devices such as servers, PDUs, and other data center and network gear. We produce high-quality products at competitively low prices. All of our products are RoHS compliant and environment-friendly.
