AC Power Cord > Power Cord > Brazil Power Cords > Brazil 6147 Plug To IEC 60320 C7 AC Power Cord
Brazil-6147-Plug-To-IEC-60320-C7-AC-Power-Cord
  • Brazil 6147 Plug To IEC 60320 C7 AC Power Cord

  • Brazil NBR 6147 stanadard 2 pin 2.5 Amps plug to IEC 60320 C7 receptacle power cord with UC Inmetro certification,mostely moulded with H03VVH2-F 2X0.75mm2 flat cable widly using in Brazil small applications as Shavers,trimmers,printers and so on.These IEC C7 power cords are commonly used in a variety of applications including electric shavers, portable electronics, notebook computers, CD and DVD players, kitchen appliances and game systems such as PlayStation II and Wii. Available in both polarized (one side flat) and non-polarized versions with the non-polarized being the far more popular power cord style.
  • Contact Us
Detailed description

Male Plug Brazil 6147 2.5A Plug
Female Receptacle IEC60320 C7 Brazil
Amperage Up to 2.5A
Voltage Up to 250V AC
Available Wire Styles H03VVH2-F 2x0.5-0.75mm2
H05VVH2-F 2x0.5-0.75mm2
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Cable Lenth Custtom length available
Certifications UC,INMETRO,TUV
Environmental Certifications RoHS, REACH
Testing 100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
MOQ 3000pcs
Delviery lead date 15-20days
Pakcing Export cartons
Samples Free samples can be sent within 3 days
Payment TT 30percent Advance,balance after shipping,L/C



Brazil Power Cord NBR 6147 Plug IEC 60320 C7 Power Cable , Mains Lead Custom Length / Color,INMENTRO/UC/TUV Approved

Brazil Power Cord NBR 6147  (Brazil plug) IEC 60320 C7 Power Cable Custom Long, Color


Plug type: Brazil 2 wire plug

Standard: NBR 6147
Approvals: TUV
Electricity:2.5 Amp ,,250V
Number of Poles and Wires:2 poles 2 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options: IEC 60320 C7
Quality System: ISO9001:2008
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number: YHB-1/ST2,BR2-3/JT-ST2
NBR 6147 (Non-Polarized) Brazil Power Cord Plug, 2.5 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding Brazil Power Cords, Power Supply Cord Sets to Connector Standards IEC 60320 (320) C-7, C17,  Unterminated. Brazil NBR 6147 (Brazilian 2.5A, 10A / 250 V) and compatible types (Type N), connected with a two-wire ungrounded plug rated at 10 A, 250 V defined by Inmetro, TUV. The Brazil AC plugs and Sockets are mostly only used in Brazil
Brazil Type N power cords are black, white as a standard color. Brazil power cords in gray or custom colors are special orders. Custom length and shielded Brazil AC power cables available. Terminated, custom stripping, hanked Brazil cords available. IEC 60320 C-7, C17 connectors available on some Brazil AC power cords.

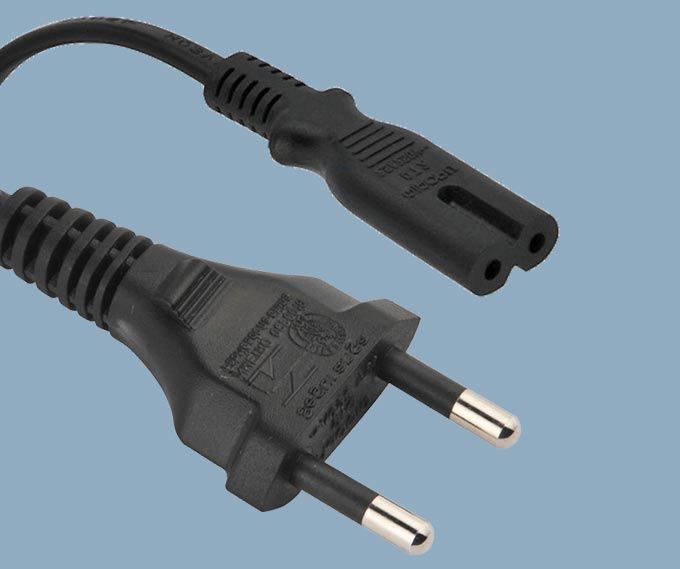

Brazil Power Cord to IEC C7


Package

The NBR 6147 (Non-Polarized) Brazil Power Cord Plug, 2.5 Amp to IEC 60320 C7 Bulk packed with export cartons, pallets.

Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in Brazil and all Countries in the world. Our extensive and complete Brazil power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for Brazil AC  power cords as China leading Brazil power cord manufacturer and supplier. all of Brazil’s AC power cables are approved by Inmetro or TUV and Rohs  /  Reach compliant.
