Home > Power Cord > America Power Cords > America 2 Prong NEMA 1-15P AC Power Cord
America-2-Prong-NEMA-1-15P-AC-Power-Cord

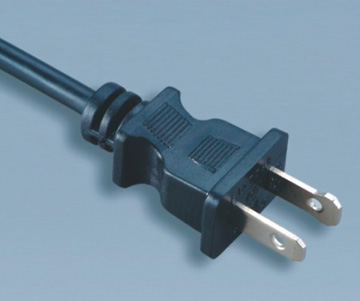

  • America 2 Prong NEMA 1-15P AC Power Cord

  • NEMA 1-15P USA two prong power cord plug with North America certification.  Built to NEMA 1-15P standards.  Rated up to 15A 125V, 13A 125V or 10A 125V.

    America 2 Prong AC Power Cord Plug,Rated Up to 15A 125V,Buile to North America NEMA 1-15P Standards and designed for 2 Conductor Unearthed American Power Supply Cord Applications.All Of Power Plug and Socket America,North America Power Cords Are Fully Molded with Ergonomic Design with Rohs / Reach Compliant.

    NEMA 1-15P polarized version available click here:YY-2


  • Contact Us
Detailed description

Connector Standard

America 2P 1-15 plug

Maximum Current rating

15A

Maximum Voltage

125V

Number of Poles and Wires

2 poles, 2 wires

Outer Mold Material

60P PVC

Blade Material

Nickel coated Brass

Flamability Rating

94V-0

Color

Any color available

Cable length

Any length available

Temperature Rating

minus 40C though plus 75C

Approvals

North America

Environmental Certifications

RoHS, REACH

Testing

Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity


Available Opposite End Connectors:


Item                                  Part No

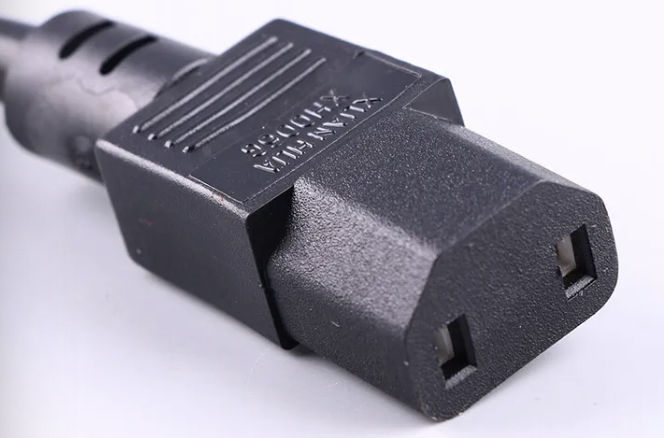

IEC C7                             ST2,IEC C7 North America


NEMA1-15R                   YY-2Z(N1-15R)America

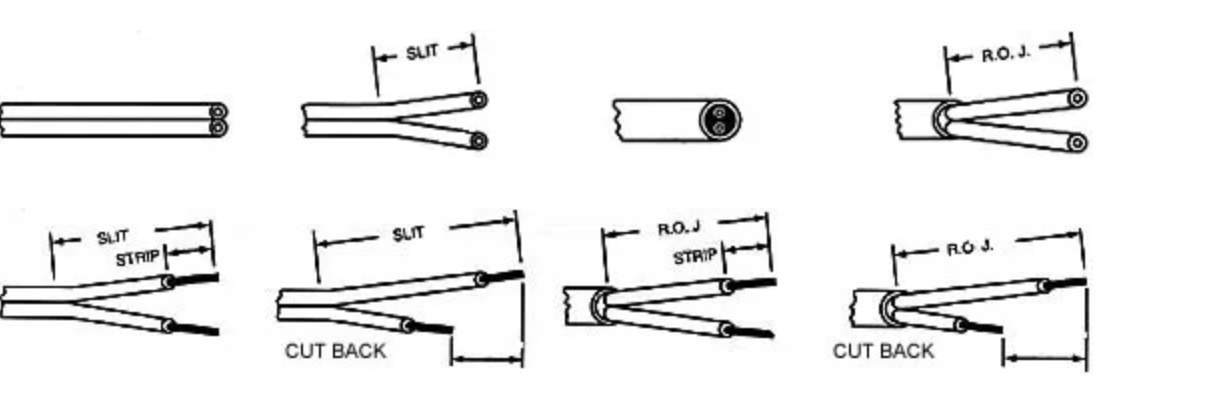

Other Termination Options:


Click Here


Available Cable Styles:


AWG 14/2C SJT SJTW

AWG 16/2C SJT SJTW SVT

AWG 18/2C SVT SJT SJTW

AWG 17/2C SVT


More Information:


NEMA Power Cord Standard

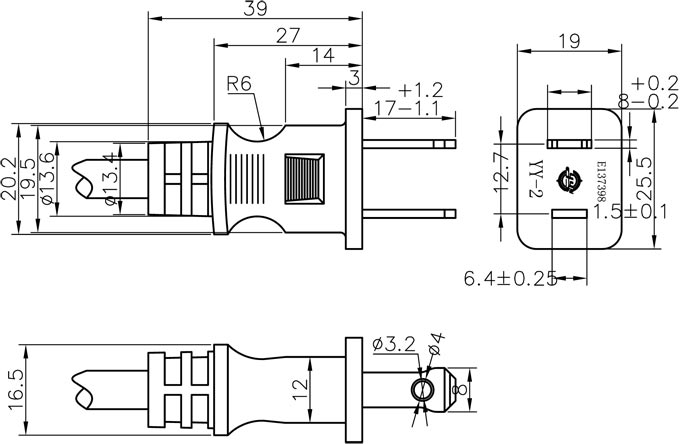

Plug Drawing

American UL Power Cord 1-15P
