AC Power Cord > Power Cord > UK Power Cords > UK BS 1363 A ASTA Rewirable Fuse Max 13A Plug Power Cord
UK-BS-1363-A-ASTA-Rewirable-Fuse-Max-13A-Plug-Power-Cord

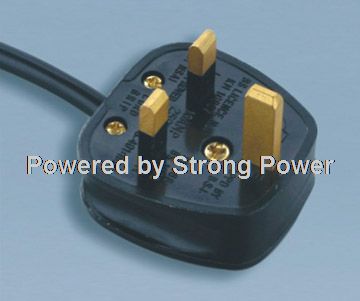

  • UK BS 1363 A ASTA Rewirable Fuse Max 13A Plug Power Cord

  • BS1363 and BS1363A British and UK three prong fused power cord molded plug with the British ASTA certification.  Built to the British standard BS1363 for British power cord plugs and rated up to 13A 250V~, 10A 250V~, 5A 250V~ or 3A 250V~ depending upon wire and fuse selected.In Great Britain the electricity supplied by the normal wall inlet is called the mains power system and therefore this UK power cord plug is also referred to as the UK mains plug, the BS1363 mains plug or British mains power plug.  Our BS1363 power cords are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

    Link to BS1363 to C13:Y006A/ST3

    Link to BS1363 to C5:Y006A/ST1

    Link to BS1363 to C7:Y006A/ST2

    Linj to BS1363 Plug(non-rewirable):&a

  • Contact Us
Detailed description
Plug Standard British UK Rewire-able fuse plug
Maximum Current rating 13A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, (2) 3 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Cable length Custom length available
Temperature Rating minus 40C though plus 75C
Approvals ASTA , BS , VDE
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 2000pcs
Samples Free and could be sent within three days


Available Opposite End Connectors:


Standard                                                           Part NO


IEC 60320 C13                                                   ST3(IEC C13)UK


IEC 60320 C5                                                     ST1(IEC C5)UK


IEC 60320 C7                                                     ST2(IEC C7)UK


IEC 60320 C15                                                   ST3H(IEC C15)UK


BS receptacle                                                     XH033A(BS1363)UK


Other Termination Options:


Click Here


Available Cable Styles:


H03VV-F   2X0.5mm23A 2X0.75mm26A 3X0.5mm23A 3X0.75mm26A

H03VVH2-F 2X0.5mm23A 2X0.75mm26A

H05VV-F   2X0.75mm26A 2X1.0mm210A 2X1.5mm213A

3X0.75mm26A 3X1.0mm210A 3X1.5mm213A

H05VVH2-F 2X0.75mm26A 2X1.0mm210A

H05RR-F   2X0.75mm26A 2X1.0mm210A 2X1.5mm213A

3X0.75mm26A 3X1.0mm210A 3X1.5mm213A

H05RN-F   2X0.75mm26A 2X1.0mm210A 3X0.75mm26A 3X1.0mm210A

H07RN-F   2X1.0mm210A 2X1.5mm213A 3X1.0mm210A 3X1.5mm213A

A05VV-F 3X1.25mm2


More Information:


UK BS1363 certification

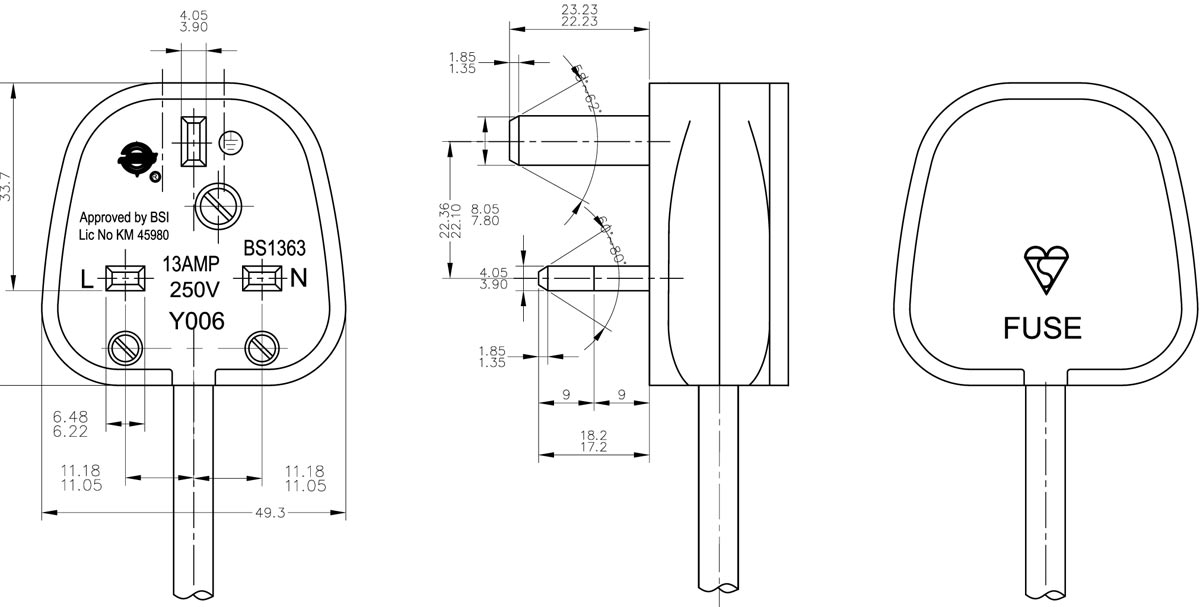

BS1363 fused plug UK power cord drawing


BS 1363 Fuse Plug UK Power Cord Drawing

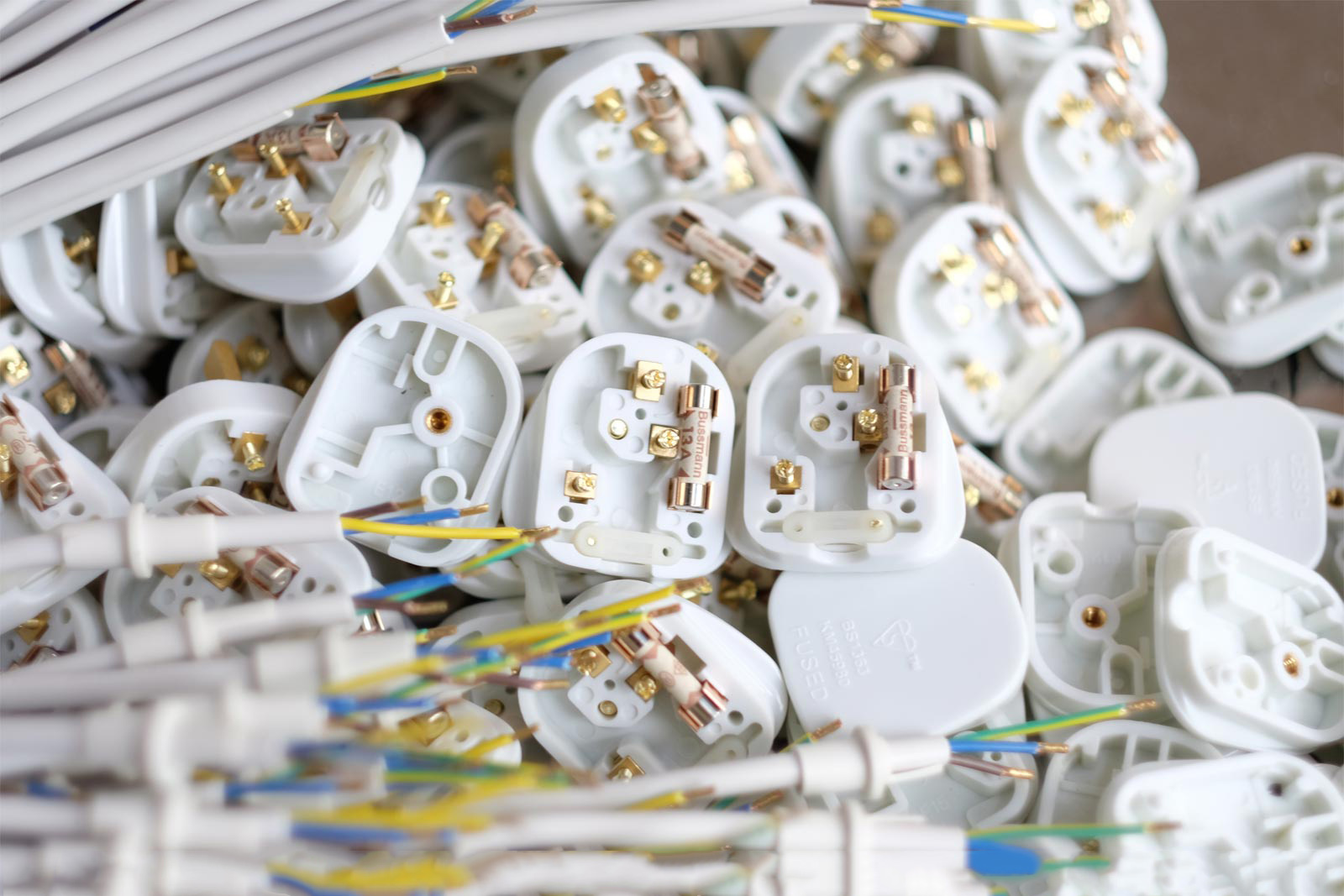

Mains Power Cable Rewireable Images

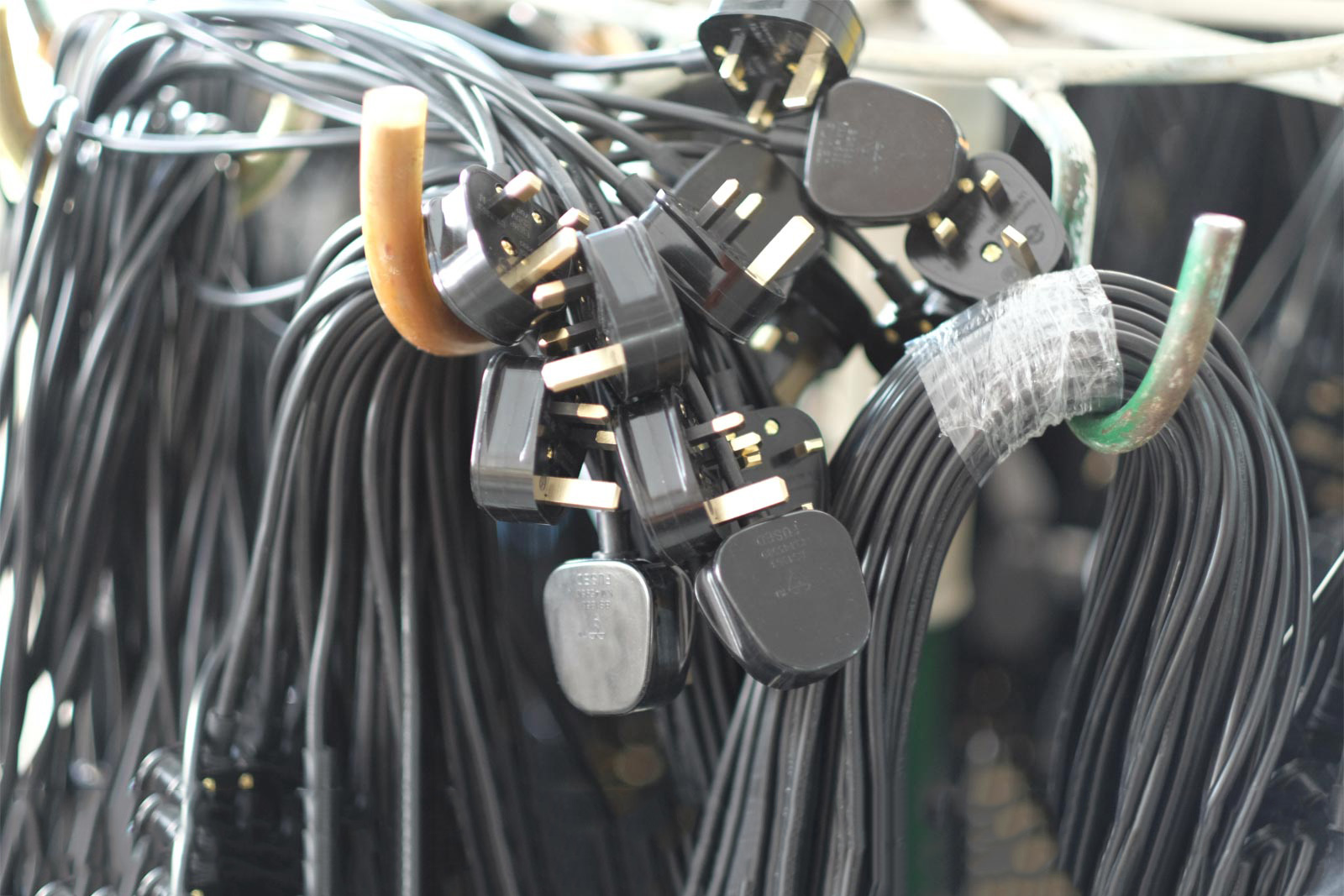

Mains Power Cable UK Rewirable Plug

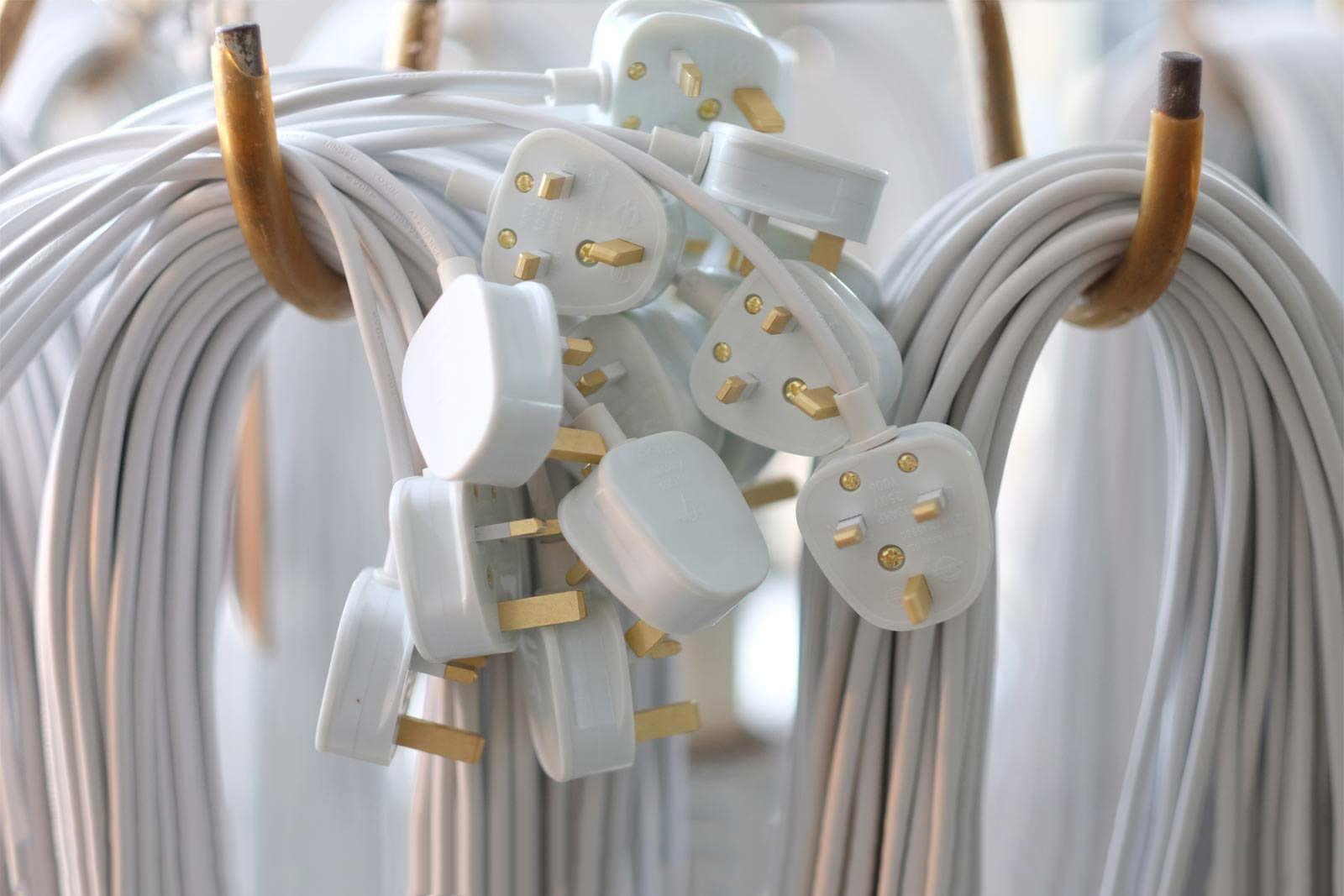

Mains Power Cable UK Rewirable Plug

Mains Power Cable UK Rewirable Plug


United Kingdom Power Cord and Power Supply Cord Sets 3A,5A,13A Fuse 250V BS 1363 AC Type G Rewireable Plug

UK Power Cord Fuse 250V BS 1363 AC Type G Rewirable Plug

Plug type: Rewireable Type G plug
Standard:BS 1363-1:2016 + A1:2018
Approvals: ASTA, BSI, VDE
Electricity:3A, 5A, 13A 250
Number of Poles and Wires:2 pole 2 wires, 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Termination Options:ROJ,IEC,terminations
Quality System: ISO9001:2008
Color: Custom color, white and black are normal
Plug Insert Material: PBT, ABS
Blade Material: Nickel coated brass
Cable Specifications: Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications: RoHS, REACH, PAHS
Model number: JT006,Y006
Plug standard United Kingdom Power Cords 3Amp,5 Amp, 13 Amp BS 1363, 13 Amp 250 Volt AC, 2 poles 3 wire non-grounding  and 2 Pole 3 Wire Grounding, Type G Reliable Plug Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, C17 Unterminated
UK power cord rewireable plug is black and white as the standard color. gray and custom colors are available. Custom length and shielded United Kingdom cord sets  AC power cables available. Terminated, custom stripping.
We produce UK types of mains leads, UK mains cords, mains cables, line cords, and mains power lead, OEM UK power cords with custom cable color, length and termination grommet, strain relieves.


Available Opposite End
Normal Stripped, Splitter, and ROJ

We manufacturers and supply the UK power cord Rewireable Plug, the other end can be stripped, ROJ with custom length.

Available Opposite End


Common Termination

UK power cord Rewireable Plug is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


IEC 60320 Connectors

UK power cord Rewireable Plug to IEC 320 C5 laptop Power Cord, IEC C13 computer power cable and molded with IEC C19 as PDU power cords are normal versions of  United Kingdom ac power cords with IEC connectors.

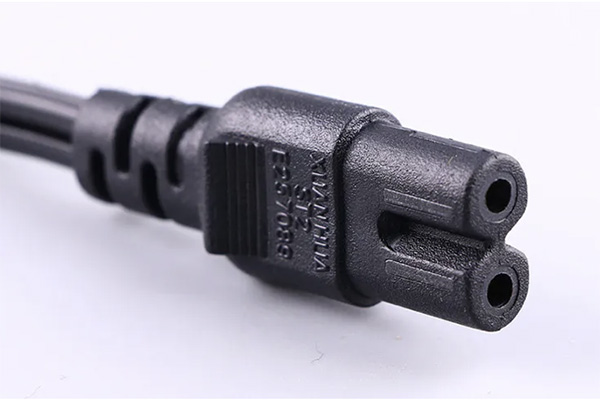

IEC 60320 C7 Power Cord

IEC 60320 C7 Power Cord

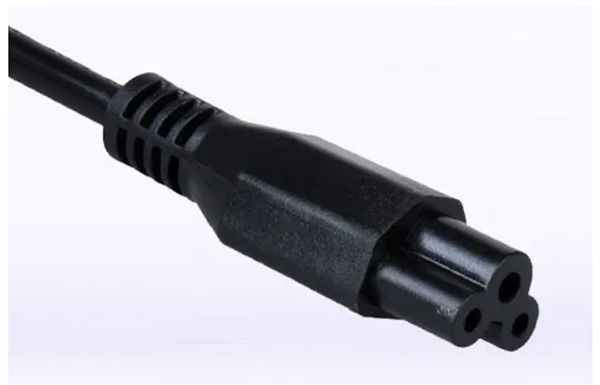

IEC 60320 C5 Power Cord

IEC 60320 C5 Power Cord

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Locking Power Cord

IEC 60320 C13 Locking Power Cord

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord


Package

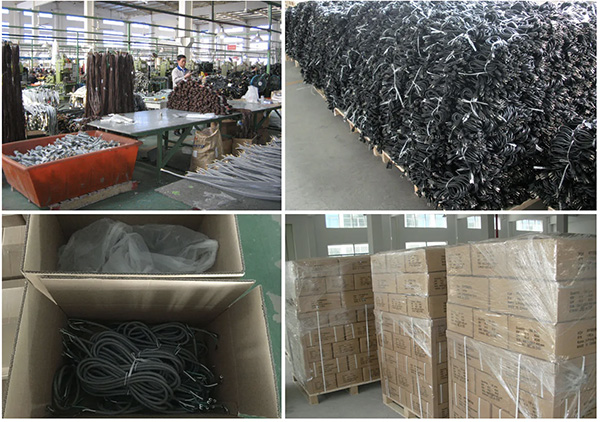

UK power cord rewireable plug mostly bulk packed with export cartons, pallets.
Package
Yunhuan manufacturers and supplies electrical AC power supply cords for use in the UK and all Countries in the world. Our extensive and complete UK power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for the United Kingdom AC power cords as leading power cord manufacturer and supplier.all of  UK power supply cords are approved by BSI, VDE with Rohs, and Reach compliant.
