AC Power Cord > Power Cord > America Power Cords > NEMA 5-15P 15A 125V Straight Plug Power Cord

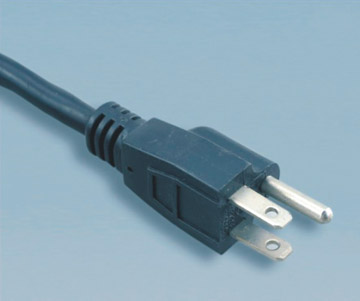

NEMA-5-15P-Straight-Plug-Power-Cord
  • NEMA 5-15P 15A 125V Straight Plug Power Cord

  • NEMA 5-15P America three prong power cord plug with UL CSA certification Rated up to 15A 125V Built to UL CSA standards and designed for standard 3 prong North America household applications, With IEC C5 , With IEC C13 , With IEC C15 , With IEC C19 describe American 15A plug molded with IEC 60320 international power connectors.Our America power cables are fully molded with high quality and RoHS / REACH environment compliant.

  • Contact Us
Detailed description

Connector Standard America 3P 5-15 plug

Maximum Current rating

15A
Maximum Voltage 125V
Number of Poles and Wires 2 poles, 3 wires
Outer Mold Material 60P PVC
Blade Material Nickel coated Brass
Flamability Rating UL 94V-0
Color Any color available
Cable length Any length available
Temperature Rating minus 40C though plus 75C
Approvals UL CSA
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity


Available Wire Styles


Cord Type Electrical Rating (Amps/Volts)
18/3 SJTW/SJTOW/SJTOOW STW/STOW/STOOW SPT-2
SJT/SJTO/SJTOO ST/STO/STOO SPT-3 HPN
16/3 SJTW/SJTOW/SJTOOW STW/STOW/STOOW SPT-2
SJT/SJTO/SJTOO ST/STO/STOO SPT-3 HPN
14/3 SJTW/SJTOW/SJTOOW STW/STOW/STOOW SPT-3
SJT/SJTO/SJTOO ST/STO/STOO HPN

15/125


Available Opposite End Connectors


Standard                              Part No


IEC 60320 C13                     ST3,(IEC C13)America


IEC 60320 C5                       ST1,(IEC C5)America


IEC 60320 C19                     XH008,(IEC C19)America


IEC 60320 C13(right angle) ST3W,(IEC C13 right angle)America


IEC 60320 C15                    ST3H(IEC C15)America


YY-3 receptacle                    YY-3Z(NEMA 5-15R)America


Other Termination Options


Click Here

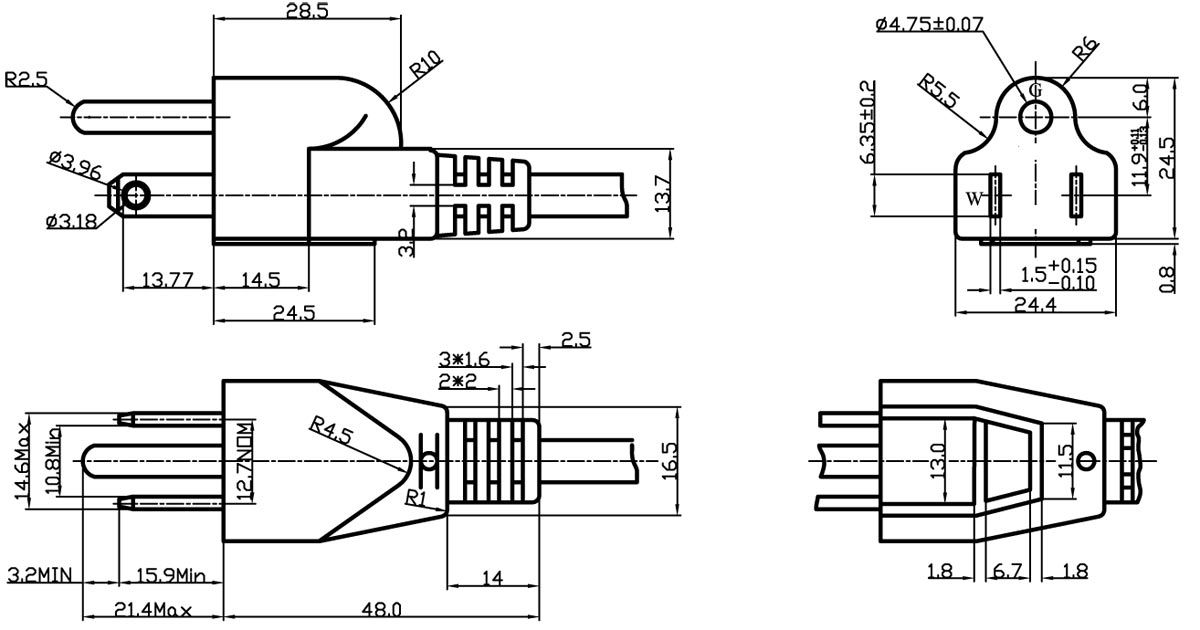

America 5-15P Plug Power Cord Drawing

America Plug 5-15P Power Cord


USA Power Cord (US Power Cord) NEMA 5-15P America UL Canada cUL Certified AC Power Supply Cord Plug Cable

USA Power Cord (US Power Cord) NEMA 5-15P

Plug type: US 3 prong grounded plug
Standard:NEMA 5-15P
Approvals:UL, cUL
Electricity:15A, 125V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:ROJ, Termination, IEC 320 C5, C13,C15,C19
Quality System:ISO9001:2008
Color:White and black are normal,Custom color
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:YY-3,JM-3,JY-15
Plug Standard America NEMA 5-15P plug Maximum Electric Current rating 15A Maximum Voltage 125V Number of Poles and Wires 2 poles, 3 wires Grounded Type B Plug, Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5,  C-15, Unterminated.

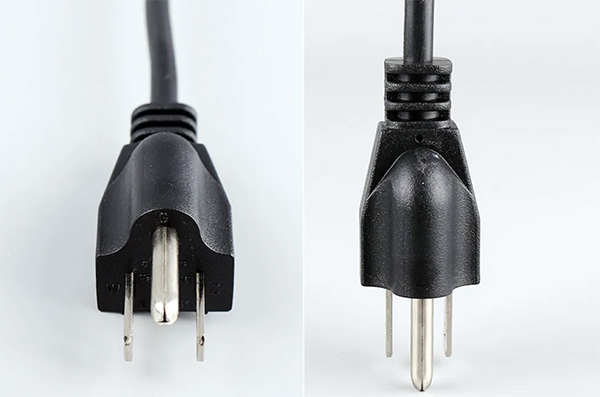

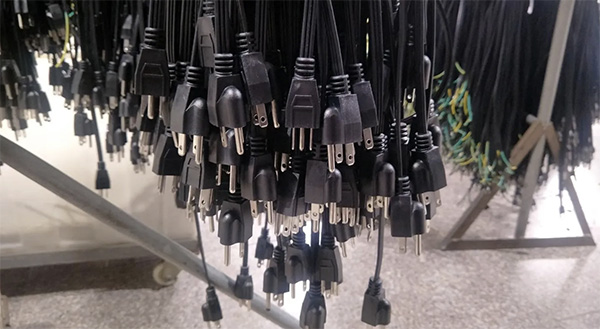

NEMA5-15P Plug

USA Power Cord

USA NEMA5-15P Power Cord

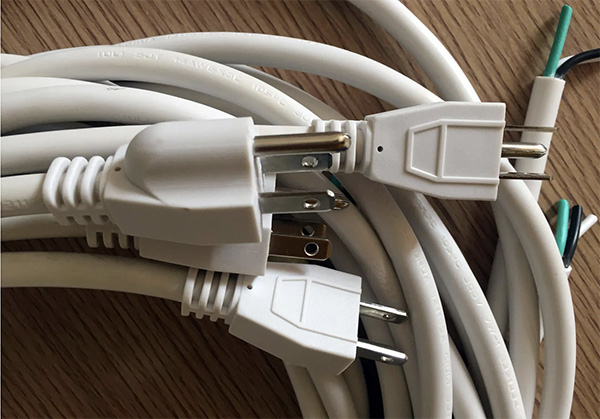

USA Power Cord NEMA 5-15P are black and white as a standard color. gray and custom color are available. Custom length and shielded America power cord heavy duty, AC power cables available. Terminated, custom stripping.

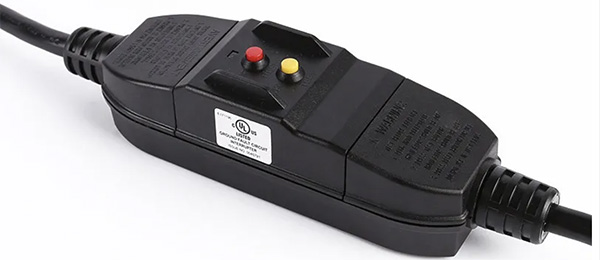

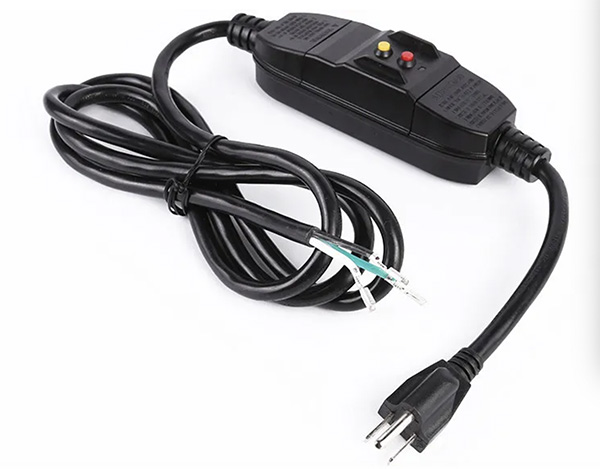

GFCI Cord Replacement Inline Style

GFCI Spa Power Cord features an unobstructed in-line GFCI, instead of a bulky right-angle design. Much easier to plug into covered outdoor outlets. Replacement cord for virtually any 120V hot tub, including Dream Maker, Belize, LifeCast, Durasport, Comfortline, Freeflow, Lifesmart, Intex, and many other spas.
GFCI online

GFCI with Power Cord

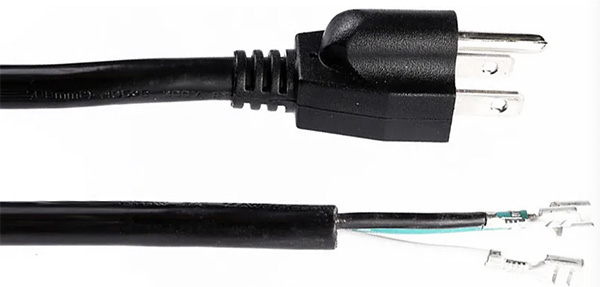

Available Opposite End

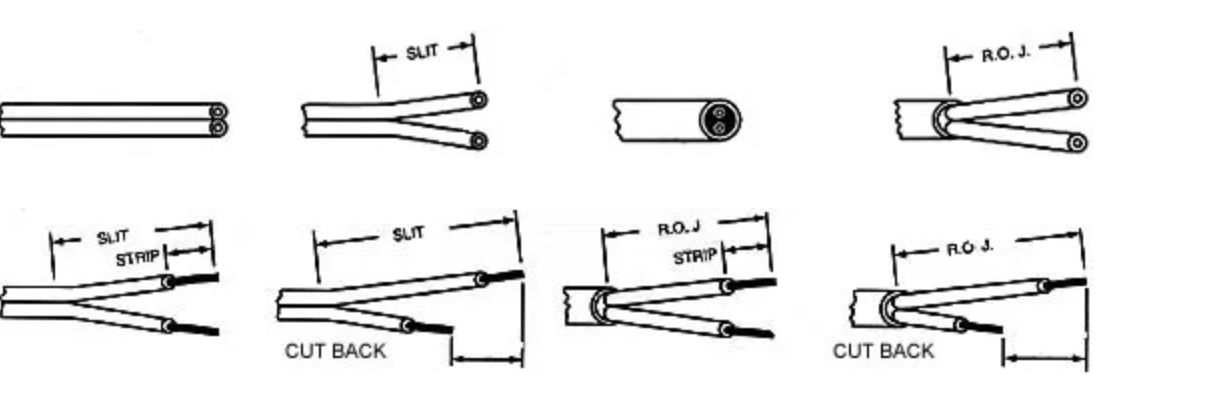

Normal Stripped, Splitter and ROJ

We manufacturers and supplies USA Power Cord NEMA 5-15P, custom color, the other end can be stripped, ROJ with custom length.
Available Opposite End

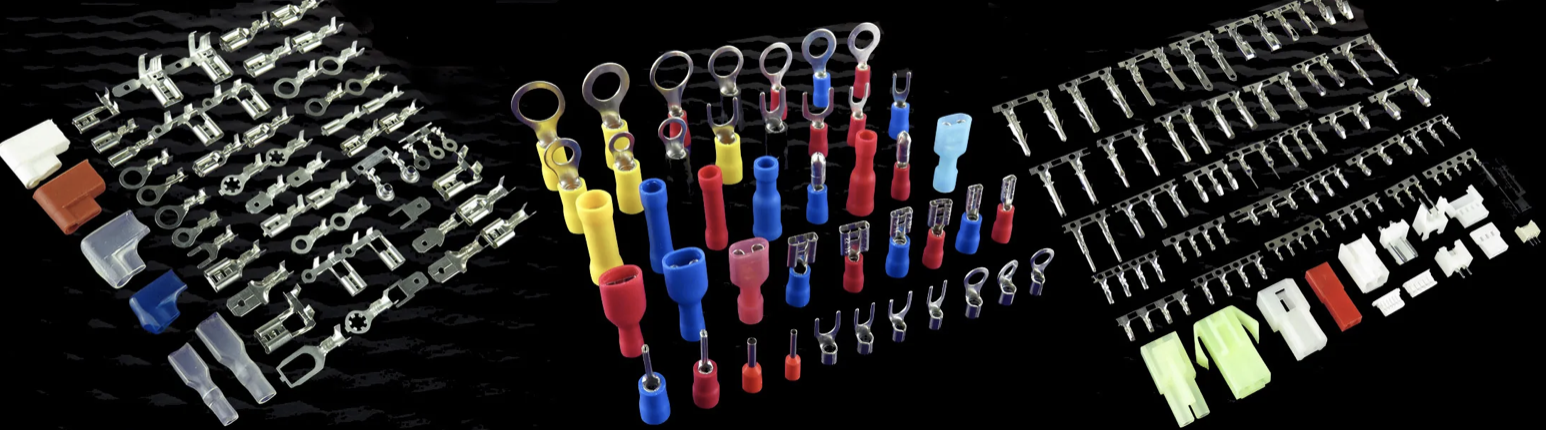

Common Termination

USA Power Cord NEMA 5-15P, one end is molded with NEMA  standard sheet plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.
America Power Supply Cord Common Termination

Termination with NEMA5-15P


IEC 60320 Connectors

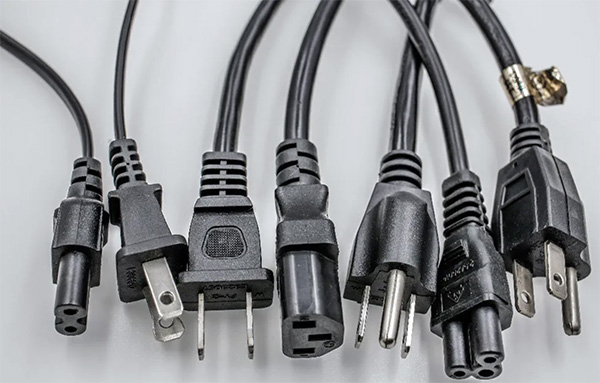

USA Power Cord NEMA 5-15P to IEC 320 C5 laptop, IEC C13 computer power cable and molded with IEC C19 as PDU power cords are normal versions of America ac power cords with IEC connectors.

American Power Cords with IEC 60320 connectors

American Power Cords with IEC 60320 connectors

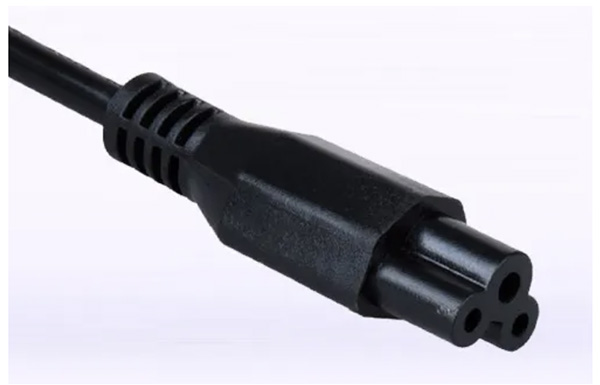

IEC 60320 C5 Power Cord

IEC 60320 C5 Power Cord

IEC 60320 C13 Power Cord Straight

IEC 60320 C13 Power Cord Straight

IEC 60320 C13 Power Cord Right Angle

IEC 60320 C13 Power Cord Right Angle

IEC 60320 C13 Power Cord Locking

IEC 60320 C13 Power Cord Locking

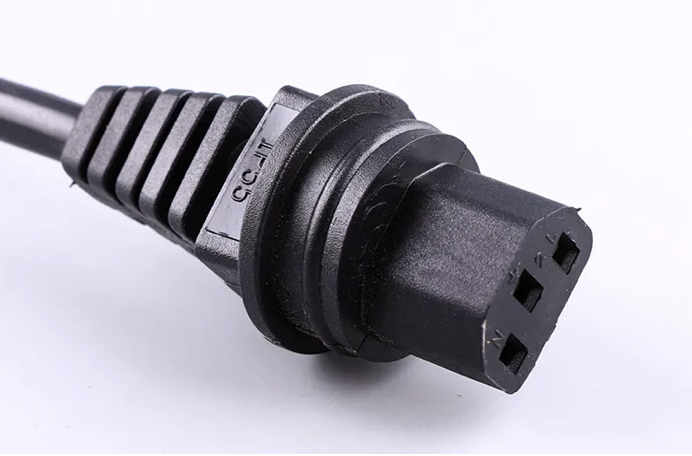

IEC 60320 C13 Power Cord Waterproof

IEC 60320 C13 Power Cord Waterproof

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord

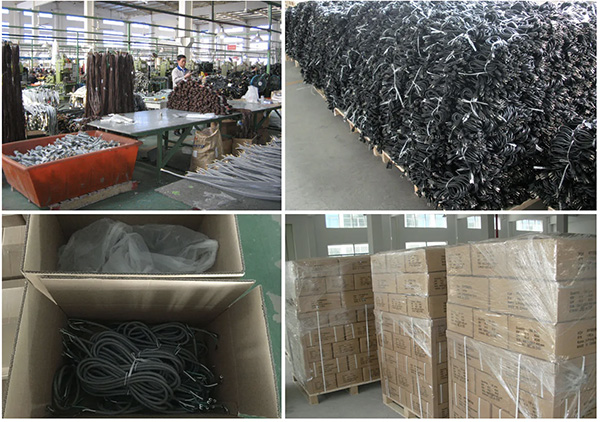

Package

USA Power Cord NEMA 5-15P Bulk packed with export cartons, pallets.
USA Power Cord NEMA5-15P Bulk Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in USA, Canada and all countries in the world. Our extensive and complete USA power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for North America power cords as China leading USA power cord manufacturer and supplier.all of US power cords are approved by UL, cUL with Rohs and Reach compliant.
